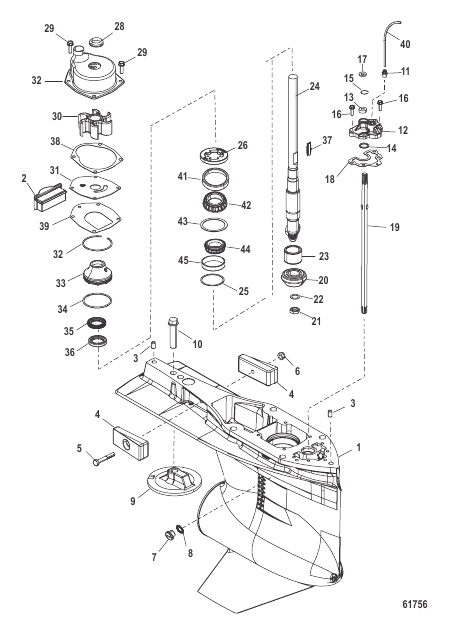

| # | Part Number | Description | Qty | Status |
|---|
| - |
842004T24 |
GEAR HOUSING ASSEMBLY XL, Complete (2.08:1)
|
1 |
superseded
|
| - |
842004T25 |
GEAR HOUSING ASSEMBLY CXL, Complete (2.08:1)
|
1 |
superseded
|
| - |
8M0138384 |
GEAR HOUSING ASSEMBLY L, Complete (2.08:1)
|
1 |
|
| - |
8M0138385 |
GEAR HOUSING ASSEMBLY CL, Complete (2.08:1)
|
1 |
|
| - |
842004T26 |
GEAR HOUSING ASSEMBLY XL, Complete (1.75:1)
|
1 |
superseded
|
| - |
842004T27 |
GEAR HOUSING ASSEMBLY CXL, Complete (1.75:1)
|
1 |
superseded
|
| - |
8M0143185 |
GEAR HOUSING ASSEMBLY XXL, Complete (2.08:1)
|
1 |
superseded
|
| - |
8M0143186 |
GEAR HOUSING ASSEMBLY CXXL, Complete (2.08:1)
|
1 |
|
| - |
830749A01 |
SEAL KIT Gear Housing
|
1 |
|
| - |
8M0100526 |
REPAIR KIT Water Impeller
|
1 |
|
| - |
817275A08 |
REPAIR KIT Water Pump-Upper
|
1 |
|
| 1 |
842004T29 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
806327 |
SCREW (.437-14 x 1.750)
|
1 |
superseded
|
| 11 |
881866 |
FITTING
|
1 |
|
| 12 |
8M0047129 |
COVER ASSEMBLY
|
1 |
|
| 13 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 14 |
896522 |
O-RING (799 x .103)
|
1 |
|
| 15 |
8M0046563 |
RING Retaining
|
1 |
|
| 16 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
4 |
superseded
|
| 17 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 18 |
880729 |
GASKET
|
1 |
|
| 19 |
824145 |
SHIFT SHAFT
|
1 |
|
| 2 |
8M0010459 |
FILLER BLOCK
|
1 |
|
| 20 |
NSS |
NOT SOLD SEPARATE Pinion Gear (ORD Gear Set on Propshaft Page)
|
1 |
|
| 21 |
35921 |
NUT (.625-18)
|
1 |
|
| 22 |
92721 |
WASHER (.965 x .630)
|
1 |
|
| 23 |
42647A1 |
BEARING ASSEMBLY Roller
|
1 |
|
| 24 |
895079T |
DRIVESHAFT Long
|
1 |
|
| 24 |
895080T |
DRIVESHAFT X-Long
|
1 |
|
| 24 |
895081T |
DRIVESHAFT XX-Long
|
1 |
|
| 25 |
8M0063268 |
SHIM SET
|
AR |
|
| 26 |
8245191 |
RETAINER
|
1 |
|
| 27 |
817275A09 |
HOUSING Water Pump-Complete
|
1 |
|
| 28 |
861415A1 |
SEAL KIT
|
1 |
|
| 29 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
4 |
superseded
|
| 3 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 30 |
43026T2 |
IMPELLER
|
1 |
|
| 31 |
8172761 |
FACEPLATE
|
1 |
superseded
|
| 32 |
880719 |
RING Retaining
|
1 |
|
| 33 |
8M0007131 |
CARRIER ASSEMBLY Oil Seal
|
1 |
|
| 34 |
896523 |
O-RING (2.175 x .103)
|
1 |
superseded
|
| 35 |
NSS |
NOT SOLD SEPARATE Oil Seal
|
1 |
|
| 36 |
NSS |
NOT SOLD SEPARATE Oil Seal
|
1 |
|
| 37 |
8M0032833 |
KEY
|
1 |
superseded
|
| 38 |
8172771 |
GASKET Water Pump, Upper
|
1 |
|
| 39 |
8M0050720 |
GASKET
|
1 |
superseded
|
| 4 |
826134Q |
ANODE
|
1 |
|
| 40 |
85944975 |
TUBING (72.00 Inches Bulk) (Cut to 12 Inches)
|
1 |
|
| 41 |
36387A1 |
BEARING ASSEMBLY Roller/Cup
|
1 |
superseded
|
| 42 |
NSS |
NOT SOLD SEPARATE CUP
|
1 |
|
| 43 |
8M0063267 |
SHIM SET
|
1 |
|
| 44 |
48939A2 |
BEARING Taper Roller
|
1 |
superseded
|
| 45 |
NSS |
NOT SOLD SEPARATE CUP
|
1 |
|
| 5 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 6 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 7 |
79953A04 |
PLUG ASSEMBLY (.375-16 x .250)
|
1 |
|
| 8 |
830749 |
SEAL
|
1 |
superseded
|
| 9 |
76214T5 |
ANODE KIT (Mercury)
|
1 |
|
| 9 |
76214A6 |
ANODE KIT (Magnesium)
|
1 |
|
| 9 |
76214Q5 |
ANODE KIT (Quicksilver)
|
1 |
|
