| # | Part Number | Description | Qty | Status |
|---|
| 1 |
832938A06 |

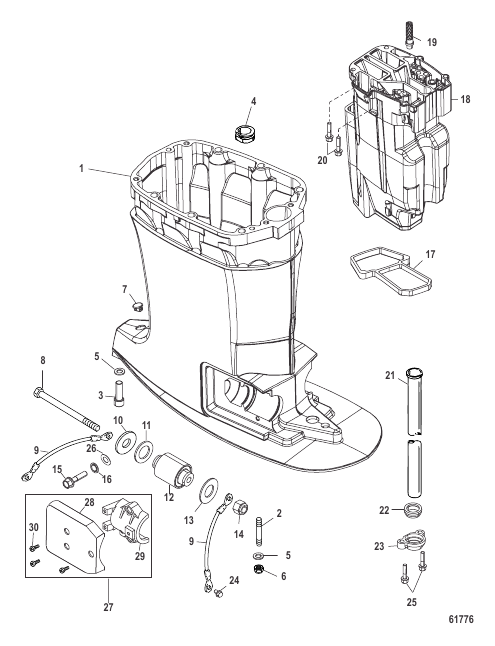

HOUSING ASSEMBLY Driveshaft - X/XX-Long
|
1 |
|
| 10 |
815432 |
WASHER (.562 x 2.00 x .125)
|
2 |
|
| 11 |
8154331 |
WASHER (1.25 x 2.00 x .19)
|
2 |
|
| 12 |
8137711 |
MOUNT
|
2 |
|
| 13 |
825190 |
WASHER
|
2 |
|
| 14 |
896602 |
NUT (M14)
|
2 |
|
| 15 |
8M0084475 |
SCREW (M8 x 40)
|
4 |
|
| 16 |
72521 |
LOCKWASHER Internal Tooth
|
1 |
|
| 17 |
8329321 |
SEAL
|
1 |
|
| 18 |
833116A19 |
TUBE ASSEMBLY Exhaust
|
1 |
|
| 19 |
8M0026113 |
STRAINER
|
1 |
|
| 2 |
8M0070951 |
STUD (M12 x 1.75 x 52)
|
4 |
|
| 20 |
81893435 |
SCREW (M8 x 35)
|
4 |
|
| 21 |
8M0042786 |
TUBE Water
|
1 |
|
| 22 |
832940001 |
SEAL
|
1 |
|
| 23 |
8329391 |
CLAMP
|
1 |
|
| 24 |
41508 |
SCREW (.250-20 x .500) Stainless Steel
|
1 |
|
| 25 |
81893435 |
SCREW (M8 x 35)
|
2 |
|
| 26 |
847541 |
WASHER
|
4 |
|
| 27 |
879150A90 |
COVER KIT Lower Mount
|
2 |
|
| 28 |
8M4501006 |
COVER Lower Mount
|
2 |
superseded
|
| 29 |
8M4501003 |
CLAMP
|
2 |
|
| 3 |
892860 |
SCREW (M12 x 35) Internal Hex
|
1 |
|
| 3 |
857136 |
SCREW (M12 x 35 MM) External Hex
|
1 |
|
| 30 |
69079 |
SCREW (#10-16 x .440)
|
6 |
|
| 4 |
8331231 |
GROMMET
|
1 |
|
| 5 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
4 |
|
| 6 |
896895 |
NUT (M12)
|
4 |
|
| 7 |
64649 |
PLUG
|
1 |
|
| 8 |
898834 |
BOLT (M14 x 178)
|
2 |
|
| 9 |
88238A10 |
CABLE ASSEMBLY Ground
|
2 |
|
