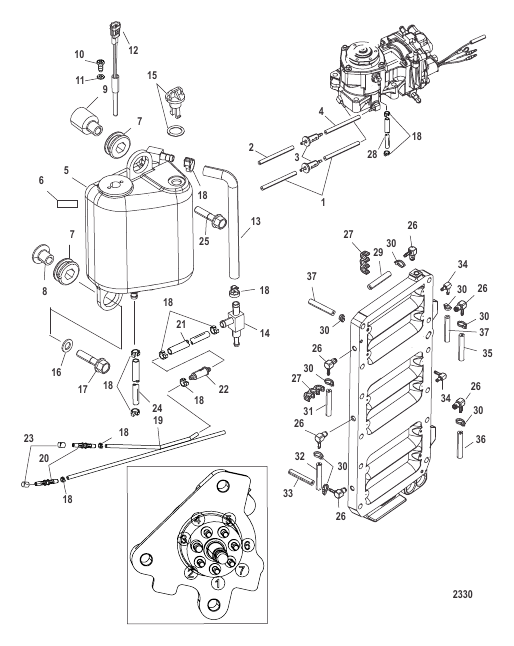

Oiling System
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 11.50 Inches) TUBING (39.00 Inches Bulk) (Cut to 11.50 Inches) |
2 | |
| 10 | 58376 |
ВИНТ (0.164-18 x 0.375) SCREW (.164-18 x .375) |
1 | |
| 11 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь WASHER (.203 x .562 x .060) Stainless Steel |
1 | |
| 12 | 856156T04 |
ПЕРЕКЛЮЧАТЕЛЬ SWITCH |
1 | |
| 13 | 885553 |
РУКАВ HOSE |
1 | |
| 14 | 424254 |
ФИТИНГ FITTING |
1 | superseded |
| 15 | 887609 |
ПРОБКА PLUG |
1 | |
| 16 | 4002318 |
ШАЙБА WASHER 8.90 x 24.0x 2.4 PL SS |
3 | |
| 17 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
2 | |
| 18 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 19 | 8752891 |
РУКАВ HOSE |
1 | |
| 2 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 5 Inches) TUBING (39.00 Inches Bulk) (Cut to 5 Inches) |
1 | |
| 20 | 858955 |
СОЕДИНИТЕЛЬ CONNECTOR |
2 | |
| 21 | 875283 |
РУКАВ (2.00") HOSE (2.00 Inches) |
1 | |
| 22 | 875284T01 |
ФИЛЬТР Масляный – проходной FILTER Oil - In Line |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Plug NOT SOLD SEPARATE Plug |
2 | |
| 24 | 892830053 |
РУКАВ (24.00", в оплетке) (Cut to 22 Inches) HOSE (24.00 Inches Braided) (Cut to 22 Inches) |
1 | |
| 25 | 81893460 |
ВИНТ (M8 x 60) SCREW (M8 x 60) |
1 | |
| 26 | 858870 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
6 | |
| 27 | 859230T |
ФИКСАТОР RETAINER |
2 | |
| 28 | 8M0054213 |
РУКАВ (Cut to 34 Inches) HOSE (Cut to 34 Inches) |
1 | |
| 29 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 19.50 Inches) TUBING (39.00 Inches Bulk) (Cut to 19.50 Inches) |
1 | |
| 3 | 8M0042285 |
ФИЛЬТР FILTER |
2 | superseded |
| 30 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 31 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 11 Inches) TUBING (39.00 Inches Bulk) (Cut to 11 Inches) |
1 | |
| 32 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 6 Inches) TUBING (39.00 Inches Bulk) (Cut to 6 Inches) |
1 | |
| 33 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 4 Inches) TUBING (39.00 Inches Bulk) (Cut to 4 Inches) |
1 | |
| 34 | 883988 |
КОЛЕНЧАТЫЙ ELBOW |
2 | |
| 35 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 22 Inches) TUBING (39.00 Inches Bulk) (Cut to 22 Inches) |
1 | |
| 36 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 16.50 Inches) TUBING (39.00 Inches Bulk) (Cut to 16.50 Inches) |
1 | |
| 37 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 7 Inches) TUBING (39.00 Inches Bulk) (Cut to 7 Inches) |
2 | |
| 4 | 8M0054152 |
ТРУБОПРОВОД (Общая длина 39.00") (Cut to 9 Inches) TUBING (39.00 Inches Bulk) (Cut to 9 Inches) |
1 | |
| 5 | 8M0064075 |
БАК Масло TANK Oil |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Reservoir NOT SOLD SEPARATE Decal-Reservoir |
1 | |
| 7 | 855362001 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | |
| 8 | 855364 |
ВТУЛКА BUSHING |
2 | |
| 9 | 883050 |
ПРОСТАВКА SPACER |
1 |
