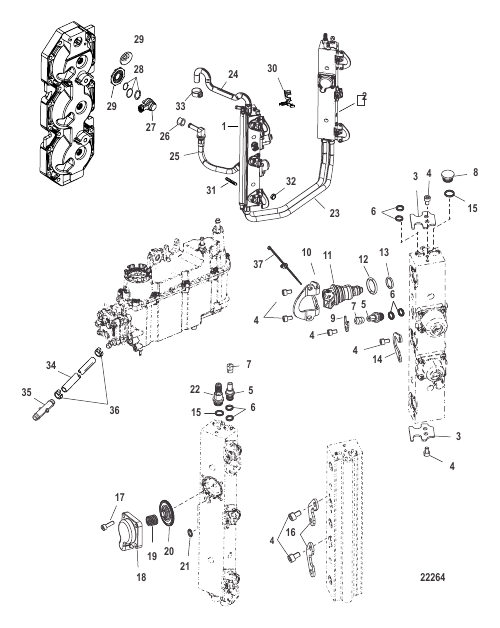

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0120809 |
FUEL RAIL ASSEMBLY Complete
|
1 |
superseded
|
| - |
8M6002988 |
DIAPHRAM KIT For Fuel and Air Regulator Kits
|
2 |
|
| - |
8M6002989 |
FUEL REGULATOR KIT 15 PSI
|
1 |
|
| - |
8M6002990 |
FUEL REGULATOR KIT 10 PSI
|
1 |
|
| - |
8M6002991 |
AIR REGULATOR KIT
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE Fuel Rail (Port)
|
1 |
|
| 10 |
8048311 |
CLAMP
|
4 |
disc.
|
| 11 |
804841 |
INJECTOR
|
6 |
|
| 12 |
804530 |
O-RING KIT Contains 6 pcs
|
1 |
|
| 13 |
804529 |
O-RING KIT Contains 6 pcs
|
1 |
|
| 14 |
804522 |
CLAMP
|
2 |
disc.
|
| 15 |
804532 |
O-RING KIT (16 per Kit)
|
1 |
|
| 16 |
804832 |
CLAMP
|
2 |
|
| 17 |
804526 |
SCREW PACKAGE (M5 x 16) (2 Per)
|
4 |
|
| 18 |
804535001 |
COVER
|
1 |
|
| 19 |
804534001 |
SPRING
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Fuel Rail (Starboard)
|
1 |
|
| 20 |
804533 |
DIAPHRAGM ASSEMBLY
|
1 |
|
| 21 |
804536 |
O-RING
|
1 |
|
| 22 |
804836 |
FITTING
|
1 |
|
| 23 |
8M6001364 |
HOSE ASSEMBLY Fuel Balance
|
2 |
superseded
|
| 24 |
8M6003283 |
HOSE Fuel Supply
|
1 |
|
| 25 |
8M6001363 |
HOSE ASSEMBLY
|
1 |
superseded
|
| 26 |
888852 |
SEAL Fuel Director
|
1 |
|
| 27 |
8M6001743 |
INJECTOR ASSEMBLY Air
|
6 |
|
| 28 |
804875 |
SEAL KIT
|
1 |
|
| 29 |
859404002 |
WASHER Injection
|
6 |
|
| 3 |
804830 |
CLAMP
|
4 |
|
| 30 |
828791 |
CLIP
|
4 |
|
| 31 |
8M0063255 |
STUD M10x92
|
4 |
|
| 32 |
826292 |
NUT (M10) Brass/Nickel Plated
|
4 |
|
| 33 |
856880 |
CLAMP Hose (15.3)
|
1 |
superseded
|
| 34 |
8M0043979 |
HOSE AND SLEEVE ASSEMBLY
|
1 |
|
| 35 |
822769 |
CONNECTOR
|
1 |
|
| 36 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 37 |
899145 |
CLIP Tie Strap
|
4 |
|
| 4 |
804525001 |
SCREW PACKAGE (2 Per)(M5 x 10)
|
11 |
disc.
|
| 5 |
8M0047053 |
VALVE KIT Shrader
|
2 |
|
| 6 |
804840 |
O-RING KIT
|
1 |
|
| 7 |
805515 |
CAP Shrader Valve - Brass
|
2 |
disc.
|
| 8 |
804835 |
PLUG
|
1 |
|
| 9 |
880816 |
CLAMP
|
1 |
superseded
|
| NS |
804840 |
O-RING KIT
|
1 |
|
