| # | Part Number | Description | Qty | Status |
|---|
| - |
879150A88 |

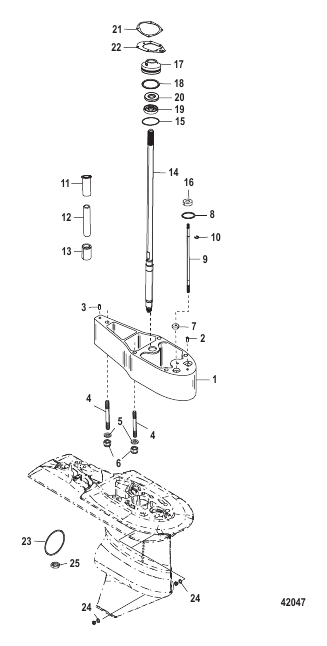

EXTENSION KIT Driveshaft -2.5 Inch
|
1 |
|
| - |
879345036 |
INSTRUCTION SHEET Extension Kit
|
1 |
|
| 1 |
816696T5 |
SPACER
|
1 |
|
| 10 |
29641 |
E RING
|
1 |
|
| 11 |
893857 |
COUPLER
|
1 |
superseded
|
| 12 |
8289372 |
TUBE Water
|
1 |
|
| 13 |
430232 |
SEAL
|
1 |
|
| 14 |
880184 |
DRIVESHAFT
|
1 |
|
| 15 |
8M0063262 |
SHIM SET
|
1 |
|
| 16 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 17 |
812966A7 |
BASE ASSEMBLY Water Pump
|
1 |
|
| 18 |
30224 |
O-RING (1.859 x .139)
|
1 |
superseded
|
| 19 |
814669 |
SEAL Oil
|
1 |
|
| 2 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
| 20 |
814670 |
SEAL Oil
|
1 |
|
| 21 |
822189 |
GASKET Upper Water Pump
|
1 |
|
| 22 |
8M4502052 |
GASKET Lower
|
1 |
superseded
|
| 23 |
815460 |
O-RING
|
1 |
|
| 24 |
830749 |
SEAL
|
3 |
superseded
|
| 25 |
559101 |
NUT Pinion Gear
|
1 |
|
| 3 |
8M0084244 |
PIN Dowel, .375 x .620
|
1 |
|
| 4 |
8M0034425 |
STUD (M10 x 120)
|
5 |
|
| 5 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
5 |
superseded
|
| 6 |
40140 |
NUT (M10)
|
5 |
|
| 7 |
813745 |
SPACER
|
1 |
|
| 8 |
45258 |
O-RING (.987 x .103)
|
1 |
|
| 9 |
879172A39 |
SHIFT SHAFT ASSEMBLY
|
1 |
|
