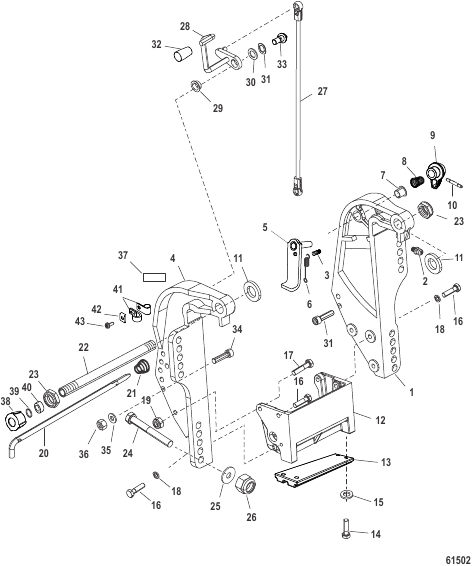

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 822866T04 |
КРОНШТЕЙН Транец – левый борт BRACKET Transom - Port |
1 | |
| 10 | 8M0021914 |
ШТИФТ (0.125 x 30 мм) PIN (.125 x 30 mm) |
1 | |
| 11 | 19619 |
ШАЙБА WASHER |
2 | |
| 12 | 18486A08 |
КОМПЛЕКТ КРОНШТЕЙНА Анкер BRACKET KIT Anchor |
1 | |
| 13 | 818298Q1 |
КОМПЛЕКТ АНОДОВ ANODE KIT |
1 | |
| 14 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 15 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 16 | 85594030 |
ВИНТ (M8 x 30) Included with Anchor Bracket Kit SCREW (M8 x 30) Included with Anchor Bracket Kit |
5 | |
| 17 | 8M0000586 |
ВИНТ (M8 x 35) Included with Anchor Bracket Kit SCREW (M8 x 35) Included with Anchor Bracket Kit |
1 | |
| 18 | 8M0109650 |
ШАЙБА (0.33 X 0.56 X 0.06) Included with Anchor Bracket Kit WASHER (.33 X .56 X .06) Included with Anchor Bracket Kit |
4 | |
| 19 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
2 | |
| 2 | 98727 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 20 | 8M0026068 |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона Non Power Trim PIN ASSEMBLY Tilt Lock Non Power Trim |
1 | |
| 21 | 821461 |
ПРУЖИНА Non Power Trim SPRING Non Power Trim |
1 | |
| 22 | 8M0041938 |
ТРУБА НАКЛОНА TILT TUBE |
1 | |
| 23 | 858869 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | |
| 24 | 814259 |
ВИНТ (0.500-20 x 4.00) SCREW (.500-20 x 4.00) |
4 | |
| 25 | 8M0109675 |
ШАЙБА (0.516 X 1.5 X 0.12) WASHER (.516 X 1.5 X .12) |
4 | |
| 26 | 82671117 | NUT (.500-20) | 4 | |
| 27 | 1938525 |
СОЕДИНИТЕЛЬ Non Power Trim LINK Non Power Trim |
1 | superseded |
| 28 | 19615A05 |
РЫЧАГ В СБОРЕ Наклон Non Power Trim LEVER ASSEMBLY Tilt Non Power Trim |
1 | |
| 29 | 812707 |
ВТУЛКА Non Power Trim BUSHING Non Power Trim |
1 | |
| 3 | 99604 |
ШТИФТ Желоб PIN Groove |
1 | |
| 30 | 8M0042643 |
ШАЙБА (0.520 x 0.850 x 0.060), нейлон, черный Non Power Trim WASHER (.520 x .850 x .060) Nylon, Black Non Power Trim |
1 | |
| 31 | 99611 |
ВОЛНИСТАЯ ШАЙБА Non Power Trim WAVE WASHER Non Power Trim |
1 | |
| 32 | 8M0007469 |
РУЧКА Наклон Non Power Trim KNOB Tilt Non Power Trim |
1 | |
| 33 | 19611 |
ВИНТ (0.375-16 x 0.62) Non Power Trim SCREW (.375-16 x .62) Non Power Trim |
1 | |
| 34 | 4009040 |
ВИНТ (M10 x 40), нержавеющая сталь SCREW (M10 x 40) Stainless Steel |
2 | |
| 35 | 4002319 |
ШАЙБА WASHER |
2 | |
| 36 | 40140 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 37 | 830253 |
НАКЛЕЙКА Штифт запирания наклона Non Power Trim DECAL Tilt Lock Non Power Trim |
1 | |
| 38 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Non Power Trim SEAL KIT Non Power Trim |
1 | |
| 39 | 26919 |
LINE Fuel Non Handle LINE Fuel Non Handle |
1 | disc. |
| 4 | 822865T05 |
КРОНШТЕЙН Транец – правый борт BRACKET Transom - Starboard |
1 | |
| 40 | 78861 |
ПРОСТАВКА Non Handle SPACER Non Handle |
1 | |
| 41 | 22740 |
ЗАЖИМ Power Trim CLIP Power Trim |
2 | |
| 42 | 8M0084613 |
С-ОБРАЗНАЯ ШАЙБА Power Trim C-WASHER Power Trim |
1 | |
| 43 | 878609 |
ВИНТ (№10-16 x 0.600) Power Trim SCREW (#10-16 x .600) Power Trim |
1 | |
| 5 | 893704T01 |
РЫЧАГ Штифт запирания наклона LEVER Tilt Lock |
1 | |
| 6 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 7 | 65830 |
NYLINER NYLINER |
1 | |
| 8 | 812708 |
ПРУЖИНА SPRING |
1 | |
| 9 | 8M0007470 |
РУЧКА KNOB |
1 |
