| # | Part Number | Description | Qty | Status |
|---|
| - |
889246A37 |

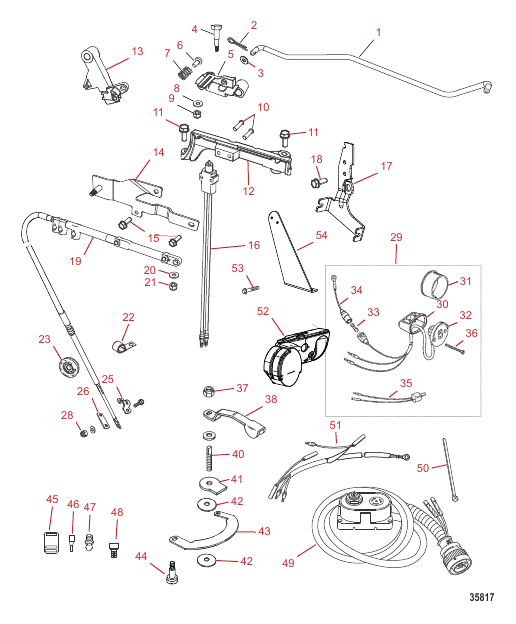

CONVERSION KIT Tiller Handle - Electric Remote Control to Electric Handle
|
1 |
disc.
|
| 1 |
8M0005914 |
ROD Shift
|
1 |
|
| 10 |
69570 |
SCREW (#10-16 x .750)
|
2 |
|
| 11 |
82130020 |
SCREW (M6 x 20)
|
2 |
|
| 12 |
898289T33 |
BRACKET
|
1 |
|
| 13 |
898289T36 |
LEVER
|
1 |
|
| 14 |
898289T34 |
BRACKET
|
1 |
|
| 15 |
1993716 |
SCREW (M6 x 16)
|
3 |
|
| 16 |
8M0021265 |
SWITCH ASSEMBLY
|
1 |
superseded
|
| 17 |
830294T3 |
BRACKET
|
1 |
|
| 18 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
1 |
superseded
|
| 19 |
897978A03 |
CABLE ASSEMBLY Throttle/Shift
|
1 |
superseded
|
| 2 |
210711 |
COTTER PIN
|
1 |
|
| 20 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
1 |
|
| 21 |
401366 |
NUT (M6) Stainless Steel
|
1 |
|
| 22 |
858951 |
J CLIP
|
1 |
|
| 23 |
8M0001537 |
GROMMET
|
1 |
|
| 24 |
4001987 |
SCREW (M4 x 16)
|
2 |
|
| 25 |
8M0009401 |
CLIP
|
1 |
|
| 26 |
8M0009400 |
CLIP
|
1 |
disc.
|
| 27 |
38833 |
WASHER
|
2 |
|
| 28 |
8M0000839 |
NUT (M4) Nylon Insert
|
2 |
|
| 29 |
18286A18 |
SWITCH KIT Trim (10.00 Feet)
|
1 |
|
| 3 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 30 |
18861 |
RETAINER
|
1 |
|
| 31 |
814820 |
ADAPTER
|
1 |
disc.
|
| 32 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 33 |
79091 |
FUSE 20 Ampere
|
1 |
superseded
|
| 34 |
95084A2 |
CABLE ASSEMBLY
|
1 |
|
| 35 |
11149A2 |
CABLE ASSEMBLY (6.00 Inches)
|
1 |
|
| 36 |
19209 |
SCREW (#10-32 x 2.25)
|
2 |
disc.
|
| 36 |
813523 |
SCREW (#10-16 x 2.25)
|
2 |
disc.
|
| 37 |
826709113 |
NUT (.375-24) Stainless Steel
|
1 |
superseded
|
| 38 |
823792 |
LEVER
|
1 |
|
| 39 |
29330 |
WASHER
|
1 |
|
| 4 |
8M0020425 |
PIN
|
1 |
|
| 40 |
821961 |
ROD
|
1 |
|
| 41 |
821957 |
BRAKE PLATE
|
1 |
|
| 42 |
8165621 |
DISC
|
2 |
|
| 43 |
8M0007471 |
PLATE Swivel Head
|
1 |
|
| 44 |
768042 |
SHOULDER SCREW Hex
|
2 |
|
| 45 |
8237011 |
DECAL Co-Pilot
|
1 |
|
| 46 |
13541 |
PLUG Male
|
2 |
|
| 47 |
74036 |
FITTING Grease
|
1 |
superseded
|
| 48 |
4008910 |
SCREW (M8 x 10) Stainless Steel
|
1 |
|
| 49 |
15000A14 |
KEY SWITCH KIT Remote Ignition
|
1 |
|
| 5 |
898289T35 |
SLIDE
|
1 |
superseded
|
| 50 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 51 |
852375A6 |
HARNESS ASSEMBLY Extension
|
1 |
|
| 52 |
8M0028682 |
GROMMET
|
1 |
superseded
|
| 53 |
88552535 |
SCREW (M6 x 35 MM) Stainless Steel
|
1 |
|
| 54 |
8M0034273 |
BRACKET
|
1 |
|
| 6 |
12016A2 |
DETENT/SPRING KIT
|
1 |
disc.
|
| 7 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 8 |
4002314 |
WASHER
|
1 |
|
| 9 |
401365 |
NUT (M5) Stainless Steel
|
1 |
|
