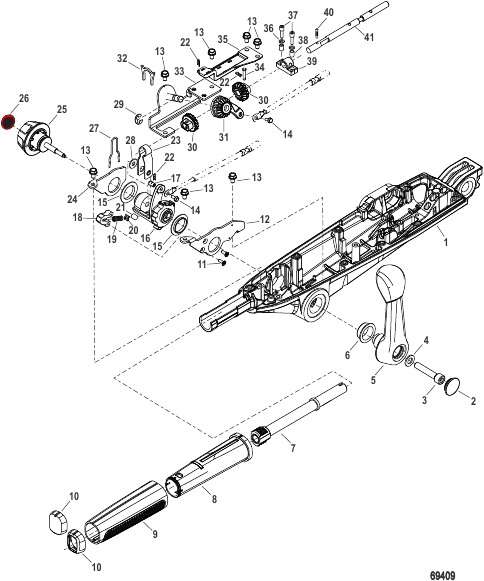

Tiller Handle Shift and Throttle Components (Mid Mount)
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0166001 |
GRIP ASSEMBLY GRIP ASSEMBLY |
1 | |
| 1 | 8M0161094 |
CHASSIS Tiller CHASSIS Tiller |
1 | |
| 10 | 8M0161124 |
BEZEL Power Trim Switch BEZEL Power Trim Switch |
1 | |
| 10 | 8M0161145 |
BEZEL No Power Trim Switch Sea Pro BEZEL No Power Trim Switch Sea Pro |
1 | |
| 11 | 8M0161104 |
SCREW (M4 x 0.7 x 12), SOC FLAT HD SCREW (M4 x 0.7 x 12), SOC FLAT HD |
2 | |
| 12 | 8M0161109 |
BRACKET Shift Mounting BRACKET Shift Mounting |
1 | |
| 13 | 8M0161113 |
SCREW M6X1.0X10 SCREW M6X1.0X10 |
7 | |
| 14 | 8M0085515 |
ВИНТ (№8 – 32 x 0.375) SCREW (#8 - 32 x .375) |
2 | |
| 15 | 8M0161111 |
FLANGE BUSHING FLANGE BUSHING |
2 | |
| 16 | 8M0161108 |
SHIFT LEVER SHIFT LEVER |
1 | |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО STUD NOT SOLD SEPARATE STUD |
1 | |
| 18 | 8M0161114 |
DETENT ASSEMBLY DETENT ASSEMBLY |
1 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SPRING NOT SOLD SEPARATE SPRING |
1 | |
| 2 | 8M0161107 |
COVER Shift Handle COVER Shift Handle |
1 | |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GUIDE NOT SOLD SEPARATE GUIDE |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО ROLLER NOT SOLD SEPARATE ROLLER |
1 | |
| 22 | 26811 |
ШПЛИНТ COTTER PIN |
3 | |
| 23 | 8M0161131 |
FRICTION CLAMP FRICTION CLAMP |
1 | |
| 24 | 8M0161112 |
BRACKET Shift Mounting BRACKET Shift Mounting |
1 | |
| 25 | 8M0161137 |
FRICTION KNOB FRICTION KNOB |
1 | |
| 26 | 8M0161138 |
DECAL Throttle Friction DECAL Throttle Friction |
1 | |
| 27 | 8M0161136 |
COTTER PIN COTTER PIN |
1 | |
| 28 | 4002316 |
ШАЙБА (6.60 X 17.0 X 1.5, нерж. сталь) WASHER (6.60 X 17.0 X 1.5SS) |
1 | superseded |
| 29 | 29641 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 3 | 8M0161106 |
SCREW SCREW |
1 | |
| 30 | 8M0161258 |
PINION PINION |
2 | |
| 31 | 8M0161139 |
THROTTLE GEAR ASSEMBLY THROTTLE GEAR ASSEMBLY |
1 | |
| 32 | 8M0161125 |
CLAMP CLAMP |
1 | |
| 33 | 8M0161130 |
THROTTLE BRACKET THROTTLE BRACKET |
1 | |
| 34 | 8M0161128 |
PIN Clevis PIN Clevis |
1 | |
| 35 | 8M0161115 |
BRACKET HARNESS BRACKET HARNESS |
1 | |
| 36 | 8M0161134 |
WASHER WASHER |
2 | |
| 37 | 8M0161135 |
SCREW M4x16 SCREW M4x16 |
2 | |
| 38 | 8M0161133 |
BUSHING BUSHING |
2 | |
| 39 | 8M0161132 |
PILLOW SUPPORT PILLOW SUPPORT |
1 | |
| 4 | 4002319 |
ШАЙБА WASHER |
1 | |
| 40 | 8M0161127 |
PIN Split Lock PIN Split Lock |
1 | |
| 41 | 8M0161129 |
THROTTLE SHAFT THROTTLE SHAFT |
1 | |
| 5 | 8M0161105 |
SHIFT HANDLE ASSEMBLY SHIFT HANDLE ASSEMBLY |
1 | |
| 6 | 8M0161110 |
FLANGE BUSHING FLANGE BUSHING |
1 | |
| 7 | 8M0161126 |
THROTTLE TUBE THROTTLE TUBE |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО INNER GRIP NOT SOLD SEPARATE INNER GRIP |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО OUTER GRIP NOT SOLD SEPARATE OUTER GRIP |
1 |
