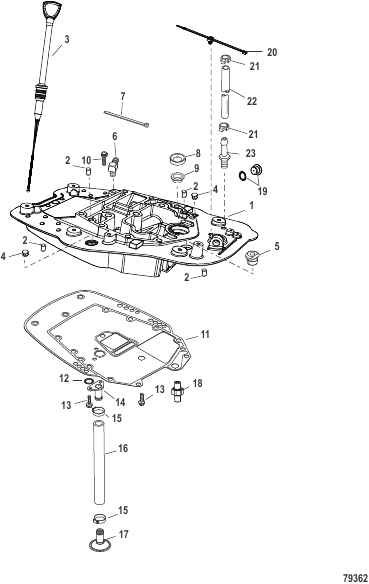

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0118182 | ADAPTER PLATE ASSEMBLY | 1 | |
| 10 | 4007455 | SCREW (M6 x 55) | 1 | |
| 11 | 892320001 | GASKET | 1 | superseded |
| 12 | 845746 | O-RING | 1 | |
| 13 | 8M4503518 | SCREW (M6 X 1.0 X 20) | 3 | superseded |
| 14 | 893765 | PLATE Top Oil Pickup | 1 | |
| 15 | 855228 | CLAMP | 2 | |
| 16 | 854793 | HOSE Oil Pickup | 1 | |
| 17 | 893700 | BAFFLE Oil Pick-up | 1 | |
| 18 | 881872A1 | BODY Oil Pressure Relief | 1 | superseded |
| 19 | 8M0021330 | PLUG (M18) | 1 | |
| 2 | 23784 | PIN Dowel | 4 | |
| 20 | 899145 | CLIP Tie Strap | 1 | |
| 21 | 816311T | TIE STRAP (8.00 Inches) | AR | |
| 22 | 8M0108355 | HOSE (57 Inches Bulk) Cut to 17 Inches | 1 | |
| 23 | 291112 | FITTING | 1 | |
| 3 | 8M0219158 | DIPSTICK Oil | 1 | |
| 4 | 822464 | PLUG | 2 | |
| 5 | 19565002 | GROMMET | 1 | |
| 6 | 629101 | FITTING Elbow - 90 Degree (.125-27) | 1 | |
| 7 | 816311T | TIE STRAP (8.00 Inches) | 3 | |
| 8 | 66301 | SEAL Oil | 1 | |
| 9 | 859594 | BUSHING | 1 |
