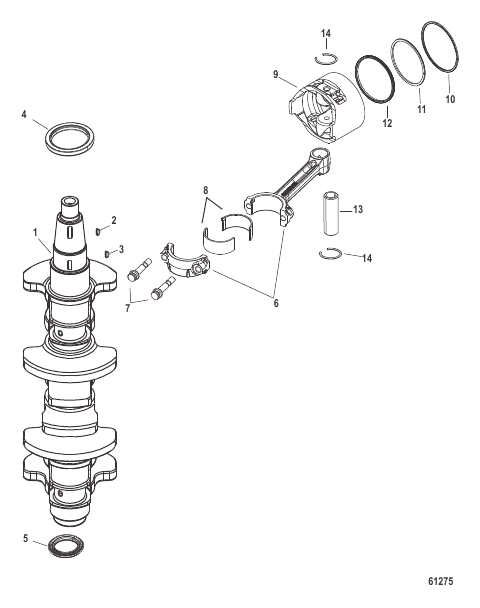

| # | Part Number | Description | Qty | Status |
|---|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| - |
893678T03 |
SHORT BLOCK (Does not inlcude cylinder head)
|
1 |
|
| 1 |
857077T02 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 10 |
893525A01 |
RING SET Piston Standard
|
4 |
|
| 10 |
893525A02 |
RING SET Piston .25MM Oversized
|
AR |
|
| 10 |
893525A03 |
RING SET Ring .50MM Oversized
|
AR |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring - Second Standard
|
4 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring - Second 25 MM Oversized
|
AR |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring - Second 50 MM Oversized
|
AR |
|
| 12 |
NSS |
NOT SOLD SEPARATE Ring, Piston Oil
|
4 |
|
| 13 |
893863 |
PIN Piston
|
4 |
|
| 14 |
893529 |
RETAINER Piston Pin
|
8 |
|
| 2 |
91800 |
KEY Woodruff
|
1 |
|
| 3 |
18856M |
KEY
|
1 |
superseded
|
| 4 |
893949 |
SEAL Oil
|
1 |
superseded
|
| 5 |
893948 |
SEAL Oil
|
1 |
superseded
|
| 6 |
893530T01 |
CONNECTING ROD ASSEMBLY
|
4 |
|
| 7 |
8M0049884 |
BOLT
|
8 |
|
| 8 |
893630001 |
BEARING Black
|
8/AR |
|
| 8 |
893630 |
BEARING Brown
|
8/AR |
|
| 8 |
893630002 |
BEARING Blue
|
8/AR |
|
| 9 |
893524T08 |
PISTON ASSEMBLY
|
4 |
|
| 9 |
8M0057775 |
PISTON ASSEMBLY .25MM Oversized/Bare Piston
|
AR |
|
| 9 |
8M0057776 |
PISTON ASSEMBLY .50MM Oversized/Bare Piston
|
AR |
|
