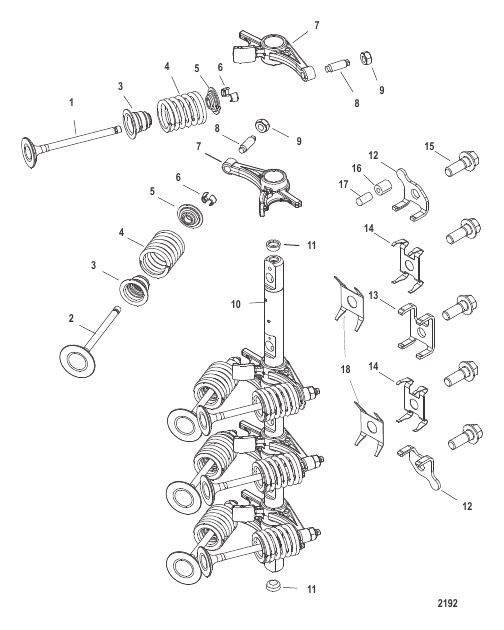

| # | Part Number | Description | Qty | Status |
|---|
| - |
893505T05 |
CYLINDER HEAD ASSEMBLY Complete
|
1 |
disc.
|
| - |
8M0118175 |
CYLINDER HEAD ASSEMBLY Complete SeaPro Only
|
1 |
superseded
|
| 1 |
8M0065029 |
VALVE Exhaust
|
4 |
|
| 10 |
8570851 |
SHAFT Rocker
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Plug
|
2 |
|
| 12 |
893560 |
BRACKET
|
2 |
|
| 13 |
893561 |
BRACKET
|
1 |
|
| 14 |
893562 |
SPRING
|
2 |
|
| 15 |
875218 |
SCREW (M8 x 23)
|
5 |
|
| 16 |
893645 |
GASKET
|
1 |
|
| 17 |
859575 |
PIN
|
1 |
|
| 18 |
893563 |
SPRING Overload
|
2 |
|
| 2 |
832990T3 |
VALVE Intake
|
4 |
|
| 3 |
858271 |
SEAL
|
8 |
|
| 4 |
893552 |
SPRING
|
8 |
|
| 5 |
893553 |
RETAINER
|
8 |
|
| 6 |
893554 |
KEY
|
16 |
|
| 7 |
898821A01 |
ROCKER ARM ASSEMBLY
|
8 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Screw
|
8 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Nut
|
8 |
|
