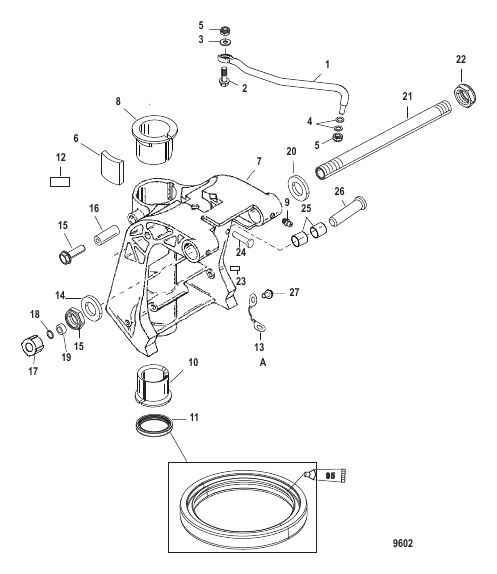

Swivel Bracket
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 19608A14 |
КОМПЛЕКТ КРЕПЕЖА Рулевой механизм двигателя (Non-Handle) ATTACHING KIT Engine Steering (Non-Handle) |
1 | |
| 10 | 821777 |
ВТУЛКА Lower BUSHING Lower |
1 | |
| 11 | 822404 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Serial Overlaminate NOT SOLD SEPARATE Decal-Serial Overlaminate |
1 | |
| 13 | 88238A11 |
КАБЕЛЬ В СБОРЕ (A = To Screw on Bottom Yoke) CABLE ASSEMBLY (A = To Screw on Bottom Yoke) |
1 | |
| 14 | 19619 |
ШАЙБА WASHER |
1 | |
| 15 | 4008910 |
ВИНТ (M8 x 10), нержавеющая сталь (Handle) SCREW (M8 x 10) Stainless Steel (Handle) |
1 | |
| 15 | 40011149 |
ВИНТ (M8 x 25), нержавеющая сталь (Non-Handle) SCREW (M8 x 25) Stainless Steel (Non-Handle) |
1 | |
| 16 | 8282451 |
УПЛОТНЕНИЕ (Non-Handle) SEAL (Non-Handle) |
1 | discontinued |
| 17 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ (Non-Handle) SEAL KIT (Non-Handle) |
1 | |
| 18 | 29619 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.583 x 0.103) (Non-Handle) O-RING (.583 x .103) (Non-Handle) |
1 | |
| 19 | 78861 |
ПРОСТАВКА (Non-Handle) SPACER (Non-Handle) |
1 | |
| 2 | 823919 |
ВИНТ (0.375-24 x 1.500) (Non-Handle) SCREW (.375-24 x 1.500) (Non-Handle) |
1 | |
| 20 | 19619 |
ШАЙБА WASHER |
1 | |
| 21 | 196141 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 22 | 858869 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | |
| 23 | 8237011 |
НАКЛЕЙКА Усилитель руля DECAL Co-Pilot |
1 | |
| 24 | 821539 |
ШТИФТ Трехгранный PIN Trilobe |
1 | |
| 25 | 823507 |
ВТУЛКА BUSHING |
2 | |
| 26 | 822480 |
ШТИФТ Шарнир Upper PIN Pivot Upper |
1 | |
| 27 | 878607 |
ВИНТ (№10-16 x 0.375) SCREW (#10-16 x .375) |
1 | |
| 3 | 71970 |
ШАЙБА (0.390 x 0.546 x 0.12) (Non-Handle) WASHER (.390 x .546 x .12) (Non-Handle) |
1 | superseded |
| 4 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь (Non-Handle) WASHER (.390 x .625 x .062) Stainless Steel (Non-Handle) |
2 | |
| 5 | 826709113 |
ГАЙКА (0.375-24), нержавеющая сталь (Non-Handle) NUT (.375-24) Stainless Steel (Non-Handle) |
1 | superseded |
| 5 | 8M0042636 |
ГАЙКА (0.375-24), латунь (Non-Handle) NUT (.375-24) Brass (Non-Handle) |
1 | superseded |
| 6 | 822397 |
ВЫНОСНАЯ АНТЕННА (Non-Handle) PUCK (Non-Handle) |
1 | |
| 7 | 827402T5 |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | |
| 8 | 8217711 |
ВТУЛКА Upper BUSHING Upper |
1 | |
| 9 | 74036 |
ФИТИНГ Смазка (Quanty of 4 on Handle Version) FITTING Grease (Quanty of 4 on Handle Version) |
3 | superseded |
