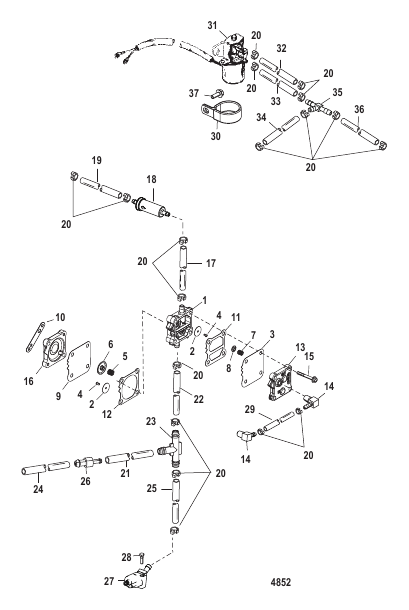

Fuel Pump (Electric)
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 14360A78 |
КОМПЛЕКТ НАСОСА Топливо PUMP KIT Fuel |
1 | |
| - | 852067T98 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | |
| - | 828553A97 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm Kit NOT SOLD SEPARATE Diaphragm Kit |
1 | |
| 10 | 987691 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Boost NOT SOLD SEPARATE Gasket-Boost |
1 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Pulse NOT SOLD SEPARATE Gasket-Pulse |
1 | |
| 13 | 987752 |
ПЛАСТИНА PLATE |
1 | |
| 14 | 43335 |
СОЕДИНИТЕЛЬ 90 градусов (0.125-27), нейлон (To Crankcase) CONNECTOR 90 Degree (.125-27) Nylon (To Crankcase) |
2 | superseded |
| 15 | 82104540 |
ВИНТ (M5 x 40) SCREW (M5 x 40) |
2 | |
| 15 | 82130050 |
ВИНТ (M6 x 50) SCREW (M6 x 50) |
2 | |
| 16 | 144303 |
БАЗА BASE |
1 | |
| 17 | 831949 |
РУКАВ HOSE |
1 | |
| 18 | 816296Q2 |
ФИЛЬТР Топливо FILTER Fuel |
1 | |
| 19 | 830761 |
ТРУБОПРОВОД Топливо (To Top Carburetor) LINE Fuel (To Top Carburetor) |
1 | |
| 2 | 857005A1 |
КОМПЛЕКТ ДИАФРАГМ DIAPHRAGM KIT |
2 | |
| 20 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 21 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 1.50 Inch Length) (40) TUBING (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length) (40) |
1 | superseded |
| 21 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 1.25 Inch Length) (50) TUBING (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length) (50) |
1 | superseded |
| 22 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 1.50 Inch Length) (40) TUBING (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length) (40) |
1 | superseded |
| 22 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 1.25 Inch Length) (50) TUBING (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length) (50) |
1 | superseded |
| 23 | 818992 |
СОЕДИНИТЕЛЬ (40) CONNECTOR (40) |
1 | |
| 23 | 818993 |
СОЕДИНИТЕЛЬ Тройник (50) CONNECTOR Tee (50) |
1 | |
| 24 | 82381335 |
ТРУБОПРОВОД (Общая длина 15.00") (Cut to 2.00 Inch Length) (40) (To Oil Pump Outlet) TUBING (15.00 Inches Bulk) (Cut to 2.00 Inch Length) (40) (To Oil Pump Outlet) |
1 | |
| 24 | 82381335 |
ТРУБОПРОВОД (Общая длина 15.00") (Cut to 1.50 Inch Length) (50) (To Oil Pump Outlet) TUBING (15.00 Inches Bulk) (Cut to 1.50 Inch Length) (50) (To Oil Pump Outlet) |
1 | |
| 25 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 22.00 Inch Length) TUBING (.312) (70.00 Inches Bulk) (Cut to 22.00 Inch Length) |
1 | superseded |
| 26 | 8189941 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 27 | 816856A1 |
СОЕДИНИТЕЛЬ В СБОРЕ Топливо CONNECTOR ASSEMBLY Fuel |
1 | superseded |
| 28 | 4000332 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
1 | |
| 29 | 9912878 |
РУКАВ (0.187) (общая длина 26.00") (Cut to 4.50 Inch Length) HOSE (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length) |
1 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm NOT SOLD SEPARATE Diaphragm |
1 | |
| 30 | 633003 |
ЗАЖИМ CLAMP |
1 | |
| 31 | 819503A5 |
КОМПЛЕКТ ЭЛЕКТРОМАГНИТА Клапан обогатителя SOLENOID KIT Enrichner Valve |
1 | |
| 32 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 8.00 Inch Length) (To Tee Fitting off of Electric Carburetor) TUBING (36.00 Inches Bulk) (Cut to 8.00 Inch Length) (To Tee Fitting off of Electric Carburetor) |
1 | |
| 33 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 4.00 Inch Length) TUBING (36.00 Inches Bulk) (Cut to 4.00 Inch Length) |
1 | |
| 34 | 892024122 |
ТРУБОПРОВОД (Общая длина 240.00") (Cut to 14.00 Inch Length) (To Oil Pump Fitting) TUBING (240.00 Inches Bulk) (Cut to 14.00 Inch Length) (To Oil Pump Fitting) |
1 | |
| 35 | 59169003 |
ФИТИНГ Тройник FITTING Tee |
1 | |
| 36 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 2.00 Inch Length) (To Intake Manifold Fitting) TUBING (36.00 Inches Bulk) (Cut to 2.00 Inch Length) (To Intake Manifold Fitting) |
1 | |
| 37 | 4006731 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Retainer NOT SOLD SEPARATE Retainer |
2 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap NOT SOLD SEPARATE Cap |
1 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap NOT SOLD SEPARATE Cap |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm NOT SOLD SEPARATE Diaphragm |
1 |
