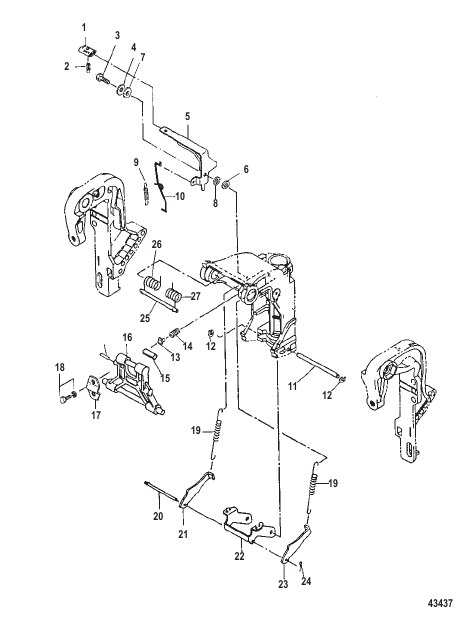

Manual Tilt Serial Number 0N096058 and Up
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|
| 1 |
853775 |
GRIP
|
1 |
superseded
|
| 10 |
804050 |
LINK
|
1 |
|
| 11 |
804046003 |
SHAFT Reverse Lock
|
1 |
|
| 12 |
160572 |
E RING
|
2 |
|
| 13 |
953832 |
SPRING
|
1 |
|
| 14 |
853774 |
STOP
|
1 |
|
| 15 |
8251131 |
BRACKET
|
1 |
|
| 16 |
825112008 |
STOPPER Tilt
|
1 |
superseded
|
| 17 |
162101 |
SET PLATE
|
1 |
superseded
|
| 18 |
823042052 |
BOLT
|
2 |
superseded
|
| 19 |
8040244 |
SPRING (Short)
|
2 |
|
| 19 |
8040245 |
SPRING (Long)(X-Long)
|
2 |
|
| 2 |
853776 |
BUTTON
|
1 |
superseded
|
| 20 |
804047 |
ROD Reverse Lock
|
1 |
|
| 21 |
804044 |
LOCK Reverse (Starboard)
|
1 |
|
| 22 |
804045004 |
ARM Reverse Lock
|
1 |
|
| 23 |
8040441 |
LOCK Reverse (Port)
|
1 |
|
| 24 |
8150261 |
COTTER PIN
|
1 |
|
| 25 |
804049001 |
SHAFT
|
1 |
|
| 26 |
804024009 |
SPRING
|
1 |
superseded
|
| 27 |
804024010 |
SPRING
|
1 |
superseded
|
| 3 |
803790001 |
BOLT Shoulder
|
1 |
|
| 4 |
16826 |
WASHER Stainless Steel
|
1 |
|
| 5 |
879288263 |
LEVER Tilt Stopper
|
1 |
|
| 6 |
895118002 |
WASHER
|
1 |
superseded
|
| 7 |
953925 |
WASHER
|
1 |
|
| 8 |
898103107 |
BUSHING
|
1 |
|
| 9 |
8040246 |
SPRING
|
1 |
|
