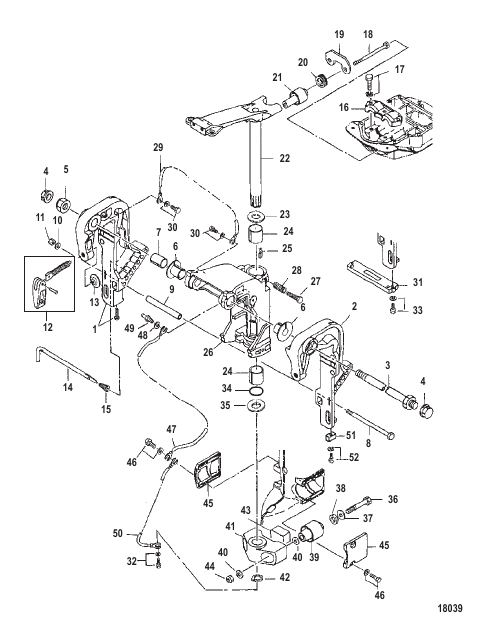

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
804038 |
CLAMP BRACKET (Starboard)
|
1 |
superseded
|
| 10 |
895106001 |
WASHER
|
1 |
superseded
|
| 11 |
853722023 |
NUT
|
1 |
superseded
|
| 12 |
804042A1 |
THUMB SCREW ASSEMBLY
|
2 |
disc.
|
| 13 |
95379 |
PAD
|
2 |
disc.
|
| 14 |
804041 |
THRUST ROD
|
1 |
|
| 15 |
8126455 |
SPRING
|
1 |
|
| 16 |
851872 |
CAP
|
1 |
superseded
|
| 17 |
82304212 |
BOLT
|
3 |
superseded
|
| 18 |
8129356 |
BOLT
|
2 |
superseded
|
| 19 |
879194012 |
PLATE-LOCKING
|
1 |
|
| 2 |
804039 |
CLAMP BRACKET (Port)
|
1 |
superseded
|
| 20 |
851870 |
GROMMET
|
2 |
|
| 21 |
8537713 |
RUBBER
|
2 |
superseded
|
| 22 |
8M0075037 |
SWIVEL TUBE [0N175258] & Up
|
1 |
superseded
|
| 22 |
853770007 |
SWIVEL TUBE [0N175257] & Below
|
1 |
superseded
|
| 23 |
162041 |
THRUST PLATE Upper
|
1 |
|
| 24 |
8537436 |
BUSHING
|
2 |
|
| 25 |
162052 |
FRICTION PLATE
|
1 |
|
| 26 |
813029A12 |
SWIVEL BRACKET
|
1 |
|
| 27 |
4000354 |
SCREW (M8 x 30)
|
1 |
|
| 28 |
953831 |
SPRING
|
1 |
|
| 29 |
8537401 |
GROUND WIRE
|
1 |
superseded
|
| 3 |
853769 |
TILT TUBE
|
1 |
superseded
|
| 30 |
82304234 |
BOLT
|
2 |
superseded
|
| 31 |
823912002 |
ANODE
|
1 |
|
| 32 |
82304234 |
BOLT
|
1 |
superseded
|
| 33 |
162232 |
BOLT
|
2 |
|
| 34 |
161313 |
O-RING
|
1 |
superseded
|
| 35 |
16204004 |
THRUST PLATE
|
1 |
|
| 36 |
851866012 |
SCREW
|
2 |
|
| 37 |
953928 |
WASHER
|
2 |
|
| 38 |
851867 |
WASHER
|
2 |
|
| 39 |
8537712 |
MOUNT
|
2 |
superseded
|
| 4 |
85372214 |
CAP NUT (Handle)
|
2 |
|
| 40 |
851868 |
WASHER
|
4 |
superseded
|
| 41 |
853786007 |
YOKE Bottom
|
1 |
superseded
|
| 42 |
8537142 |
C-RING
|
1 |
|
| 43 |
8537732 |
RUBBER DAMPER
|
1 |
|
| 44 |
85372218 |
NUT
|
2 |
|
| 45 |
851869 |
COVER
|
2 |
|
| 46 |
167051 |
BOLT (M6 x 20)
|
4 |
|
| 47 |
8537405 |
GROUND WIRE
|
1 |
|
| 48 |
16826 |
WASHER Stainless Steel
|
1 |
|
| 49 |
824969 |
FITTING Grease
|
1 |
|
| 5 |
853722029 |
NUT Nylon
|
1 |
|
| 50 |
878357 |
CABLE ASSEMBLY Ground
|
1 |
superseded
|
| 51 |
804043 |
ANODE
|
1 |
|
| 52 |
82304230 |
BOLT
|
1 |
superseded
|
| 6 |
8537435 |
BUSHING
|
2 |
|
| 7 |
8113681 |
BUSHING
|
1 |
|
| 8 |
16263009 |
SCREW
|
1 |
|
| 9 |
804040001 |
DISTANCE PIECE
|
1 |
|
