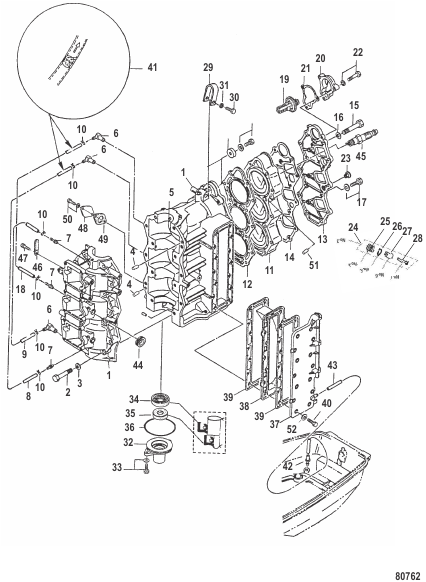

Cylinder Block Serial 0N495905 and Up
Parts (60)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 898101264 |
СФЕРИЧЕСКАЯ ЗАГЛУШКА WELCH PLUG |
1 | |
| - | 8M0242296 |
SHORT BLOCK (40) SHORT BLOCK (40) |
1 | |
| - | 8M0242298 |
SHORT BLOCK (40 Lightning XR/50) SHORT BLOCK (40 Lightning XR/50) |
1 | |
| - | 8M0081614 |
GASKET SET GASKET SET |
1 | |
| - | 8M0188346 |
ELECTRIC STARTER KIT ELECTRIC STARTER KIT |
1 | |
| 1 | 8M0242292 |
CYLINDER BLOCK (40) CYLINDER BLOCK (40) |
1 | |
| 1 | 8M0242294 |
CYLINDER BLOCK (40 Lightning XR/50) CYLINDER BLOCK (40 Lightning XR/50) |
1 | |
| 10 | 95332002 |
ЗАЖИМ CLIP |
6 | |
| 11 | 96305 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | |
| 12 | 8M0062091 |
GASKET Cylinder Head GASKET Cylinder Head |
1 | |
| 13 | 8M0231776 |
COVER Cylinder Head COVER Cylinder Head |
1 | |
| 14 | 8M0115016 |
GASKET Cylinder Head Cover GASKET Cylinder Head Cover |
1 | |
| 15 | 8M0106717 |
BOLT BOLT |
14 | |
| 16 | 8M0106725 |
WASHER WASHER |
14 | |
| 17 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | |
| 18 | 879194473 |
ТРУБОПРОВОД TUBING |
1 | |
| 19 | 8537041 |
ТЕРМОСТАТ THERMOSTAT |
1 | |
| 2 | 166951 |
БОЛТ BOLT |
14 | |
| 20 | 8537051 |
КРЫШКА COVER |
1 | |
| 21 | 8537024 |
ПРОКЛАДКА GASKET |
1 | |
| 22 | 823042 |
БОЛТ BOLT |
3 | |
| 23 | 855549 |
ПРОБКА PLUG |
1 | |
| 24 | 8M0135965 |
ANODE PLUG ASSEMBLY ANODE PLUG ASSEMBLY |
1 | |
| 25 | 8M0065071 |
АНОДНАЯ ПРОБКА ANODE PLUG |
1 | |
| 26 | 804840010 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 27 | 8M0065073 |
АНОД ANODE |
1 | |
| 28 | 888786 |
ВИНТ SCREW |
1 | |
| 29 | 8M0137792 |
LIFTING EYE LIFTING EYE |
1 | |
| 3 | 4002217 |
ШАЙБА WASHER |
14 | |
| 30 | 168304 |
БОЛТ BOLT |
1 | |
| 31 | 4002217 |
ШАЙБА WASHER |
1 | |
| 32 | 8537131 |
КОЛПАЧОК Нижняя часть END CAP Lower |
1 | |
| 33 | 8537091 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 34 | 8M0101648 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 35 | 8537078 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 36 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 37 | 8M0081401 |
COVER Exhaust COVER Exhaust |
1 | |
| 38 | 8537062 |
КРЫШКА Выхлоп COVER Exhaust |
1 | |
| 39 | 812939020 |
GASKET GASKET |
2 | |
| 4 | 16119 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 40 | 825009026 |
БОЛТ BOLT |
14 | |
| 41 | 42657A3 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
3 | |
| 42 | 898101961 |
НИППЕЛЬ NIPPLE |
1 | |
| 43 | 8M0057113 |
ТРУБОПРОВОД TUBING |
1 | |
| 44 | 855551 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Electric) GROMMET (Electric) |
1 | |
| 45 | 8M0181925 |
SPARK PLUG (40)(NGK-BR8HS-10) SPARK PLUG (40)(NGK-BR8HS-10) |
3 | |
| 45 | 8M0181926 |
SPARK PLUG (40 Lightning XR/50)(NGK-BR8HS-10) SPARK PLUG (40 Lightning XR/50)(NGK-BR8HS-10) |
3 | |
| 46 | 8M0130961 |
ЗАЖИМ CLAMP |
1 | |
| 47 | 879194247 |
SCREW SCREW |
1 | discontinued |
| 48 | 803992 |
КРЫШКА (Manual) COVER PLATE (Manual) |
1 | |
| 49 | 8M0081613 |
GASKET (Manual) GASKET (Manual) |
1 | |
| 5 | 9521812 |
ШТИФТ Штифт PIN Dowel |
1 | |
| 50 | 162233 |
ВИНТ (Manual) SCREW (Manual) |
2 | |
| 51 | 16119 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 52 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
14 | |
| 6 | 812960A01 |
NIPPLE/CHECK VALVE KIT NIPPLE/CHECK VALVE KIT |
3 | |
| 7 | 8M0064617 |
NIPPLE NIPPLE |
1 | |
| 8 | 879194473 |
ТРУБОПРОВОД TUBING |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose NOT SOLD SEPARATE Hose |
1 | |
| NS | 812960006 |
НИППЕЛЬ NIPPLE |
1 |
