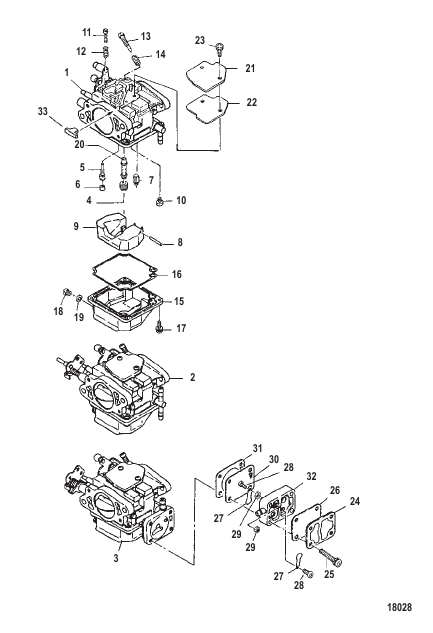

Carburetor
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 853780A2 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | |
| 1 | 853720A10 |
КАРБЮРАТОР (Upper) (40) CARBURETOR (Upper) (40) |
1 | |
| 1 | 853720A09 |
КАРБЮРАТОР (Upper) (40 Lightning XR/50) CARBURETOR (Upper) (40 Lightning XR/50) |
1 | |
| 10 | 8536981 |
ВИНТ SCREW |
3 | |
| 11 | 162631 |
ВИНТ (Upper Carburetor) SCREW (Upper Carburetor) |
1 | superseded |
| 12 | 162641 |
ПРУЖИНА (11 мм) (Upper Carburetor) SPRING (11 mm) (Upper Carburetor) |
1 | discontinued |
| 13 | 8129355 |
ВИНТ Регулировка холостого хода SCREW Idle Adjusting |
3 | |
| 14 | 162641 |
ПРУЖИНА (11 мм) SPRING (11 mm) |
3 | discontinued |
| 15 | 162583 |
ПОПЛАВКОВАЯ КАМЕРА (Upper/Center Carburetor) FLOAT BOWL (Upper/Center Carburetor) |
2 | |
| 15 | 162584 |
ПОПЛАВКОВАЯ КАМЕРА (Lower Carburetor) FLOAT BOWL (Lower Carburetor) |
1 | |
| 16 | 855567 |
ПРОКЛАДКА GASKET |
3 | |
| 17 | 162603 |
ВИНТ SCREW |
12 | |
| 18 | 162613 |
ВИНТ Слив SCREW Drain |
3 | superseded |
| 19 | 8555671 |
ПРОКЛАДКА GASKET |
3 | superseded |
| 2 | 853720A11 |
КАРБЮРАТОР (Center) (40) CARBURETOR (Center) (40) |
1 | |
| 2 | 853720A6 |
КАРБЮРАТОР (Center) (40 Lightning XR/50) CARBURETOR (Center) (40 Lightning XR/50) |
1 | |
| 20 | 8126502 |
ГЛАВНАЯ ФОРСУНКА (40) MAIN NOZZLE (40) |
3 | |
| 20 | 812650018 |
ГЛАВНАЯ ФОРСУНКА (40 Lightning XR/50) MAIN NOZZLE (40 Lightning XR/50) |
3 | |
| 21 | 8555401 |
КРЫШКА Карбюратор COVER Carburetor |
3 | |
| 22 | 8555412 |
ПРОКЛАДКА GASKET |
3 | |
| 23 | 8555421 |
ВИНТ SCREW |
6 | superseded |
| 24 | 855568 |
КРЫШКА (Lower Carburetor) COVER (Lower Carburetor) |
1 | |
| 25 | 162604 |
ВИНТ (Lower Carburetor) SCREW (Lower Carburetor) |
4 | superseded |
| 26 | 855569 |
ПРОКЛАДКА (Lower Carburetor) GASKET (Lower Carburetor) |
1 | |
| 27 | 851812 |
ОБРАТНЫЙ КЛАПАН (Lower Carburetor) CHECK VALVE (Lower Carburetor) |
2 | |
| 28 | 851813 |
ВИНТ (Lower Carburetor) SCREW (Lower Carburetor) |
2 | |
| 29 | 851814 |
ГАЙКА (Lower Carburetor) NUT (Lower Carburetor) |
2 | |
| 3 | 853720A13 |
КАРБЮРАТОР (Lower) (40) CARBURETOR (Lower) (40) |
1 | |
| 3 | 853720A12 |
КАРБЮРАТОР (Lower) (40 Lightning XR/50) CARBURETOR (Lower) (40 Lightning XR/50) |
1 | superseded |
| 30 | 8537312 |
ДИАФРАГМА (Lower Carburetor) DIAPHRAGM (Lower Carburetor) |
1 | |
| 31 | 8555691 |
ПРОКЛАДКА (Lower Carburetor) GASKET (Lower Carburetor) |
1 | |
| 32 | 8537291 |
КОРПУС Насос (Lower Carburetor) HOUSING Pump (Lower Carburetor) |
1 | |
| 33 | 895112001 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 4 | 162503 |
ВОДОМЕТНЫЙ Главн. (№122) (40) JET Main (#122) (40) |
3 | |
| 4 | 803883 |
ВОДОМЕТНЫЙ Главн. (№132) (Upper/Center) (40 Lightning XR/50) JET Main (#132) (Upper/Center) (40 Lightning XR/50) |
2 | |
| 4 | 162504 |
ВОДОМЕТНЫЙ Главн. (№135) (Lower) (40 Lightning XR/50) JET Main (#135) (Lower) (40 Lightning XR/50) |
1 | |
| 5 | 162513 |
ВОДОМЕТНЫЙ Пилотный клапан (№66) (40) JET Pilot (#66) (40) |
3 | |
| 5 | 162514 |
ВОДОМЕТНЫЙ Пилотный клапан (№80) (40 Lightning XR/50) JET Pilot (#80) (40 Lightning XR/50) |
3 | superseded |
| 6 | 855566 |
ПРОБКА PLUG |
3 | |
| 7 | 162545 |
ЗАПОРНАЯ ИГЛА ПОПЛАВКОВОГО РЕГУЛЯТОРА FLOAT NEEDLE |
3 | |
| 8 | 162561 |
ШТИФТ PIN |
3 | |
| 9 | 162532 |
ПОПЛАВОК FLOAT |
3 |
