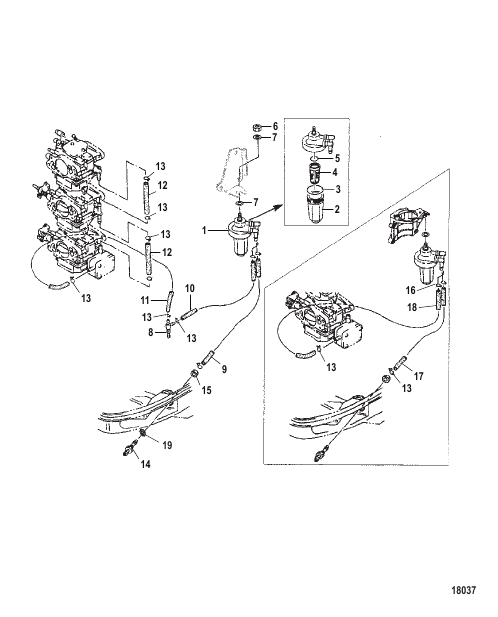

Fuel Line
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 812937A02 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | superseded |
| 1 | 853733A2 |
ФИЛЬТР В СБОРЕ Топливо [0N072166] & Below FILTER ASSEMBLY Fuel [0N072166] & Below |
1 | superseded |
| 1 | 853733T03 |
ФИЛЬТР В СБОРЕ Топливо [0N072167] & Up FILTER ASSEMBLY Fuel [0N072167] & Up |
1 | superseded |
| 10 | 851848011 |
ТРУБОПРОВОД (300 мм) (Oil Injection) TUBING (300 mm) (Oil Injection) |
1 | discontinued |
| 11 | 95394014 |
ТРУБОПРОВОД (200 мм) (Oil Injection) TUBING (200 mm) (Oil Injection) |
1 | discontinued |
| 12 | 95394015 |
ТРУБОПРОВОД (80 мм) (Oil Injection) TUBING (80 mm) (Oil Injection) |
2 | discontinued |
| 13 | 95395 |
ЗАЖИМ Нержавеющая сталь (Oil Injection) CLIP Stainless Steel (Oil Injection) |
10 | |
| 14 | 853736 |
СОЕДИНИТЕЛЬ Топливо CONNECTOR Fuel |
1 | |
| 15 | 17480 |
ГАЙКА NUT |
1 | |
| 16 | 95395 |
ЗАЖИМ Нержавеющая сталь (Non-Oil Injection) CLIP Stainless Steel (Non-Oil Injection) |
8 | |
| 17 | 851848014 |
ТРУБОПРОВОД (350 мм) (Non-Oil Injection) TUBING (350 mm) (Non-Oil Injection) |
1 | discontinued |
| 18 | 95394016 |
ТРУБОПРОВОД (530 мм) (Non-Oil Injection) TUBING (530 mm) (Non-Oil Injection) |
1 | discontinued |
| 19 | 803663017 |
ПРОКЛАДКА GASKET |
1 | |
| 2 | 8537351 |
КОЛПАЧОК [0N072166] & Below CUP [0N072166] & Below |
1 | |
| 2 | 853735002 |
КОЛПАЧОК [0N072167] & Up CUP [0N072167] & Up |
1 | |
| 3 | 851815 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0N072166] & Below O-RING [0N072166] & Below |
1 | |
| 3 | 851815006 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0N072167] & Up O-RING [0N072167] & Up |
1 | |
| 4 | 8537331 |
ФИЛЬТР [0N072166] & Below FILTER Fuel [0N072166] & Below |
1 | |
| 4 | 853733002 |
ФИЛЬТР [0N072167] & Up FILTER [0N072167] & Up |
1 | |
| 5 | 8518151 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0N072166] & Below O-RING [0N072166] & Below |
1 | |
| 6 | 8537223 |
ГАЙКА NUT |
1 | superseded |
| 7 | 16192 |
ШАЙБА WASHER |
2 | |
| 8 | 8518121 |
ОБРАТНЫЙ КЛАПАН (Oil Injection) CHECK VALVE (Oil Injection) |
1 | |
| 9 | 95394013 |
ТРУБОПРОВОД (215 мм) (Oil Injection) TUBING (215 mm) (Oil Injection) |
1 | discontinued |
