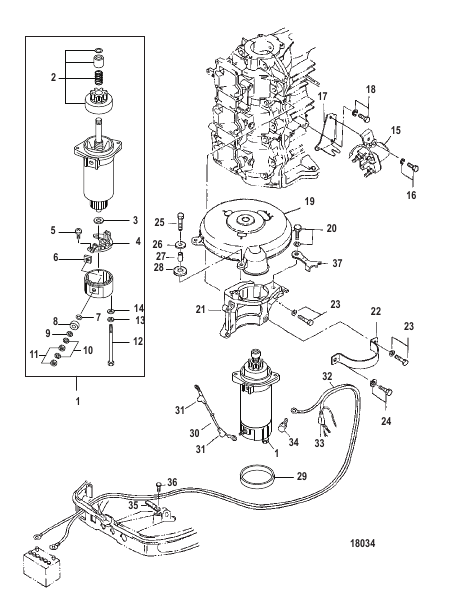

| # | Part Number | Description | Qty | Status |
|---|
| - |
804056A1 |
STARTER MOTOR KIT
|
1 |
superseded
|
| 1 |
853805A3 |
STARTER MOTOR ASSEMBLY
|
1 |
|
| 10 |
400256 |
LOCKWASHER (M6)
|
2 |
|
| 11 |
853722026 |
NUT
|
2 |
|
| 12 |
162632 |
BOLT
|
2 |
|
| 13 |
898101181 |
LOCKWASHER
|
2 |
|
| 14 |
898101215 |
WASHER
|
2 |
|
| 15 |
853809 |
SOLENOID Starter
|
1 |
superseded
|
| 16 |
162233 |
SCREW
|
1 |
|
| 17 |
8518362 |
BRACKET
|
1 |
|
| 18 |
162234 |
BOLT
|
2 |
|
| 19 |
851838 |
COVER
|
1 |
|
| 2 |
8538061 |
PINION [0N364326] & Below
|
1 |
superseded
|
| 2 |
8M0188338 |
PINION [0N364327] & Up
|
1 |
|
| 20 |
823042073 |
SCREW
|
2 |
|
| 21 |
851836 |
BRACKET
|
1 |
|
| 22 |
8518361 |
BRACKET
|
1 |
|
| 23 |
823042073 |
SCREW
|
4 |
|
| 24 |
823042052 |
BOLT
|
1 |
superseded
|
| 25 |
4000330 |
SCREW (M6 x 25)
|
3 |
superseded
|
| 26 |
895118002 |
WASHER
|
3 |
superseded
|
| 27 |
9528624 |
COLLAR (9.3 mm)
|
3 |
superseded
|
| 28 |
953923 |
WASHER Rubber
|
3 |
|
| 29 |
851837 |
MOUNT Rubber
|
1 |
|
| 3 |
953926 |
WASHER
|
1 |
|
| 30 |
8537403 |
CABLE
|
1 |
|
| 31 |
8538161 |
CAP
|
2 |
|
| 32 |
8537404 |
WIRE Battery
|
1 |
superseded
|
| 33 |
853816 |
CAP
|
1 |
|
| 34 |
162111 |
BOLT
|
1 |
superseded
|
| 35 |
95306 |
CLAMP
|
1 |
superseded
|
| 36 |
162231 |
BOLT
|
1 |
disc.
|
| 37 |
898101257 |
STOPPER
|
1 |
|
| 4 |
853807T02 |
HOLDER Brush
|
1 |
superseded
|
| 5 |
16821 |
SCREW
|
2 |
|
| 6 |
9528614 |
BUSHING
|
1 |
superseded
|
| 7 |
161784 |
O-RING
|
1 |
|
| 8 |
9528619 |
BUSHING
|
1 |
superseded
|
| 9 |
16826 |
WASHER Stainless Steel
|
1 |
|
