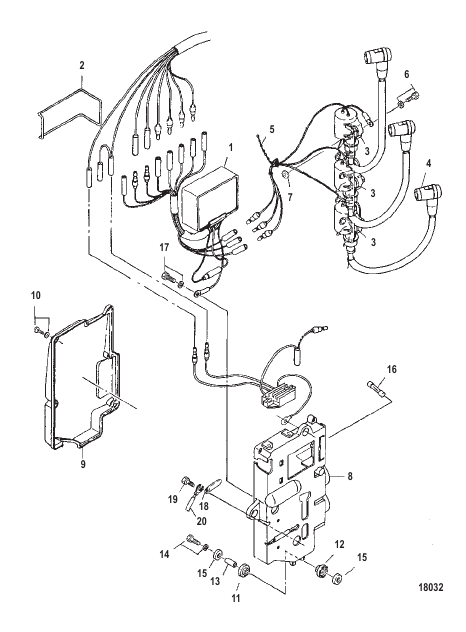

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 812937A02 | GASKET SET Powerhead | 1 | superseded |
| 1 | 160612 | CD UNIT | 1 | superseded |
| 10 | 8555442 | SCREW | 5 | |
| 11 | 8537437 | MOUNT Rubber | 3 | |
| 12 | 8518153 | GROMMET | 3 | |
| 13 | 8537154 | SPACER | 3 | superseded |
| 14 | 162232 | BOLT | 3 | |
| 15 | 161404 | WASHER | 6 | |
| 16 | 8538141 | FUSE | 1 | |
| 17 | 953965 | BOLT | 1 | |
| 18 | 95306 | CLAMP (Electric) | 1 | superseded |
| 19 | 95396 | BOLT (Electric) | 1 | |
| 2 | 8518152 | O-RING | 1 | superseded |
| 20 | 853740014 | WIRE Ground | 1 | |
| 3 | 160644 | COIL Ignition | 3 | superseded |
| 4 | 855543 | BOOT With Resistance | 3 | |
| 5 | 816311T | TIE STRAP (8.00 Inches) | 1 | |
| 6 | 167051 | BOLT (M6 x 20) | 3 | |
| 7 | 851834 | GASKET | 3 | |
| 8 | 8537391 | BRACKET Electrical | 1 | superseded |
| 9 | 851835 | COVER | 1 |
