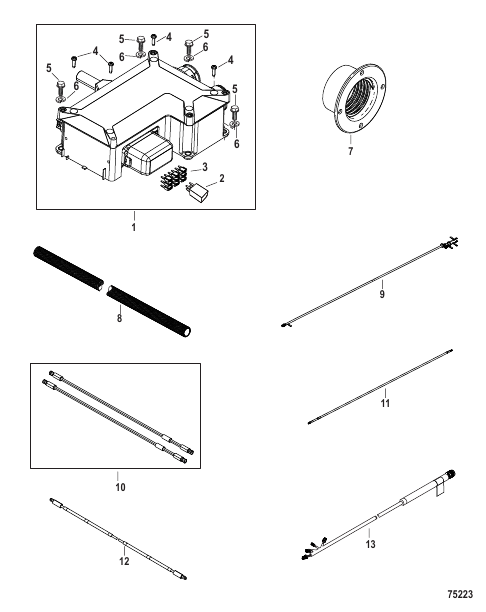

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0221497 |
COVER-STORAGE 350-425 HP Black
|
1 |
|
| - |
8M0228538 |
COVER-STORAGE 350-425 HP White
|
1 |
|
| - |
8M0228524 |
COVER-VENTED 350HP Black
|
1 |
|
| - |
8M0228525 |
COVER-VENTED 350HP White
|
1 |
|
| - |
825191A03 |
HOSE KIT Rigging
|
1 |
|
| - |
8M0192174 |
RIG TUBE KIT 2 Inch
|
1 |
|
| - |
8M0185657 |
GROMMET Ingress 2.5 Inch
|
1 |
|
| - |
8M0225356 |
CLAMP KIT Clamp Kit-Complete
|
- |
|
| - |
8M0187098 |
HARNESS V10 Rig Center
|
1 |
|
| - |
8M0176937 |
HARNESS EXTENSION 5 FT
|
1 |
|
| - |
8M0176939 |
HARNESS EXTENSION 10 FT
|
1 |
|
| - |
8M0176940 |
HARNESS EXTENSION 15 FT
|
1 |
|
| - |
8M0176941 |
HARNESS EXTENSION 20 FT
|
1 |
|
| - |
8M0176942 |
HARNESS EXTENSION 25 FT
|
1 |
|
| - |
8M0236725 |
FLUSH QUICK CONNECT KIT
|
1 |
|
| - |
8M0200103 |
ANODE Antivent Plate (Magnesium)
|
1 |
|
| 1 |
8M0168337 |
RIG CENTER
|
1 |
|
| 10 |
8M0149414 |
CABLE KIT Battery
|
1 |
|
| 11 |
8M0171478 |
CABLE Battery Isolator
|
1 |
|
| 12 |
8M0149788 |
CHARGE CABLE 2awg Red, 3 Ft
|
AR |
|
| 12 |
8M0149789 |
CHARGE CABLE 2awg Red, 6 Ft
|
AR |
|
| 12 |
8M0149790 |
CHARGE CABLE 2awg Red, 10 Ft
|
AR |
|
| 13 |
8M0171475 |
HARNESS 21 Pin Umbilical (10 Foot)
|
AR |
|
| 13 |
8M0171476 |
HARNESS 21 Pin Umbilical (15 Foot)
|
AR |
|
| 13 |
8M0171477 |
HARNESS 21 Pin Umbilical (20 Foot)
|
AR |
|
| 13 |
8M0179757 |
HARNESS 21 Pin Umbilical (25 Foot)
|
AR |
|
| 2 |
8M0231744 |
RELAY Micro ISO 12VDC 280
|
2 |
|
| 3 |
8M0207797 |
FUSE Mini Gray 2 Ampere
|
1 |
|
| 3 |
832969T05 |
FUSE Mini - Tan - 5 Ampere
|
2 |
|
| 4 |
88904 |
SCREW (#8-18 x .620)
|
4 |
|
| 5 |
4000327 |
SCREW (M6 x 14)
|
4 |
|
| 6 |
78968 |
LOCKWASHER Internal (.250)
|
4 |
|
| 7 |
8M0180071 |
HOUSING Rig Hose
|
1 |
|
| 8 |
8M0180055 |
RIG TUBE White (5 Foot)
|
AR |
|
| 8 |
8M0180056 |
RIG TUBE White (50 Foot)
|
AR |
|
| 8 |
8M0180053 |
RIG TUBE Black (5 Foot)
|
AR |
|
| 8 |
8M0180054 |
RIG TUBE Black (50 Foot)
|
AR |
|
| 9 |
8M0150521 |
POWER HARNESS 3 FT
|
1 |
|
| 9 |
8M0150522 |
POWER HARNESS 6 FT
|
1 |
|
| 9 |
8M0150523 |
POWER HARNESS 15 FT
|
1 |
|
| 9 |
8M0150524 |
POWER HARNESS 25 FT
|
1 |
|
| 9 |
899887T13 |
HARNESS ASSEMBLY Wiring, Power (10 Feet)
|
1 |
|
| 9 |
899887T14 |
HARNESS ASSEMBLY Wiring, Power (20 Feet)
|
1 |
|
