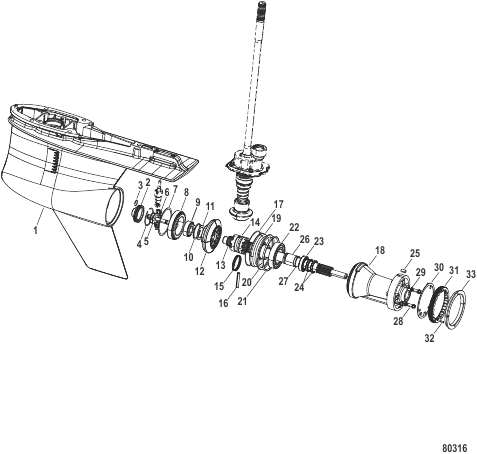

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0238530 |
GEAR HOUSING ASSEMBLY Standard Rotation, Long, 5.44, Silver
|
1 |
|
| - |
8M0238532 |
GEAR HOUSING ASSEMBLY Standard Rotation, XLong, 5.44, Silver
|
1 |
|
| - |
8M0240768 |
SEAL KIT Gearcase
|
1 |
|
| - |
8M0240770 |
GEAR SET 1.75. Standard Rotation
|
1 |
|
| 1 |
8M0199845 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
8M0051043 |
RING Retaining
|
1 |
|
| 11 |
8M0053823 |
WASHER Thrust, (1.50 ID x 2.046 OD)
|
1 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Forward Gear, 21 Teeth
|
1 |
|
| 13 |
8M0142877 |
SHAFT Propeller
|
1 |
|
| 14 |
8M0142871 |
CLUTCH Sliding 6 Jaw
|
1 |
|
| 15 |
8M0050575 |
SPRING Cross
|
1 |
|
| 16 |
8M0045493 |
PIN Cross
|
1 |
|
| 17 |
8M0146386 |
SHIM SET
|
1 |
|
| 18 |
8M0146058 |
BEARING CARRIER ASSEMBLY Standard Rotation
|
1 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Reverse Gear, 21 Teeth
|
1 |
|
| 2 |
8M0157111 |
PLUG Torpedo
|
1 |
|
| 20 |
8M0161546 |
THRUST RING
|
1 |
|
| 21 |
8M0000190 |
O-RING (4.475 x .210)
|
1 |
|
| 22 |
8M0142873 |
BEARING Ball
|
1 |
|
| 23 |
8M0148319 |
BEARING Roller Taper Cup/Cone
|
1 |
|
| 24 |
8M0204700 |
SEAL Oil
|
1 |
|
| 25 |
8M0109164 |
PIN 3/8 Dia x .625 LG
|
1 |
|
| 26 |
8M0064306 |
SPACER Thrust
|
1 |
|
| 27 |
8M0076745 |
SHIM SET
|
1 |
|
| 28 |
8M0071653 |
SCREW Special, .375-16 UNC
|
2 |
|
| 29 |
8M0204693 |
SEAL Drain Plug
|
2 |
|
| 3 |
8M0046563 |
RING Retaining
|
1 |
|
| 30 |
8M0108527 |
WASHER Tab
|
1 |
|
| 31 |
8M0162798 |
RETAINER Bearing Carrier
|
1 |
|
| 32 |
8M0036819 |
SET SCREW (10-32)
|
1 |
|
| 33 |
8M0180306 |
COVER Torpedo
|
1 |
|
| 4 |
880719 |
RING Retaining
|
1 |
|
| 5 |
8M0235942 |
SPOOL
|
1 |
|
| 6 |
8M0220880 |
CRANK, Shifter 1/4 Pivot Pin
|
1 |
|
| 7 |
8M0063270 |
SHIM SET
|
1 |
|
| 8 |
8M0142836 |
BEARING Roller Taper (Cup/Cone)
|
1 |
|
| 9 |
8M0142835 |
BEARING Roller Taper (Cup/Cone)
|
1 |
|
