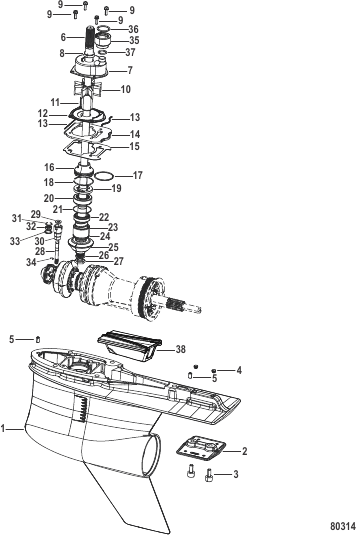

Gear Housing Driveshaft, 5.44 Torpedo (1.75 Gear Ratio)
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0238530 |
GEAR HOUSING ASSEMBLY Standard Rotation, Long, 5.44, Silver GEAR HOUSING ASSEMBLY Standard Rotation, Long, 5.44, Silver |
1 | |
| - | 8M0238532 |
GEAR HOUSING ASSEMBLY Standard Rotation, XLong, 5.44, Silver GEAR HOUSING ASSEMBLY Standard Rotation, XLong, 5.44, Silver |
1 | |
| - | 8M0238533 |
GEAR HOUSING ASSEMBLY Counter Rotation, XLong, 5.44, Silver GEAR HOUSING ASSEMBLY Counter Rotation, XLong, 5.44, Silver |
1 | |
| - | 8M0199856 |
IMPELLER REPAIR KIT IMPELLER REPAIR KIT |
1 | |
| - | 8M0240768 |
SEAL KIT Gearcase SEAL KIT Gearcase |
1 | |
| - | 8M0240770 |
GEAR SET 1.75. Standard Rotation GEAR SET 1.75. Standard Rotation |
1 | |
| - | 8M0240769 |
GEAR SET 1.75, Counter Rotaion GEAR SET 1.75, Counter Rotaion |
1 | |
| 1 | 8M0199845 |
GEAR HOUSING ASSEMBLY Basic Standard Rotation GEAR HOUSING ASSEMBLY Basic Standard Rotation |
1 | |
| 1 | 8M0199871 |
GEAR HOUSING ASSEMBLY Basic Counter Rotation GEAR HOUSING ASSEMBLY Basic Counter Rotation |
1 | |
| 10 | 8M0199848 |
IMPELLER Water Pump IMPELLER Water Pump |
1 | |
| 11 | 8M0204723 |
KEY KEY |
1 | |
| 12 | 8M0210537 |
FACEPLATE FACEPLATE |
1 | |
| 13 | 8M0142659 |
УПЛОТНЕНИЕ SEAL Formed, Actuator |
2 | |
| 14 | 8M0174560 |
COVER Gearcase Housing COVER Gearcase Housing |
1 | |
| 15 | 8M0146938 |
ПРОКЛАДКА Основание водяного насоса GASKET Water Pump Base |
1 | |
| 16 | 8M0199850 |
OIL SEAL CARRIER ASSEMBLY OIL SEAL CARRIER ASSEMBLY |
1 | |
| 17 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 18 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 19 | 8245191 |
ФИКСАТОР RETAINER |
1 | |
| 2 | 8M0137814 |
АНОД ПРОТИВОВЕНТИЛЯЦИОННАЯ ПЛАСТИНА ANODE Antivent Plate (Aluminum) |
1 | |
| 20 | 8M0146566 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 21 | 8M0063267 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 22 | 8M0146553 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 23 | 8M0045676 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 24 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pinion 12 Tooth NOT SOLD SEPARATE Pinion 12 Tooth |
1 | |
| 26 | 8M0062703 |
ШАЙБА WASHER |
1 | |
| 27 | 8M0046636 |
ГАЙКА NUT |
1 | |
| 28 | 8M0164968 |
SHIFT SHAFT Long SHIFT SHAFT Long |
1 | |
| 28 | 8M0164969 |
SHIFT SHAFT XLong SHIFT SHAFT XLong |
1 | |
| 29 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 3 | 8M0142850 |
ВИНТ (M10 X 25) SCREW (M10 X 25) |
2 | |
| 30 | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| 31 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 32 | 8M0204708 |
SEAL Oil SEAL Oil |
1 | |
| 33 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 34 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 35 | 8M0200112 |
COUPLING Water Pump COUPLING Water Pump |
1 | |
| 36 | 8M0200181 |
O-RING 1.296 x .139 O-RING 1.296 x .139 |
1 | |
| 37 | 8M0204656 |
GASKET GASKET |
1 | |
| 38 | 8M0188206 |
MUFFLER Lower Exhaust MUFFLER Lower Exhaust |
1 | |
| 4 | 8M0142878 |
ПРОБКА Винт PLUG Screw |
2 | |
| 5 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 6 | 8M0199851 |
DRIVESHAFT- DOUBLE BEARING Long DRIVESHAFT- DOUBLE BEARING Long |
1 | |
| 6 | 8M0199852 |
DRIVESHAFT- DOUBLE BEARING XLong DRIVESHAFT- DOUBLE BEARING XLong |
1 | |
| 7 | 8M0199847 |
HOUSING Water Pump HOUSING Water Pump |
1 | |
| 8 | 8M0200113 |
FACE SEAL FACE SEAL |
1 | |
| 9 | 8M0204706 |
SCREW M6 x 20 Hex SCREW M6 x 20 Hex |
4 |
