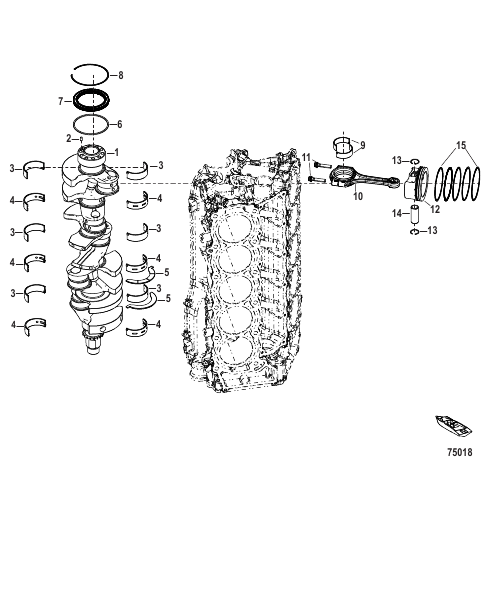

Crankshaft, Pistons and Connecting Rods
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0200002 |
LONG BLOCK LONG BLOCK |
1 | |
| - | 8M0200003 |
GASKET SET Powerhead GASKET SET Powerhead |
1 | |
| 1 | 8M0200026 |
CRANKSHAFT CRANKSHAFT |
1 | |
| 10 | 8M0220751 |
CONNECTING ROD ASSEMBLY CONNECTING ROD ASSEMBLY |
10 | |
| 11 | 8M0206041 |
BOLT Connecting Rod BOLT Connecting Rod |
20 | |
| 12 | 8M0200040 |
PISTON ASSEMBLY PISTON ASSEMBLY |
10 | |
| 13 | 8M0142383 |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
20 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Wrist Pin NOT SOLD SEPARATE Wrist Pin |
10 | |
| 15 | 8M0200041 |
RING KIT Piston RING KIT Piston |
10 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Dowel Pin NOT SOLD SEPARATE Dowel Pin |
1 | |
| 3 | 8M0200031 |
BEARING MAIN Orange Main Journal 1, 3, 5 BEARING MAIN Orange Main Journal 1, 3, 5 |
AR | |
| 3 | 8M0200030 |
BEARING MAIN White Main Journal 1, 3, 5 BEARING MAIN White Main Journal 1, 3, 5 |
AR | |
| 3 | 8M0200029 |
BEARING MAIN Blue Main Journal 1, 3, 5 BEARING MAIN Blue Main Journal 1, 3, 5 |
AR | |
| 3 | 8M0200028 |
BEARING MAIN Green Main Journal 1, 3, 5 BEARING MAIN Green Main Journal 1, 3, 5 |
AR | |
| 4 | 8M0179291 |
BEARING MAIN Orange Main Journal 2, 4, 6 BEARING MAIN Orange Main Journal 2, 4, 6 |
AR | |
| 4 | 8M0179290 |
BEARING MAIN White Main Journal 2, 4, 6 BEARING MAIN White Main Journal 2, 4, 6 |
AR | |
| 4 | 8M0179289 |
BEARING MAIN Blue Main Journal 2, 4, 6 BEARING MAIN Blue Main Journal 2, 4, 6 |
AR | |
| 4 | 8M0179288 |
BEARING MAIN Green Main Journal 2, 4, 6 BEARING MAIN Green Main Journal 2, 4, 6 |
AR | |
| 5 | 8M0179292 |
WASHER Thrust WASHER Thrust |
2 | |
| 6 | 8M0142385 |
ПРОСТАВКА SPACER |
1 | |
| 7 | 8M0168880 |
SEAL Main Bearing SEAL Main Bearing |
1 | |
| 8 | 8M0142386 |
СТОПОРНОЕ КОЛЬЦО RING RETAINING |
1 | |
| 9 | 8M0217817 |
BEARING Connecting Rod, Green BEARING Connecting Rod, Green |
AR | |
| 9 | 8M0217818 |
BEARING Connecting Rod, Blue BEARING Connecting Rod, Blue |
AR | |
| 9 | 8M0217819 |
BEARING Connecting Rod, White BEARING Connecting Rod, White |
AR |
