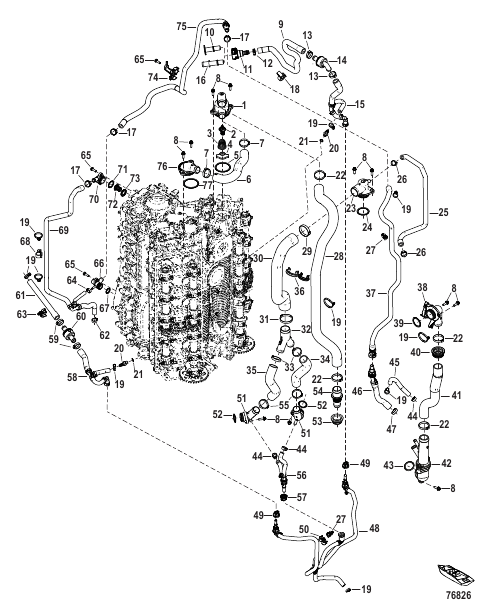

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0192183 |
FLUSH FITTING KIT
|
1 |
|
| - |
8M0200002 |
LONG BLOCK
|
1 |
|
| - |
8M0200003 |
GASKET SET Powerhead
|
1 |
|
| 1 |
8M0228544 |
THERMOSTAT ASSEMBLY
|
1 |
|
| 10 |
8M0192182 |
PLUG Flush Out
|
1 |
|
| 11 |
8M0215873 |
FITTING Quick Connect
|
1 |
|
| 12 |
848764 |
CLAMP (21 mm)
|
1 |
|
| 13 |
855228 |
CLAMP
|
2 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Valve-Flushing
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Hose
|
1 |
|
| 16 |
8M0192180 |
FITTING 1/2" to 5/8"
|
1 |
|
| 16 |
8M0192181 |
FITTING 5/8" to 5/8"
|
1 |
|
| 17 |
848764 |
CLAMP (21 mm)
|
3 |
|
| 18 |
8M0180032 |
CLIP Double Hose
|
1 |
|
| 19 |
816311T |
TIE STRAP (8.00 Inches)
|
10 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Thermostat (60 Degree C)
|
1 |
|
| 20 |
8M0203912 |
FITTING M10 x 1.5
|
2 |
|
| 21 |
8M0142523 |
O-RING (8.1 MM ID X 1.6MM)
|
2 |
|
| 22 |
888988011 |
CLAMP (38.1 MM)
|
4 |
|
| 23 |
8M0205190 |
FITTING
|
1 |
|
| 24 |
11165 |
O-RING
|
1 |
|
| 25 |
8M0205192 |
HOSE Sprayer
|
1 |
|
| 26 |
848763 |
CLAMP (19.8 mm)
|
2 |
|
| 27 |
899145 |
CLIP Tie Strap
|
2 |
|
| 28 |
8M0205193 |
HOSE Dump
|
1 |
|
| 29 |
8M0141781 |
CLAMP (44)
|
1 |
|
| 3 |
8M0177702 |
SPRING Thermostat
|
1 |
|
| 30 |
8M0205194 |
HOSE ASSEMBLY Water Exhaust Outlet
|
1 |
|
| 31 |
8M6001459 |
CLAMP (45.5)
|
1 |
|
| 32 |
NSS |
NOT SOLD SEPARATE Inlet Fitting
|
1 |
|
| 33 |
8M0143696 |
CLAMP
|
2 |
|
| 34 |
NSS |
NOT SOLD SEPARATE Hose-Water Inlet Port
|
1 |
|
| 35 |
NSS |
NOT SOLD SEPARATE Hose-Water Inlet Starboard
|
1 |
|
| 36 |
8M0218897 |
CLIP Hose
|
1 |
|
| 37 |
8M0205199 |
HOSE ASSEMBLY Upper Closed Cooling Inlet
|
1 |
|
| 38 |
8M0205200 |
FITTING Water Inlet
|
1 |
|
| 39 |
8M0200181 |
O-RING 1.296 x .139
|
1 |
|
| 4 |
8M0177703 |
RETAINER Thermostat
|
1 |
|
| 40 |
8M0205201 |
GROMMET Water Inlet
|
1 |
|
| 41 |
8M0205202 |
HOSE Water Inlet
|
1 |
|
| 42 |
8M0207806 |
STRAINER ASSEMBLY Inline
|
1 |
|
| 43 |
86614 |
O-RING (1.049 x .103)
|
1 |
|
| 44 |
8M0204696 |
CLAMP
|
3 |
|
| 45 |
8M0205203 |
HOSE Fuel Supply Module Inlet
|
1 |
|
| 46 |
8M0205204 |
HOSE Strainer to Fuel Supply Module
|
1 |
|
| 47 |
888988019 |
CLAMP (22.6 mm)
|
1 |
|
| 48 |
8M0142654 |
HOSE Water Drain
|
1 |
|
| 49 |
884546 |
GROMMET
|
2 |
|
| 5 |
8M0214923 |
O-RING (1.98 x 1.39)
|
1 |
|
| 50 |
888523001 |
CLIP
|
1 |
|
| 51 |
8M0205205 |
FITTING Water In
|
2 |
|
| 52 |
86614 |
O-RING (1.049 x .103)
|
2 |
|
| 53 |
8M0142501 |
GROMMET
|
1 |
|
| 54 |
8M0205206 |
FITTING Dump Hose
|
1 |
|
| 55 |
8M0187145 |
CLAMP
|
2 |
|
| 56 |
8M0142518 |
HOSE ASSEMBLY Head Drain
|
1 |
|
| 57 |
884546 |
GROMMET
|
1 |
|
| 58 |
8M0205208 |
HOSE ASSEMBLY Block Drain Port
|
1 |
|
| 59 |
855228 |
CLAMP
|
2 |
|
| 6 |
8M0205187 |
HOSE Crossover
|
1 |
|
| 60 |
8M0205209 |
VALVE Flushing
|
1 |
|
| 61 |
NSS |
NOT SOLD SEPARATE Hose
|
1 |
|
| 62 |
8M0157397 |
CLAMP Oetiker, 17.5
|
1 |
|
| 63 |
8M0205210 |
CLIP 2 Hose
|
1 |
|
| 64 |
888988023 |
CLAMP
|
1 |
|
| 65 |
8M0142830 |
SCREW (M6 x 20)
|
3 |
|
| 66 |
8M0205211 |
FITTING
|
1 |
|
| 67 |
38101 |
O-RING (.674 x .103)
|
1 |
|
| 68 |
8M0240951 |
CLIP Hose
|
1 |
|
| 69 |
8M0205213 |
HOSE ASSEMBLY Cooler Out
|
1 |
|
| 7 |
8M0143696 |
CLAMP
|
2 |
|
| 70 |
8M0205214 |
FITTING
|
1 |
|
| 71 |
8M0204650 |
O-RING
|
1 |
|
| 72 |
8M0223832 |
THERMOSTAT 120 Degree
|
1 |
|
| 73 |
8M0188252 |
GASKET Thermostat
|
1 |
|
| 74 |
8M0205216 |
CLIP Flush Hose
|
1 |
|
| 75 |
8M0205217 |
HOSE ASSEMBLY Lower Closed Cooling Inlet
|
1 |
|
| 76 |
8M0205218 |
FITTING
|
1 |
|
| 77 |
8M0214923 |
O-RING (1.98 x 1.39)
|
1 |
|
| 8 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
11 |
|
| 9 |
8M0205188 |
HOSE ASSEMBLY Engine Flush
|
1 |
|
