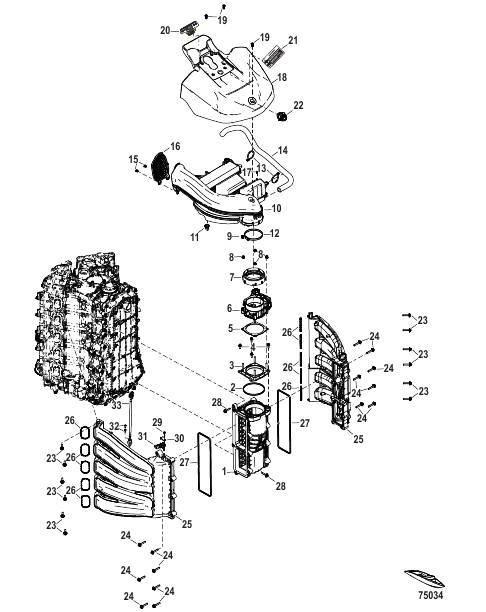

Intake System
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0200002 |
LONG BLOCK LONG BLOCK |
1 | |
| 1 | 8M0199977 |
INTAKE PLENUM INTAKE PLENUM |
1 | |
| 10 | 8M0199981 |
INTAKE, COLD AIR INTAKE, COLD AIR |
1 | |
| 11 | 888819002 |
СЛИВ Кожух DRAIN Cowl |
1 | |
| 12 | 8M0199980 |
CLAMP Hose CLAMP Hose |
1 | |
| 13 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 14 | 8M0199982 |
HOSE Breather HOSE Breather |
1 | |
| 15 | 8M0159629 |
CLIP PUSH IN CLIP PUSH IN |
2 | |
| 16 | 8M0199983 |
SCREEN SCREEN |
1 | |
| 17 | 8M0199984 |
PIN PIN |
1 | |
| 18 | 8M0199985 |
COLD AIR INTAKE ASSEMBLY COLD AIR INTAKE ASSEMBLY |
1 | |
| 19 | 8M6003202 |
ВИНТ SCREW |
3 | |
| 2 | 8M0199978 |
GASKET Throttle Body GASKET Throttle Body |
1 | |
| 20 | 8M0199986 |
DECAL Check Engine DECAL Check Engine |
1 | |
| 21 | 8M0142569 |
НАКЛЕЙКА Предупреждение DECAL Warning |
1 | |
| 22 | 8M0188625 |
DECAL M-ICON, 39 MM Small DECAL M-ICON, 39 MM Small |
1 | |
| 23 | 8M0142554 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
12 | |
| 24 | 8M0142553 |
ВИНТ (M6 x 37) SCREW (M6 x 37) |
14 | |
| 25 | 8M0199987 |
MANIFOLD Intake Port MANIFOLD Intake Port |
1 | |
| 25 | 8M0199988 |
MANIFOLD Intake Starboard MANIFOLD Intake Starboard |
1 | |
| 26 | 8M0231118 |
GASKET Intake Manifold GASKET Intake Manifold |
10 | |
| 27 | 8M0199989 |
SEAL Plenum SEAL Plenum |
2 | |
| 28 | 8M0142555 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
2 | |
| 29 | 895054 |
ВИНТ (M4 x 16 мм) SCREW (M4 x 16 MM) |
1 | |
| 3 | 8M0193548 |
ISOLATER ASSEMBLY ISOLATER ASSEMBLY |
1 | |
| 30 | 8M0179374 |
BRACKET Map Sensor BRACKET Map Sensor |
1 | |
| 31 | 8M0232598 |
SENSOR MAP SENSOR MAP |
1 | |
| 32 | 895054 |
ВИНТ (M4 x 16 мм) SCREW (M4 x 16 MM) |
2 | |
| 33 | 8M0199934 |
SENSOR IAT SENSOR IAT |
1 | |
| 4 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
4 | |
| 5 | 8M0109442 |
ПРОКЛАДКА GASKET Throttle Body |
1 | |
| 6 | 8M0222358 |
THROTTLE BODY 80 MM THROTTLE BODY 80 MM |
1 | |
| 7 | 8M0199979 |
SEAL Throttle Body SEAL Throttle Body |
1 | |
| 8 | 8M0227376 |
NUT (M6) NUT (M6) |
4 | |
| 9 | 8M0074363 |
ПРОБКА CAP |
1 |
