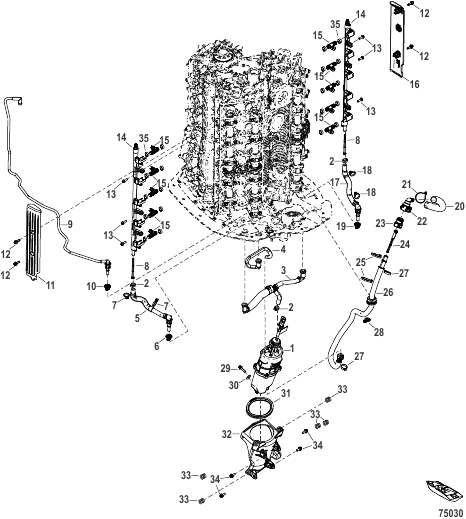

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0220814 |
FUEL INLET KIT
|
1 |
|
| - |
8M0205423 |
DECAL Fuel Inlet
|
1 |
|
| - |
8M0200002 |
LONG BLOCK
|
1 |
|
| 1 |
8M0161584 |
FUEL SUPPLY MODULE
|
1 |
|
| 10 |
884546 |
GROMMET
|
1 |
|
| 11 |
8M0199969 |
COVER Fuel Rail Port
|
1 |
|
| 12 |
8M0012661 |
SCREW M6 x 14 HEX FLG SS
|
4 |
|
| 13 |
8M0142830 |
SCREW (M6 x 20)
|
6 |
|
| 14 |
8M0219443 |
FUEL RAIL Port
|
1 |
|
| 14 |
8M0219442 |
FUEL RAIL Starboard
|
1 |
|
| 15 |
8M0142264 |
FUEL INJECTOR
|
10 |
|
| 16 |
8M0199972 |
COVER Fuel Rail Starboard
|
1 |
|
| 17 |
8M0199973 |
HOSE ASSEMBLY Fuel Rail Starboard
|
1 |
|
| 18 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 19 |
884546 |
GROMMET
|
1 |
|
| 2 |
8M0204696 |
CLAMP
|
3 |
|
| 20 |
8M0220815 |
SLEEVE Protective
|
1 |
|
| 21 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 22 |
8M0192175 |
FITTING Quick Connect
|
1 |
|
| 23 |
8M0199974 |
PLUG
|
1 |
|
| 24 |
8M0179353 |
SCREEN Fuel Filter
|
1 |
|
| 25 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 26 |
8M0199975 |
HOSE ASSEMBLY
|
1 |
|
| 27 |
888988019 |
CLAMP (22.6 mm)
|
2 |
|
| 28 |
899145 |
CLIP Tie Strap
|
1 |
|
| 29 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
1 |
|
| 3 |
8M0142437 |
HOSE ASSEMBLY FSM To Fuel Rail
|
1 |
|
| 30 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 31 |
8M0037209 |
GROMMET FSM Retainer
|
1 |
|
| 32 |
8M0142722 |
BRACKET FSM
|
1 |
|
| 33 |
8M0142724 |
GROMMET
|
5 |
|
| 34 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
4 |
|
| 35 |
8M0221321 |
ORING KIT Contains 6 Upper and Lower Orings
|
2 |
|
| 4 |
8M0231308 |
HOSE Manifold Reference Lower Intake to FSM
|
1 |
|
| 5 |
8M0199967 |
HOSE ASSEMBLY Fuel Rail Port
|
1 |
|
| 6 |
884546 |
GROMMET
|
1 |
|
| 7 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 8 |
8M0090809 |
SCREEN Fuel Rail
|
2 |
|
| 9 |
8M0199968 |
HOSE ASSEMBLY Upper Manifold
|
1 |
|
