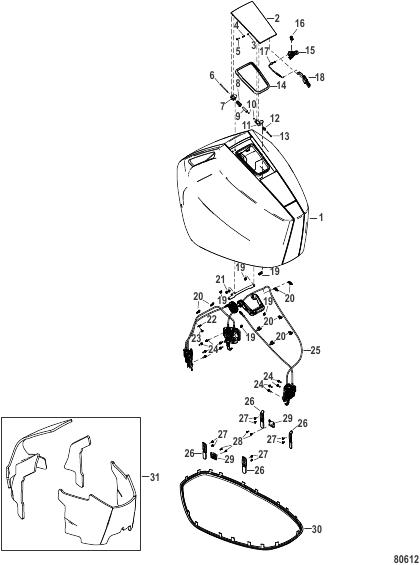

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0200182 |
TOP COWL ASSEMBLY Black Decaled without horsepower
|
1 |
|
| 1 |
8M0200183 |
TOP COWL ASSEMBLY Cold Fusion Decaled without horsepower
|
1 |
|
| 1 |
8M0200184 |
TOP COWL ASSEMBLY Warm Fusion Decaled without horsepower
|
1 |
|
| 1 |
8M0200185 |
TOP COWL ASSEMBLY Pearl Fusion Decaled without horsepower
|
1 |
|
| 10 |
8M0200197 |
E-CLIP
|
2 |
|
| 11 |
8M0200198 |
HINGE Damper
|
1 |
|
| 12 |
8M0200199 |
DAMPER
|
1 |
|
| 13 |
8M0200200 |
AXEL Damper
|
1 |
|
| 14 |
8M0200203 |
SEAL Door
|
1 |
|
| 15 |
8M0227736 |
BUTTON Actuator Assembly
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Latch Acutator
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE Clip
|
1 |
|
| 17 |
8M0227937 |
CABLE
|
1 |
|
| 18 |
NSS |
NOT SOLD SEPARATE Latch
|
1 |
|
| 19 |
88552514 |
SCREW (M6 x 14 MM) Stainless Steel
|
6 |
|
| 2 |
8M0200187 |
DOOR ASSEMBLY Black
|
1 |
|
| 2 |
8M0200188 |
DOOR ASSEMBLY Cold Fusion
|
1 |
|
| 2 |
8M0200189 |
DOOR ASSEMBLY Warm Fusion
|
1 |
|
| 2 |
8M0200190 |
DOOR ASSEMBLY Pearl Fusion
|
1 |
|
| 20 |
8M0142903 |
CLIP
|
8 |
|
| 21 |
892233 |
NUT (M6) Stainless Steel
|
2 |
|
| 22 |
8M0142954 |
CLIP
|
1 |
|
| 23 |
8M0142955 |
SCREW (M5 x 0.8)
|
1 |
|
| 24 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
10 |
|
| 25 |
8M0232581 |
LATCH ASSEMBLY
|
1 |
|
| 26 |
8M0200205 |
ALIGNMENT LEG
|
4 |
|
| 27 |
8M0178589 |
SCREW M6 x 12
|
8 |
|
| 28 |
8M0142918 |
SCREW (M5 x 12)
|
4 |
|
| 29 |
8M0200206 |
BUMPER ASSEMBLY
|
2 |
|
| 3 |
8M0205392 |
SCREW M3 x 6
|
1 |
|
| 30 |
8M0200207 |
SEAL Top Cowl
|
1 |
|
| 31 |
8M0200208 |
SOUND BLANKET KIT
|
1 |
|
| 4 |
8M0205393 |
BUSHING
|
1 |
|
| 5 |
8M0204935 |
PIN
|
1 |
|
| 6 |
8M0200192 |
AXEL Spring
|
1 |
|
| 7 |
8M0200193 |
HINGE Spring
|
1 |
|
| 8 |
8M0200194 |
SPRING
|
1 |
|
| 9 |
8M0200195 |
SHAPER Spring
|
1 |
|
