| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0149551 |
POWERHEAD GASKET SET
|
1 |
|
| 1 |
8M0149576 |

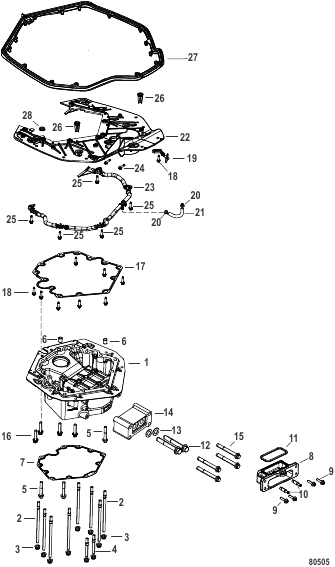

ADAPTER PLATE
|
1 |
|
| 10 |
8M0038205 |
FITTING Straight
|
2 |
|
| 11 |
8M0142745 |
SEAL Upper Mount Bracket
|
1 |
|
| 12 |
8M0179996 |
SCREW (M16)
|
2 |
|
| 13 |
8M0179998 |
WASHER (31.7 mm x 17.38 mm x 1.6 mm)
|
2 |
|
| 14 |
8M0237815 |
MOUNT Upper, Solid
|
1 |
|
| 15 |
8M0149600 |
SCREW (M10 x 1.5 x 80)
|
4 |
|
| 16 |
8M0103823 |
SCREW (M10 x 45 Hex Flange)
|
4 |
|
| 17 |
8M0205773 |
GASKET Adapter Plate Adapter Plate to Cylinder Block
|
1 |
|
| 18 |
8M0142708 |
SCREW (M6)
|
9 |
|
| 19 |
8M0142748 |
FITTING Tell Tale
|
1 |
|
| 2 |
8M0142744 |
STUD (M10 x 185)
|
8 |
|
| 20 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 21 |
8M0238010 |
HOSE Strainer to FSM In
|
1 |
|
| 22 |
8M0142707 |
PLATE Adapter
|
1 |
|
| 23 |
8M0146171 |
HOSE ASSEMBLY Sprayer
|
1 |
|
| 24 |
88552535 |
SCREW (M6 x 35 MM) Stainless Steel
|
2 |
|
| 25 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
5 |
|
| 26 |
8M0142710 |
DRAIN Cowl
|
2 |
|
| 27 |
8M0142917 |
SEAL Adapter Plate
|
1 |
|
| 28 |
8M0058484 |
GROMMET
|
1 |
|
| 3 |
8M0142743 |
NUT (M10 x 1.5)
|
10 |
|
| 4 |
8M0158595 |
STUD (M10)
|
2 |
|
| 5 |
8M0069690 |
SCREW (M10 X 1.5 X 60)
|
3 |
|
| 6 |
821327 |
PIN Dowel
|
4 |
|
| 7 |
8M0142275 |
GASKET Adapter Plate to Driveshaft Housing
|
1 |
|
| 8 |
8M0239528 |
BRACKET Mount Retainer Steering Arm
|
1 |
|
| 9 |
8M0231451 |
SCREW M8 x 30 HEX FLG
|
4 |
|
