| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0244421 |

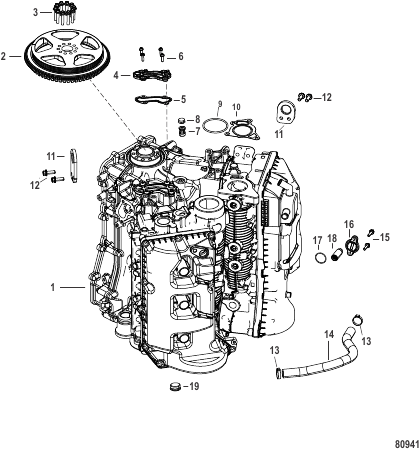

LONG BLOCK ASSEMBLY
|
1 |
|
| 10 |
8M0142537 |
GASKET Exhaust Manifold
|
1 |
|
| 11 |
8M0200019 |
LIFTING EYE Starboard
|
1 |
|
| 11 |
8M0204957 |
LIFTING EYE Port
|
1 |
|
| 12 |
8M0200018 |
SCREW M10 x 30 HEX FLG HD
|
4 |
|
| 13 |
855228 |
CLAMP
|
2 |
|
| 14 |
8M0142472 |
HOSE Port to Starboard Breather
|
1 |
|
| 15 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
2 |
|
| 16 |
8M0064752 |
END CAP Cam Tensioner
|
1 |
|
| 17 |
8M0237361 |
O-RING
|
1 |
|
| 18 |
8M0231253 |
TENSIONER ASSEMBLY Timing Chain
|
1 |
|
| 19 |
8M0087454 |
PLUG (30 MM)
|
1 |
|
| 2 |
8M0142244 |
FLYWHEEL
|
1 |
|
| 3 |
8M0142384 |
SCREW (M8 x 42) Hx Flg Head
|
10 |
|
| 4 |
8M0142349 |
COVER Cylinder Block
|
1 |
|
| 5 |
8M0142348 |
GASKET Cover Plate
|
1 |
|
| 6 |
8M0080651 |
SCREW (M6 x 20)
|
4 |
|
| 7 |
8M0142352 |
PLUG 18 MM
|
1 |
|
| 8 |
8M0142353 |
O-RING (0.614 x 0.070)
|
1 |
|
| 9 |
8M0142368 |
O-RING (230 2.484 x .139)
|
1 |
|
