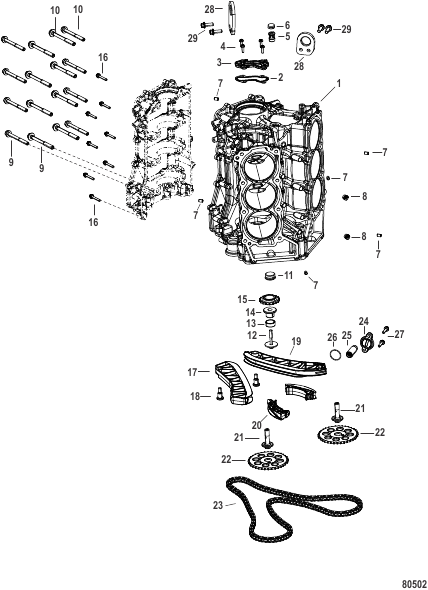

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0207456 |
LIFTING EYE SET
|
1 |
|
| - |
8M0142278 |
LONG BLOCK
|
1 |
|
| - |
8M0142971 |
GASKET SET Powerhead
|
1 |
|
| 1 |
8M0208897 |
CYLINDER BLOCK ASSEMBLY
|
1 |
|
| 10 |
8M0142346 |
SCREW (M11 x 107 MM) 12 POINT HEX HEAD
|
8 |
|
| 11 |
8M0087454 |
PLUG (30 MM)
|
1 |
|
| 12 |
8M0142398 |
SCREW (M8 x 45) HEX FL
|
1 |
|
| 13 |
8M0142397 |
BUSHING Idler
|
1 |
|
| 14 |
8M0142396 |
IDLER Journal
|
1 |
|
| 15 |
8M0142391 |
SPROCKET Idler
|
1 |
|
| 16 |
8M0103809 |
SCREW (M6 x 40 mm) Stainless Steel
|
8 |
|
| 17 |
8M0142393 |
GUIDE Cam Drive
|
1 |
|
| 18 |
8M0086569 |
SCREW Shoulder (M8 x 1.25)
|
2 |
|
| 19 |
8M0142392 |
GUIDE Moveable
|
1 |
|
| 2 |
8M0142348 |
GASKET Cover Plate
|
1 |
|
| 20 |
8M0142400 |
GUIDE SHORT SPAN
|
2 |
|
| 21 |
8M0142395 |
CAM BOLT M12 Special Left Hand
|
2 |
|
| 22 |
8M0142390 |
SPROCKET Camshaft
|
2 |
|
| 23 |
8M0142399 |
CHAIN CAM DRIVE
|
1 |
|
| 24 |
8M0064752 |
END CAP Cam Tensioner
|
1 |
|
| 25 |
8M0231253 |
TENSIONER ASSEMBLY Timing Chain
|
1 |
|
| 26 |
8M0237361 |
O-RING
|
1 |
|
| 27 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
2 |
|
| 28 |
8M0200019 |
LIFTING EYE Starboard
|
1 |
|
| 28 |
8M0204957 |
LIFTING EYE Port
|
1 |
|
| 29 |
8M0200018 |
SCREW M10 x 30 HEX FLG HD
|
4 |
|
| 3 |
8M0142349 |
COVER Cylinder Block
|
1 |
|
| 4 |
8M0080651 |
SCREW (M6 x 20)
|
4 |
|
| 5 |
8M0142352 |
PLUG 18 MM
|
1 |
|
| 6 |
8M0142353 |
O-RING (0.614 x 0.070)
|
1 |
|
| 7 |
893540 |
PIN Dowel, 8x12 long
|
6 |
|
| 8 |
8M0087447 |
PLUG (10MM)
|
2 |
|
| 9 |
8M0168893 |
SCREW M10 x 96
|
8 |
|
