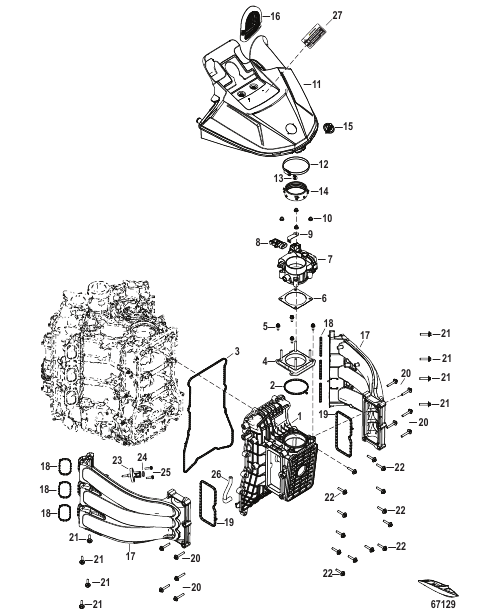

| # | Part Number | Description | Qty | Status |
|---|
| - |
892317001 |
O-RING
|
1 |
|
| 1 |
8M0240947 |
COVER Bedplate
|
1 |
|
| 10 |
8M0227376 |
NUT (M6)
|
4 |
|
| 11 |
8M0142246 |
AIR INLET ASSEMBLY
|
1 |
|
| 12 |
8M0142571 |
CLAMP (70-90 MM) 9 MM WIDE
|
1 |
|
| 13 |
8M0074363 |
CAP
|
1 |
|
| 14 |
8M0146102 |
SEAL Throttle Body
|
1 |
|
| 15 |
8M0080154 |
DECAL M-ICON, Blue
|
1 |
|
| 16 |
8M0147749 |
INTAKE SCREEN
|
1 |
|
| 17 |
8M0240942 |
MANIFOLD Intake, Port
|
1 |
|
| 17 |
8M0240946 |
MANIFOLD Intake, Starboard
|
1 |
|
| 18 |
8M0231118 |
GASKET Intake Manifold
|
3 |
|
| 19 |
8M0240943 |
GASKET Runner to Plenum
|
1 |
|
| 2 |
8M0142564 |
GASKET Throttle Body
|
1 |
|
| 20 |
8M0142553 |
SCREW (M6 x 37)
|
10 |
|
| 21 |
8M0142554 |
SCREW (M6 x 30)
|
8 |
|
| 22 |
8M0142555 |
SCREW (M6 x 30)
|
14 |
|
| 23 |
891663001 |
SENSOR Temperature Intake Air
|
1 |
|
| 24 |
8M0142578 |
GASKET MAT Sensor
|
1 |
|
| 25 |
895054 |
SCREW (M4 x 16 MM)
|
2 |
|
| 26 |
8M0142566 |
HOSE MAP Sensor
|
1 |
|
| 27 |
8M0142569 |
DECAL Warning
|
1 |
|
| 3 |
8M0142563 |
GASKET Crankcase Cover
|
1 |
|
| 4 |
8M0204943 |
ISOLATOR ASSEMBLY
|
1 |
|
| 5 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
4 |
|
| 6 |
8M0142568 |
GASKET Throttle Body
|
1 |
|
| 7 |
8M0222235 |
THROTTLE BODY ASSEMBLY 64 MM
|
1 |
|
| 8 |
8M0142690 |
SENSOR MAP
|
1 |
|
| 9 |
8M0142550 |
BRACKET MAP Sensor
|
1 |
|
