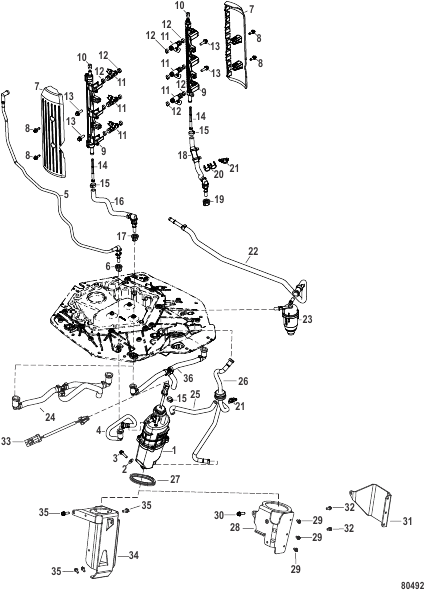

Fuel System
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0161584 |
FUEL SUPPLY MODULE FUEL SUPPLY MODULE |
1 | |
| 10 | 8M0046566 |
ПРОБКА CAP Valve |
2 | |
| 11 | 8M0142264 |
ТОПЛИВНАЯ ФОРСУНКА FUEL INJECTOR |
6 | |
| 12 | 8M0221321 |
ORING KIT Contains 6 Upper and Lower Orings ORING KIT Contains 6 Upper and Lower Orings |
1 | |
| 13 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 14 | 8M0090809 |
ФИЛЬТР SCREEN Fuel Rail |
2 | |
| 15 | 8M0142585 |
ЗАЖИМ CLAMP (16.2 x 7 x .6 MM) |
3 | |
| 16 | 8M0142442 |
ШЛАНГ В СБОРЕ FSM к направляющей левого борта HOSE ASSEMBLY FSM To Port Rail |
1 | |
| 17 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 18 | 8M0142444 |
ШЛАНГ В СБОРЕ FSM к направляющей правого борта HOSE ASSEMBLY FSM To Starboard Rail |
1 | |
| 19 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 2 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
1 | |
| 20 | 8M0142445 |
ЗАЖИМ CLIP |
1 | |
| 21 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
2 | |
| 22 | 8M0142446 |
ШЛАНГ В СБОРЕ Кожух к FSM HOSE ASSEMBLY Cowl to FSM |
1 | |
| 23 | 8M0106635 |
ТОПЛИВНЫЙ ФИЛЬТР Mercury FUEL FILTER Mercury |
1 | |
| 23 | 8M0176313 |
FUEL FILTER Quicksilver FUEL FILTER Quicksilver |
1 | |
| 24 | 8M0237861 |
HOSE ASSEMBLY FSM to Fuel Rail HOSE ASSEMBLY FSM to Fuel Rail |
1 | |
| 25 | 8M0142619 |
РУКАВ Tell Tale to FSM HOSE Tell Tale to FSM |
1 | |
| 26 | 8M0203776 |
HOSE Fuel Filter to Fuel Supply Module HOSE Fuel Filter to Fuel Supply Module |
1 | |
| 27 | 8M0037209 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Фиксатор FSM GROMMET FSM Retainer |
1 | |
| 28 | 8M0237858 |
BRACKET Fuel Supply Module Mount BRACKET Fuel Supply Module Mount |
1 | |
| 29 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
3 | |
| 3 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
1 | |
| 30 | 88552620 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
1 | |
| 31 | 8M0237860 |
BRACKET Fuel Supply Module Guard BRACKET Fuel Supply Module Guard |
1 | |
| 32 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 33 | 8M0237807 |
HARNESS Fuel Supply Module Extension HARNESS Fuel Supply Module Extension |
1 | |
| 34 | 8M0237811 |
BRACKET Fuel Supply Module Mount ROS Models BRACKET Fuel Supply Module Mount ROS Models |
1 | |
| 35 | 88552620 |
ВИНТ (M8 x 20) ROS Models SCREW (M8 x 20) ROS Models |
4 | |
| 36 | 8M0149578 |
HOSE ASSEMBLY FSM Fuel Out ROS Models HOSE ASSEMBLY FSM Fuel Out ROS Models |
1 | |
| 4 | 8M0237864 |
HOSE Manifold Reference Lower HOSE Manifold Reference Lower |
1 | |
| 4 | 8M0231308 |
HOSE Manifold Reference Lower ROS Models HOSE Manifold Reference Lower ROS Models |
1 | |
| 5 | 8M0203775 |
HOSE Manifold Reference, Upper HOSE Manifold Reference, Upper |
1 | |
| 6 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 7 | 8M0142604 |
КРЫШКА Топливная направляющая, левый борт COVER Fuel Rail, Port |
1 | |
| 7 | 8M0142605 |
КРЫШКА Топливная направляющая, правый борт COVER Fuel Rail, Starboard |
1 | |
| 8 | 8M0005773 |
ВИНТ (M6) SCREW (M6 x 14) Shoulder HEX FLG SS |
4 | |
| 9 | 8M0219775 |
FUEL RAIL ASSEMBLY Port FUEL RAIL ASSEMBLY Port |
1 | |
| 9 | 8M0219770 |
FUEL RAIL ASSEMBLY Starboard FUEL RAIL ASSEMBLY Starboard |
1 |
