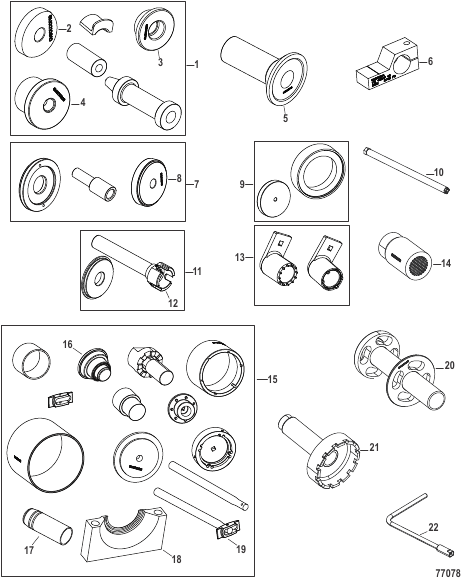

Tools Gearcase
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0215032 |
TOOL SET Gearcase TOOL SET Gearcase |
1 | |
| - | 8M0214606 |
TOOL Upper Mount Orientation TOOL Upper Mount Orientation |
1 | |
| - | 8M0214607 |
TOOL Lower Mount Orientation TOOL Lower Mount Orientation |
1 | |
| - | 8M0235704 |
TOOL SLEEVE INSTALLATION PTO TOOL SLEEVE INSTALLATION PTO |
1 | |
| - | 8M0235705 |
TOOL INSTALL WEAR SLEEVE TOOL INSTALL WEAR SLEEVE |
1 | |
| - | 8M0235706 |
TOOL INSTALL WEAR SLEEVE TOOL INSTALL WEAR SLEEVE |
1 | |
| - | 8M0235707 |
INSTALL WEAR SLEEVE INSTALL WEAR SLEEVE |
1 | |
| 1 | 8M0210608 |
TOOL Pinion Bearing Install TOOL Pinion Bearing Install |
1 | |
| 10 | 8M0210615 |
SHIFT SHAFT BUSHING TOOL SHIFT SHAFT BUSHING TOOL |
1 | |
| 11 | 8M0210617 |
PINION NUT TOOL PINION NUT TOOL |
1 | |
| 12 | 8M0210618 |
PINION NUT WRENCH PINION NUT WRENCH |
1 | |
| 13 | 8M0210616 |
TOOL Bearing Retainer TOOL Bearing Retainer |
1 | |
| 14 | 8M0210619 |
TOOL Driveshaft Spline Coupler TOOL Driveshaft Spline Coupler |
1 | |
| 15 | 8M0210621 |
TOOL Bearing Carrier Install TOOL Bearing Carrier Install |
1 | |
| 16 | 8M0210622 |
TOOL Bearing Carrier Driver TOOL Bearing Carrier Driver |
1 | |
| 17 | 8M0215037 |
PROPSHAFT PROTECTOR PROPSHAFT PROTECTOR |
1 | |
| 18 | 8M0215035 |
TOOL Front Bearing Removal TOOL Front Bearing Removal |
1 | |
| 19 | 8M0215036 |
TOOL Gear and Bearing Press TOOL Gear and Bearing Press |
1 | |
| 2 | 8M0210610 |
TOOL GUIDE Pinion Bearing TOOL GUIDE Pinion Bearing |
1 | |
| 20 | 8M0210620 |
TOOL Shim Pinion Bearing TOOL Shim Pinion Bearing |
1 | |
| 21 | 8M0210623 |
RETAINER NUT TOOL RETAINER NUT TOOL |
1 | |
| 22 | 8M0142973 |
ИНСТРУМЕНТ ДЛЯ РУКОЯТКИ ВАЛА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT SHAFT HANDLE TOOL |
1 | |
| 3 | 8M0215033 |
TOOL Pinion Bearing Removal TOOL Pinion Bearing Removal |
1 | |
| 4 | 8M0210609 |
PILOT TOOL Pinion Bearing PILOT TOOL Pinion Bearing |
1 | |
| 5 | 8M0210611 |
UPPER DRIVESHAFT INSTALL Bearing Cone Press UPPER DRIVESHAFT INSTALL Bearing Cone Press |
1 | |
| 6 | 8M0210614 |
TOOL Backlash Indicator TOOL Backlash Indicator |
1 | |
| 7 | 8M0210612 |
FRONT BEARING INSTALL FRONT BEARING INSTALL |
1 | |
| 8 | 8M0210613 |
BEARING CUP DRIVER BEARING CUP DRIVER |
1 | |
| 9 | 8M0215034 |
TOOL Front Gear Assembly TOOL Front Gear Assembly |
1 |
