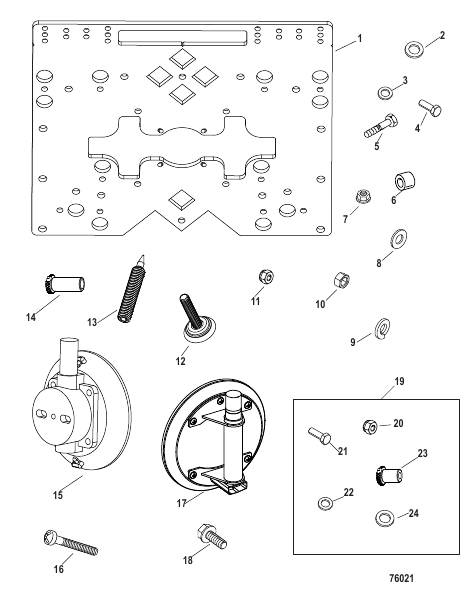

Tools Drill Fixture
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0210331 |
DRILL FIXTURE KIT DRILL FIXTURE KIT |
1 | |
| 1 | 8M0210335 |
BASE PLATE Drill BASE PLATE Drill |
1 | |
| 10 | 8M0204668 |
NUT (.312-18) NUT (.312-18) |
8 | |
| 11 | 8267088 |
ГАЙКА (0.250-20) NUT (.250-20) |
6 | |
| 12 | 8M0210337 |
MOUNT FEET Leveling Pack of 4 MOUNT FEET Leveling Pack of 4 |
1 | |
| 13 | 8M0180736 |
POINTER Centerline POINTER Centerline |
2 | |
| 14 | 8M0210336 |
BUSHING Drill - 1/2 in. BUSHING Drill - 1/2 in. |
6 | |
| 15 | 8M0210332 |
SUCTION CUP KIT SUCTION CUP KIT |
AR | |
| 16 | 90926 |
ВИНТ (№10-32 x 0.810) SCREW (#10-32 x .810) |
4 | |
| 17 | 8M0210333 |
SUCTION CUP KIT HD SUCTION CUP KIT HD |
AR | |
| 18 | 8M0150040 |
SCREW 1/4-20 x .62 SCREW 1/4-20 x .62 |
4 | |
| 19 | 8M0210334 |
DRILL FIXTURE KICKER KIT DRILL FIXTURE KICKER KIT |
AR | |
| 2 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
6 | |
| 20 | 8267086 |
ГАЙКА (№10-32) NUT (#10-32) |
6 | |
| 21 | 28667 |
ВИНТ (0.250-20 x 1.00), нержавеющая сталь SCREW (.250-20 x 1.00) Stainless Steel |
6 | |
| 22 | 20583 |
ШАЙБА WASHER |
24 | |
| 23 | 8M0210338 |
BUSHING Drill - 3/8 in. BUSHING Drill - 3/8 in. |
6 | |
| 24 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
6 | |
| 3 | 20583 |
ШАЙБА WASHER |
16 | |
| 4 | 28667 |
ВИНТ (0.250-20 x 1.00), нержавеющая сталь SCREW (.250-20 x 1.00) Stainless Steel |
4 | |
| 5 | 35049 |
ВИНТ (0.250-20 x 2.75) SCREW (.250-20 x 2.75) |
2 | |
| 6 | 1128345 |
SPACER .26 x .50 x .45 SPACER .26 x .50 x .45 |
8 | |
| 7 | 4002030 |
ГАЙКА (M8) NUT (M8) |
4 | |
| 8 | 8M0204690 |
WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel |
10 | |
| 9 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) LOCKWASHER (.312-24) |
4 |
