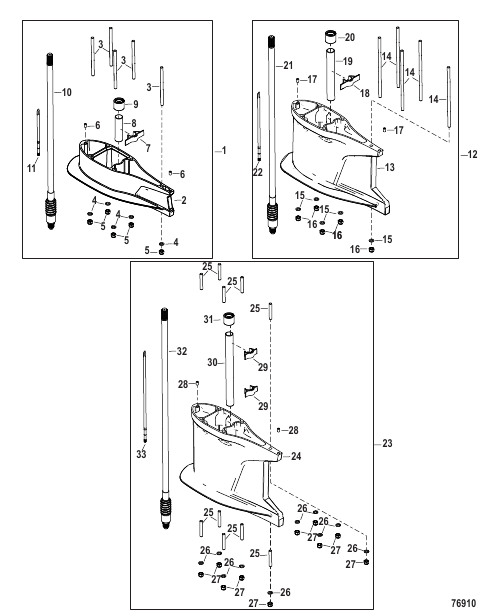

Driveshaft Extension Kits
Parts (58)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0206004 |
SHIM SET 2.008 x 2.208 x (.010 - .030) SHIM SET 2.008 x 2.208 x (.010 - .030) |
1 | |
| - | 8M0200122 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| - | 8M0206005 |
SHIM SET 2.385 x 2.525 x (.010 - .030) SHIM SET 2.385 x 2.525 x (.010 - .030) |
1 | |
| - | 8M0200124 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| - | 8M0234131 |
OIL SEAL CARRIER KIT OIL SEAL CARRIER KIT |
1 | |
| - | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| - | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| - | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| - | 8M0206004 |
SHIM SET 2.008 x 2.208 x (.010 - .030) SHIM SET 2.008 x 2.208 x (.010 - .030) |
1 | |
| - | 8M0200122 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| - | 8M0206005 |
SHIM SET 2.385 x 2.525 x (.010 - .030) SHIM SET 2.385 x 2.525 x (.010 - .030) |
1 | |
| - | 8M0200124 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| - | 8M0234131 |
OIL SEAL CARRIER KIT OIL SEAL CARRIER KIT |
1 | |
| - | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| - | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| - | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| - | 8M0206004 |
SHIM SET 2.008 x 2.208 x (.010 - .030) SHIM SET 2.008 x 2.208 x (.010 - .030) |
1 | |
| - | 8M0200122 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| - | 8M0206005 |
SHIM SET 2.385 x 2.525 x (.010 - .030) SHIM SET 2.385 x 2.525 x (.010 - .030) |
1 | |
| - | 8M0200124 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| - | 8M0234131 |
OIL SEAL CARRIER KIT OIL SEAL CARRIER KIT |
1 | |
| - | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| - | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| - | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| - | 8M0205684 |
BEARING BEARING |
1 | |
| 1 | 8M0236418 |
5 INCH SPACER KIT X-Long 5 INCH SPACER KIT X-Long |
1 | |
| 10 | 8M0200128 |
DRIVESHAFT XLong DRIVESHAFT XLong |
1 | |
| 11 | 8M0200133 |
SHIFT SHAFT XLong SHIFT SHAFT XLong |
1 | |
| 12 | 8M0230290 |
10 INCH SPACER KIT XX-Long 10 INCH SPACER KIT XX-Long |
1 | |
| 13 | 8M0230291 |
SPACER Driveshaft, 10 Inch SPACER Driveshaft, 10 Inch |
1 | |
| 14 | 8M0200082 |
STUD (M12 x 1.75 x 336) STUD (M12 x 1.75 x 336) |
5 | |
| 15 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
5 | |
| 16 | 897926 |
ГАЙКА (M12), нейлоновая вставка NUT (M12), Nylon Insert |
5 | |
| 17 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 18 | 8M0200169 |
GUIDE Water Tube GUIDE Water Tube |
1 | |
| 19 | 8M0200173 |
EXTENSION Water Tube EXTENSION Water Tube |
1 | |
| 2 | 8M0235692 |
SPACER Driveshaft, 5 Inch SPACER Driveshaft, 5 Inch |
1 | |
| 20 | 8M0200171 |
COUPLING COUPLING |
1 | |
| 21 | 8M0200129 |
DRIVESHAFT XXLong DRIVESHAFT XXLong |
1 | |
| 22 | 8M0200134 |
SHIFT SHAFT XXLong SHIFT SHAFT XXLong |
1 | |
| 23 | 8M0200174 |
15 IN SPACER KIT XXX-Long 15 IN SPACER KIT XXX-Long |
1 | |
| 24 | 8M0227986 |
SPACER Driveshaft, 15 Inch SPACER Driveshaft, 15 Inch |
1 | |
| 25 | 8M0200080 |
STUD (M12 x 1.75 x 82) STUD (M12 x 1.75 x 82) |
10 | |
| 26 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
10 | |
| 27 | 897926 |
ГАЙКА (M12), нейлоновая вставка NUT (M12), Nylon Insert |
10 | |
| 28 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 29 | 8M0200176 |
GUIDE Water Tube GUIDE Water Tube |
2 | |
| 3 | 8M0200081 |
STUD (M12 x 1.75 x 209) STUD (M12 x 1.75 x 209) |
5 | |
| 30 | 8M0200177 |
EXTENSION Water Tube EXTENSION Water Tube |
1 | |
| 31 | 8M0200171 |
COUPLING COUPLING |
1 | |
| 32 | 8M0200130 |
DRIVESHAFT XXXLong DRIVESHAFT XXXLong |
1 | |
| 33 | 8M0200135 |
SHIFT SHAFT XXXLong SHIFT SHAFT XXXLong |
1 | |
| 4 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
5 | |
| 5 | 897926 |
ГАЙКА (M12), нейлоновая вставка NUT (M12), Nylon Insert |
5 | |
| 6 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 7 | 8M0200169 |
GUIDE Water Tube GUIDE Water Tube |
1 | |
| 8 | 8M0200170 |
EXTENSION Water Tube EXTENSION Water Tube |
1 | |
| 9 | 8M0200171 |
COUPLING COUPLING |
1 |
