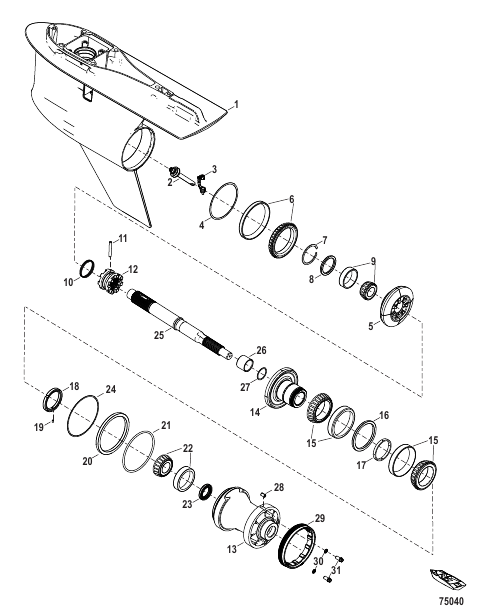

Gear Housing, Prop Shaft - Counter Rotation, 6.44 Torpedo (2.08 Gear Ratio)
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0235766 |
GEAR HOUSING ASSEMBLY Counter Rotation Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation Long, 6.44 |
1 | |
| - | 8M0235765 |
GEAR HOUSING ASSEMBLY Counter Rotation X-Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation X-Long, 6.44 |
1 | |
| - | 8M0235767 |
GEAR HOUSING ASSEMBLY Counter Rotation XX-Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation XX-Long, 6.44 |
1 | |
| - | 8M0235768 |
GEAR HOUSING ASSEMBLY Counter Rotation XXX-Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation XXX-Long, 6.44 |
1 | |
| - | 8M0200149 |
GEAR ASSEMBLY Counter Rotation, 2.08 Gear Ratio GEAR ASSEMBLY Counter Rotation, 2.08 Gear Ratio |
1 | |
| - | 8M0200137 |
SEAL KIT Gearcase SEAL KIT Gearcase |
1 | |
| - | 8M0237499 |
BEARING CARRIER ASSEMBLY Counter Rotation (2.08 Gear Ratio) BEARING CARRIER ASSEMBLY Counter Rotation (2.08 Gear Ratio) |
1 | |
| 1 | 8M0228004 |
GEAR HOUSING ASSEMBLY Basic, Counter GEAR HOUSING ASSEMBLY Basic, Counter |
1 | |
| 10 | 8M0200145 |
SPRING SPRING |
1 | |
| 11 | 8M0200146 |
PIN Cross PIN Cross |
1 | |
| 12 | 8M0200147 |
CLUTCH CLUTCH |
1 | |
| 13 | 8M0237499 |
BEARING CARRIER ASSEMBLY Counter Rotation (2.08 Gear Ratio) BEARING CARRIER ASSEMBLY Counter Rotation (2.08 Gear Ratio) |
1 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Forward Gear 2.08 Gear Ratio NOT SOLD SEPARATE Forward Gear 2.08 Gear Ratio |
1 | |
| 15 | 8M0200161 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
2 | |
| 16 | 8M0200162 |
SPACER Cup SPACER Cup |
1 | |
| 17 | 8M0200163 |
SPACER Cone SPACER Cone |
1 | |
| 18 | 8M0200164 |
NUT Lock, 2.625-16 NUT Lock, 2.625-16 |
1 | |
| 19 | 8M0233826 |
SCREW-HALF DOG POINT SET SCREW-HALF DOG POINT SET |
1 | |
| 2 | 8M0235943 |
SPOOL SPOOL |
1 | |
| 20 | 8M0200150 |
RING Thrust RING Thrust |
1 | |
| 21 | 8M0200151 |
O-RING (5.475 x .210) O-RING (5.475 x .210) |
1 | |
| 22 | 8M0200165 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| 23 | 8M0200154 |
SEAL Oil SEAL Oil |
1 | |
| 24 | 8M0206008 |
SHIM SET 5.64 x 5.895 x (.010 - .030) SHIM SET 5.64 x 5.895 x (.010 - .030) |
1 | |
| 25 | 8M0200155 |
SHAFT Propeller SHAFT Propeller |
1 | |
| 26 | 8M0200156 |
SPACER Thrust SPACER Thrust |
1 | |
| 27 | 8M0206007 |
SHIM SET 1.505 x 1.745 (.014 - .044) SHIM SET 1.505 x 1.745 (.014 - .044) |
1 | |
| 28 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
1 | |
| 29 | 8M0200158 |
RETAINER Bearing Carrier RETAINER Bearing Carrier |
1 | |
| 3 | 8M0220880 |
CRANK, Shifter 1/4 Pivot Pin CRANK, Shifter 1/4 Pivot Pin |
1 | |
| 30 | 8M0204693 |
SEAL Drain Plug SEAL Drain Plug |
2 | |
| 31 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 4 | 8M0206006 |
SHIM SET 4.879 x 5.279 x (.010 - .030) SHIM SET 4.879 x 5.279 x (.010 - .030) |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Reverse Gear 2.08 Gear Ratio NOT SOLD SEPARATE Reverse Gear 2.08 Gear Ratio |
1 | |
| 6 | 8M0200141 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 | |
| 7 | 8M0200142 |
RETAINING Ring RETAINING Ring |
1 | |
| 8 | 8M0200143 |
WASHER Thrust WASHER Thrust |
1 | |
| 9 | 8M0200144 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 |
