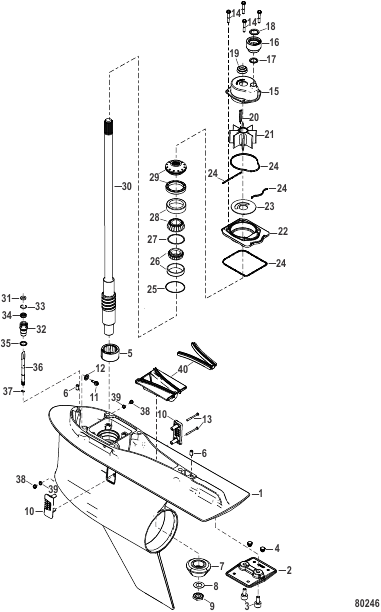

Gear Housing, Driveshaft, 6.44 Torpedo (2.08 Gear Ratio)
Parts (62)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0235761 |
GEAR HOUSING ASSEMBLY Standard Long, 6.44 GEAR HOUSING ASSEMBLY Standard Long, 6.44 |
1 | |
| - | 8M0235762 |
GEAR HOUSING ASSEMBLY Standard X-Long, 6.44 GEAR HOUSING ASSEMBLY Standard X-Long, 6.44 |
1 | |
| - | 8M0235763 |
GEAR HOUSING ASSEMBLY Standard XX-Long, 6.44 GEAR HOUSING ASSEMBLY Standard XX-Long, 6.44 |
1 | |
| - | 8M0235764 |
GEAR HOUSING ASSEMBLY Standard XXX-Long, 6.44 GEAR HOUSING ASSEMBLY Standard XXX-Long, 6.44 |
1 | |
| - | 8M0235766 |
GEAR HOUSING ASSEMBLY Counter Rotation Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation Long, 6.44 |
1 | |
| - | 8M0235765 |
GEAR HOUSING ASSEMBLY Counter Rotation X-Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation X-Long, 6.44 |
1 | |
| - | 8M0235767 |
GEAR HOUSING ASSEMBLY Counter Rotation XX-Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation XX-Long, 6.44 |
1 | |
| - | 8M0235768 |
GEAR HOUSING ASSEMBLY Counter Rotation XXX-Long, 6.44 GEAR HOUSING ASSEMBLY Counter Rotation XXX-Long, 6.44 |
1 | |
| - | 8M0200104 |
GEAR ASSEMBLY Standard Rotation, 2.08 Gear Ratio GEAR ASSEMBLY Standard Rotation, 2.08 Gear Ratio |
1 | |
| - | 8M0200149 |
GEAR ASSEMBLY Counter Rotation, 2.08 Gear Ratio GEAR ASSEMBLY Counter Rotation, 2.08 Gear Ratio |
1 | |
| - | 8M0200136 |
IMPELLER REPAIR KIT Water Pump IMPELLER REPAIR KIT Water Pump |
1 | |
| - | 8M0200137 |
SEAL KIT Gearcase SEAL KIT Gearcase |
1 | |
| - | 8M0237499 |
BEARING CARRIER ASSEMBLY Counter Rotation (2.08 Gear Ratio) BEARING CARRIER ASSEMBLY Counter Rotation (2.08 Gear Ratio) |
1 | |
| 1 | 8M0228003 |
GEAR HOUSING ASSEMBLY Basic, Standard GEAR HOUSING ASSEMBLY Basic, Standard |
1 | |
| 1 | 8M0228004 |
GEAR HOUSING ASSEMBLY Basic, Counter GEAR HOUSING ASSEMBLY Basic, Counter |
1 | |
| 10 | 8M0217539 |
SCREEN SET Port/Starboard SCREEN SET Port/Starboard |
1 | |
| 10 | 8M0215223 |
SCREEN SET Drillable SCREEN SET Drillable |
AR | |
| 11 | 8M0230980 |
SCREW (M6 x 14) Hex Flange B SCREW (M6 x 14) Hex Flange B |
1 | |
| 12 | 8M0050602 |
МАГНИТ MAGNET |
1 | |
| 13 | 8M0200110 |
SCREW SCREW |
2 | |
| 14 | 8M0103809 |
ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel |
4 | |
| 15 | 8M0200111 |
WATER PUMP HOUSING WATER PUMP HOUSING |
1 | |
| 16 | 8M0200112 |
COUPLING Water Pump COUPLING Water Pump |
1 | |
| 17 | 8M0204645 |
O-RING (.796 x .139) O-RING (.796 x .139) |
1 | |
| 18 | 8M0200181 |
O-RING 1.296 x .139 O-RING 1.296 x .139 |
1 | |
| 19 | 8M0200113 |
FACE SEAL FACE SEAL |
1 | |
| 2 | 8M0137814 |
АНОД ПРОТИВОВЕНТИЛЯЦИОННАЯ ПЛАСТИНА ANODE Antivent Plate (Aluminum) |
1 | |
| 20 | 8M0200114 |
KEY Impeller KEY Impeller |
1 | |
| 21 | 8M0200115 |
IMPELLER Water Pump IMPELLER Water Pump |
1 | |
| 22 | 8M0200117 |
COVER Housing COVER Housing |
1 | |
| 23 | 8M0200116 |
FACEPLATE FACEPLATE |
1 | |
| 24 | 8M0200118 |
SEAL KIT Plate SEAL KIT Plate |
1 | |
| 25 | 8M0206004 |
SHIM SET 2.008 x 2.208 x (.010 - .030) SHIM SET 2.008 x 2.208 x (.010 - .030) |
1 | |
| 26 | 8M0200122 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| 27 | 8M0206005 |
SHIM SET 2.385 x 2.525 x (.010 - .030) SHIM SET 2.385 x 2.525 x (.010 - .030) |
1 | |
| 28 | 8M0200124 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| 29 | 8M0234131 |
OIL SEAL CARRIER KIT OIL SEAL CARRIER KIT |
1 | |
| 3 | 8M0142850 |
ВИНТ (M10 X 25) SCREW (M10 X 25) |
2 | |
| 30 | 8M0200127 |
DRIVESHAFT Long DRIVESHAFT Long |
1 | |
| 30 | 8M0200128 |
DRIVESHAFT XLong DRIVESHAFT XLong |
1 | |
| 30 | 8M0200129 |
DRIVESHAFT XXLong DRIVESHAFT XXLong |
1 | |
| 30 | 8M0200130 |
DRIVESHAFT XXXLong DRIVESHAFT XXXLong |
1 | |
| 31 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 32 | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| 33 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 34 | 8M0204708 |
SEAL Oil SEAL Oil |
1 | |
| 35 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 36 | 8M0200132 |
SHIFT SHAFT Long SHIFT SHAFT Long |
1 | |
| 36 | 8M0200133 |
SHIFT SHAFT XLong SHIFT SHAFT XLong |
1 | |
| 36 | 8M0200134 |
SHIFT SHAFT XXLong SHIFT SHAFT XXLong |
1 | |
| 36 | 8M0200135 |
SHIFT SHAFT XXXLong SHIFT SHAFT XXXLong |
1 | |
| 37 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 38 | 8M0177436 |
SCREW (.375 x16) SCREW (.375 x16) |
2 | |
| 39 | 8M0204693 |
SEAL Drain Plug SEAL Drain Plug |
2 | |
| 4 | 8M0142878 |
ПРОБКА Винт PLUG Screw |
2 | |
| 40 | 8M0204808 |
MUFFLER Lower Exhaust MUFFLER Lower Exhaust |
1 | |
| 40 | 8M0208493 |
PLUG Exhaust For Non-JPO Models PLUG Exhaust For Non-JPO Models |
1 | |
| 5 | 8M0200108 |
BEARING Roller BEARING Roller |
1 | |
| 6 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pinion 13 Tooth NOT SOLD SEPARATE Pinion 13 Tooth |
1 | |
| 8 | 8M0200105 |
WASHER (1.400 x .770) WASHER (1.400 x .770) |
1 | |
| 9 | 8M0200106 |
NUT (.750-16) NUT (.750-16) |
1 |
