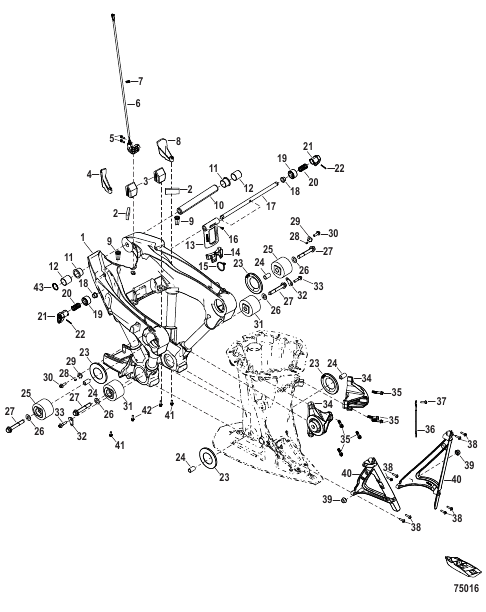

Mount Cradle
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0200063 |
FRAME Cradle Mount FRAME Cradle Mount |
1 | |
| 10 | 8M0228705 |
TILT PIN TILT PIN |
1 | |
| 11 | 8M0161423 |
BEARING SHOULDER BEARING SHOULDER |
2 | |
| 12 | 8M0180025 |
BEARING BEARING |
2 | |
| 13 | 8M0109693 |
КРОНШТЕЙН Штифт запирания наклона BRACKET Tilt Lock |
1 | |
| 14 | 8M0076907 |
НАКЛАДКА Штифт запирания наклона PAD Tilt Lock |
1 | |
| 15 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 16 | 889546 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
1 | |
| 17 | 880650003 |
ВАЛ Штифт запирания наклона SHAFT Tilt Lock |
1 | |
| 18 | 8806641 |
ПОДШИПНИК (0.625") BEARING (.625 Inch) |
2 | |
| 19 | 889540A03 |
КОМПЛЕКТ МУФТ СЦЕПЛЕНИЯ CLUTCH KIT |
2 | |
| 2 | 8M0147892 |
ПОДСТАВКА ИЗ ПЕНОМАТЕРИАЛА FOAM CRADLE |
2 | |
| 20 | 47968 |
ПРУЖИНА SPRING |
2 | |
| 21 | 880649002 |
РЫЧАГ Штифт запирания наклона LEVER Tilt Lock |
2 | |
| 22 | 73194 |
ШТИФТ Ролик (0.125 x 1.12) PIN Roll (.125 x 1.12) |
2 | |
| 23 | 8M0142778 |
ШАЙБА Амортизатор опоры WASHER Mount Snubber |
4 | |
| 24 | 8M0220467 |
PIN Dowel PIN Dowel |
4 | |
| 25 | 8M0200067 |
MOUNT Upper MOUNT Upper |
2 | |
| 26 | 8M0224254 |
WASHER (28.4 MM x 1.6 MM) WASHER (28.4 MM x 1.6 MM) |
4 | |
| 27 | 8M0230597 |
SCREW M14 x 2 x 85 HX FLG Head SCREW M14 x 2 x 85 HX FLG Head |
4 | |
| 28 | 8M0200069 |
PIN Roll PIN Roll |
2 | |
| 29 | 8M0161417 |
WASHER Mount WASHER Mount |
2 | |
| 3 | 8M0200064 |
BUMPER BUMPER |
2 | |
| 30 | 8M0151155 |
ВИНТ Нейлоновый, вталкиваемый SCREW Nylon Push In |
2 | |
| 31 | 8M0200070 |
MOUNT Engine MOUNT Engine |
2 | |
| 32 | 8M0142816 |
ШАЙБА Крепление WASHER Mount |
2 | |
| 33 | 4010735 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
2 | |
| 34 | 8M0205786 |
BRACKET Mount Support BRACKET Mount Support |
2 | superseded |
| 35 | 8M0211309 |
SCREW M10 x 1.5 x 40 HEX FLG HD SCREW M10 x 1.5 x 40 HEX FLG HD |
6 | |
| 36 | 8M0200071 |
CABLE ASSEMBLY CABLE ASSEMBLY |
1 | |
| 37 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 38 | 8M0142822 |
ВИНТ (M6 x T30) SCREW (M6 x T30) |
8 | |
| 39 | 8M0142713 |
ПРОБКА Опора захвата CAP Chap Support |
2 | |
| 4 | 8M0200065 |
INSERT Seal Port INSERT Seal Port |
1 | |
| 40 | 8M0200072 |
COVER Bracket COVER Bracket |
1 | |
| 41 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
2 | |
| 42 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 43 | 8M0038931 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 5 | 40011107 |
ВИНТ (M5 x 16), нержавеющая сталь SCREW (M5 x 16) Stainless Steel |
2 | |
| 6 | 8M0161231 |
SENSOR Trim Position SENSOR Trim Position |
1 | |
| 7 | 8M0214940 |
TIE STRAP TIE STRAP |
1 | |
| 8 | 8M0200066 |
INSERT Seal Starboard INSERT Seal Starboard |
1 | |
| 9 | 8M0142710 |
СЛИВ Кожух DRAIN Cowl |
2 |
