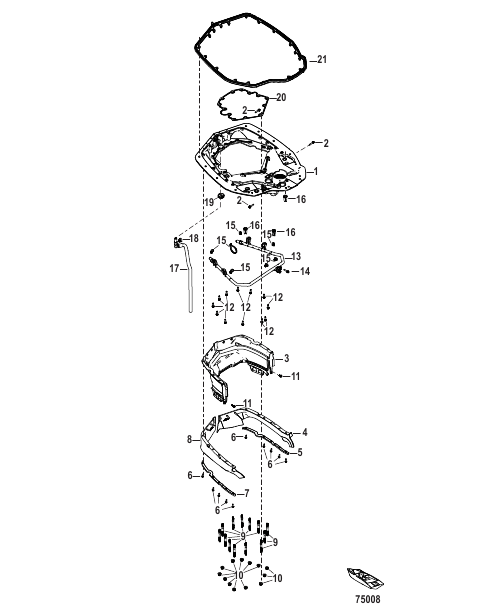

Adapter Plate
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0200003 |
GASKET SET Powerhead GASKET SET Powerhead |
1 | |
| 1 | 8M0200042 |
CHAP PLATE CHAP PLATE |
1 | |
| 10 | 8M0142743 |
ГАЙКА (M10 x 1.5) NUT (M10 x 1.5) |
13 | |
| 11 | 8M0151155 |
ВИНТ Нейлоновый, вталкиваемый SCREW Nylon Push In |
2 | |
| 12 | 8M0142708 |
ВИНТ (M6) SCREW (M6) |
12 | |
| 13 | 8M0200046 |
SPRAYER ASSEMBLY SPRAYER ASSEMBLY |
1 | |
| 14 | 4010620 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
1 | |
| 15 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
7 | |
| 16 | 8M0142710 |
СЛИВ Кожух DRAIN Cowl |
3 | |
| 17 | 8M0200047 |
HOSE Closed Cooling to Mid Bearing Assembly HOSE Closed Cooling to Mid Bearing Assembly |
1 | |
| 18 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 19 | 8M0200048 |
GROMMET Wire Seal GROMMET Wire Seal |
1 | |
| 2 | 8M0103808 |
ВИНТ (M6 x 30 ММ), нержавеющая сталь SCREW (M6 x 30 mm) Stainless Steel |
3 | |
| 20 | 8M0205773 |
GASKET Adapter Plate GASKET Adapter Plate |
1 | |
| 21 | 8M0199895 |
SEAL Adapter Plate SEAL Adapter Plate |
1 | |
| 3 | 8M0200043 |
SOUND BLOCK SOUND BLOCK |
1 | |
| 4 | 8M0200044 |
SEAL Lower Cowl Starboard SEAL Lower Cowl Starboard |
1 | |
| 5 | 8M0142754 |
ПЛАСТИНА Нижний кожух – левый борт PLATE Lower Cowl-Starboard |
1 | |
| 6 | 8M0161407 |
SCREW (M5 X 18) SCREW (M5 X 18) |
10 | |
| 7 | 8M0142753 |
ПЛАСТИНА Нижний кожух – правый борт PLATE Lower Cowl-Port |
1 | |
| 8 | 8M0200045 |
SEAL Lower Cowl Port SEAL Lower Cowl Port |
1 | |
| 9 | 8M0158595 |
STUD (M10) STUD (M10) |
13 |
