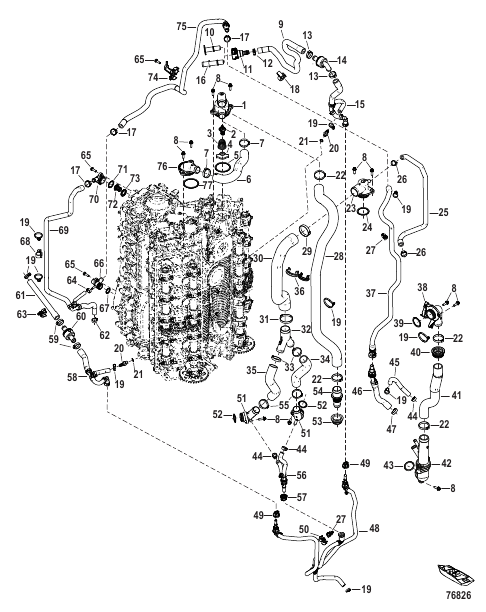

Cooling System
Parts (81)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0192183 |
FLUSH FITTING KIT FLUSH FITTING KIT |
1 | |
| - | 8M0203874 |
LONG BLOCK LONG BLOCK |
1 | |
| - | 8M0200003 |
GASKET SET Powerhead GASKET SET Powerhead |
1 | |
| 1 | 8M0228544 |
THERMOSTAT ASSEMBLY THERMOSTAT ASSEMBLY |
1 | |
| 10 | 8M0192182 |
PLUG Flush Out PLUG Flush Out |
1 | |
| 11 | 8M0215873 |
FITTING Quick Connect FITTING Quick Connect |
1 | |
| 12 | 848764 |
ЗАЖИМ (21 мм) CLAMP (21 mm) |
1 | |
| 13 | 855228 |
ЗАЖИМ CLAMP |
2 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Valve-Flushing NOT SOLD SEPARATE Valve-Flushing |
1 | |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose NOT SOLD SEPARATE Hose |
1 | |
| 16 | 8M0192180 |
FITTING 1/2" to 5/8" FITTING 1/2" to 5/8" |
1 | |
| 16 | 8M0192181 |
FITTING 5/8" to 5/8" FITTING 5/8" to 5/8" |
1 | |
| 17 | 848764 |
ЗАЖИМ (21 мм) CLAMP (21 mm) |
3 | |
| 18 | 8M0180032 |
CLIP Double Hose CLIP Double Hose |
1 | |
| 19 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
10 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Thermostat (60 Degree C) NOT SOLD SEPARATE Thermostat (60 Degree C) |
1 | |
| 20 | 8M0203912 |
FITTING M10 x 1.5 FITTING M10 x 1.5 |
2 | |
| 21 | 8M0142523 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (В.Д. 8,1 ММ X 1,6 ММ) O-RING (8.1 MM ID X 1.6MM) |
2 | |
| 22 | 888988011 |
ЗАЖИМ (38,1 ММ) CLAMP (38.1 MM) |
4 | |
| 23 | 8M0205190 |
FITTING FITTING |
1 | |
| 24 | 11165 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 25 | 8M0205192 |
HOSE Sprayer HOSE Sprayer |
1 | |
| 26 | 848763 |
ЗАЖИМ (19.8 мм) CLAMP (19.8 mm) |
2 | |
| 27 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
2 | |
| 28 | 8M0205193 |
HOSE Dump HOSE Dump |
1 | |
| 29 | 8M0141781 |
ЗАЖИМ (44) CLAMP (44) |
1 | |
| 3 | 8M0177702 |
SPRING Thermostat SPRING Thermostat |
1 | |
| 30 | 8M0205194 |
HOSE ASSEMBLY Water Exhaust Outlet HOSE ASSEMBLY Water Exhaust Outlet |
1 | |
| 31 | 8M6001459 |
ЗАЖИМ (45.5) CLAMP (45.5) |
1 | |
| 32 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Inlet Fitting NOT SOLD SEPARATE Inlet Fitting |
1 | |
| 33 | 8M0143696 |
CLAMP CLAMP |
2 | |
| 34 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose-Water Inlet Port NOT SOLD SEPARATE Hose-Water Inlet Port |
1 | |
| 35 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose-Water Inlet Starboard NOT SOLD SEPARATE Hose-Water Inlet Starboard |
1 | |
| 36 | 8M0218897 |
CLIP Hose CLIP Hose |
1 | |
| 37 | 8M0205199 |
HOSE ASSEMBLY Upper Closed Cooling Inlet HOSE ASSEMBLY Upper Closed Cooling Inlet |
1 | |
| 38 | 8M0205200 |
FITTING Water Inlet FITTING Water Inlet |
1 | |
| 39 | 8M0200181 |
O-RING 1.296 x .139 O-RING 1.296 x .139 |
1 | |
| 4 | 8M0177703 |
RETAINER Thermostat RETAINER Thermostat |
1 | |
| 40 | 8M0205201 |
GROMMET Water Inlet GROMMET Water Inlet |
1 | |
| 41 | 8M0205202 |
HOSE Water Inlet HOSE Water Inlet |
1 | |
| 42 | 8M0207806 |
STRAINER ASSEMBLY Inline STRAINER ASSEMBLY Inline |
1 | |
| 43 | 86614 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.049 x 0.103) O-RING (1.049 x .103) |
1 | |
| 44 | 8M0204696 |
CLAMP CLAMP |
3 | |
| 45 | 8M0205203 |
HOSE Fuel Supply Module Inlet HOSE Fuel Supply Module Inlet |
1 | |
| 46 | 8M0205204 |
HOSE Strainer to Fuel Supply Module HOSE Strainer to Fuel Supply Module |
1 | |
| 47 | 888988019 |
ЗАЖИМ (22.6 мм) CLAMP (22.6 mm) |
1 | |
| 48 | 8M0142654 |
РУКАВ Water Drain HOSE Water Drain |
1 | |
| 49 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | |
| 5 | 8M0214923 |
O-RING (1.98 x 1.39) O-RING (1.98 x 1.39) |
1 | |
| 50 | 888523001 |
ЗАЖИМ CLIP |
1 | |
| 51 | 8M0205205 |
FITTING Water In FITTING Water In |
2 | |
| 52 | 86614 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.049 x 0.103) O-RING (1.049 x .103) |
2 | |
| 53 | 8M0142501 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 54 | 8M0205206 |
FITTING Dump Hose FITTING Dump Hose |
1 | |
| 55 | 8M0187145 |
CLAMP CLAMP |
2 | |
| 56 | 8M0142518 |
ШЛАНГ В СБОРЕ Head Drain HOSE ASSEMBLY Head Drain |
1 | |
| 57 | 884546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 58 | 8M0205208 |
HOSE ASSEMBLY Block Drain Port HOSE ASSEMBLY Block Drain Port |
1 | |
| 59 | 855228 |
ЗАЖИМ CLAMP |
2 | |
| 6 | 8M0205187 |
HOSE Crossover HOSE Crossover |
1 | |
| 60 | 8M0205209 |
VALVE Flushing VALVE Flushing |
1 | |
| 61 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose NOT SOLD SEPARATE Hose |
1 | |
| 62 | 8M0157397 |
ЗАЖИМ Oetiker, 17,5 CLAMP Oetiker, 17.5 |
1 | |
| 63 | 8M0205210 |
CLIP 2 Hose CLIP 2 Hose |
1 | |
| 64 | 888988023 |
ЗАЖИМ CLAMP |
1 | |
| 65 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
3 | |
| 66 | 8M0205211 |
FITTING FITTING |
1 | |
| 67 | 38101 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.674 x 0.103) O-RING (.674 x .103) |
1 | |
| 68 | 8M0240951 |
CLIP Hose CLIP Hose |
1 | |
| 69 | 8M0205213 |
HOSE ASSEMBLY Cooler Out HOSE ASSEMBLY Cooler Out |
1 | |
| 7 | 8M0143696 |
CLAMP CLAMP |
2 | |
| 70 | 8M0205214 |
FITTING FITTING |
1 | |
| 71 | 8M0204650 |
O-RING O-RING |
1 | |
| 72 | 8M0223832 |
THERMOSTAT 120 Degree THERMOSTAT 120 Degree |
1 | |
| 73 | 8M0188252 |
GASKET Thermostat GASKET Thermostat |
1 | |
| 74 | 8M0205216 |
CLIP Flush Hose CLIP Flush Hose |
1 | |
| 75 | 8M0205217 |
HOSE ASSEMBLY Lower Closed Cooling Inlet HOSE ASSEMBLY Lower Closed Cooling Inlet |
1 | |
| 76 | 8M0205218 |
FITTING FITTING |
1 | |
| 77 | 8M0214923 |
O-RING (1.98 x 1.39) O-RING (1.98 x 1.39) |
1 | |
| 8 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
11 | |
| 9 | 8M0205188 |
HOSE ASSEMBLY Engine Flush HOSE ASSEMBLY Engine Flush |
1 |
