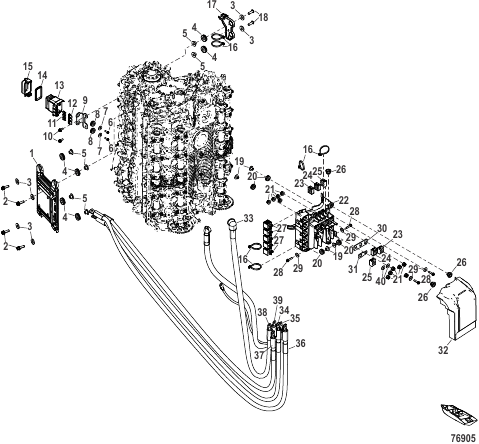

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0171478 |
CABLE Battery Isolator CABLE Battery Isolator |
1 | |
| - | 8M0207043 |
HARNESS Isolator (48 Volt) HARNESS Isolator (48 Volt) |
1 | |
| - | 8M0227901 |
HARNESS Trim Relay HARNESS Trim Relay |
1 | |
| 1 | 8M0238163 |
PCM 425 HP PCM 425 HP |
1 | |
| 10 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 11 | 8M0207797 |
FUSE Mini Gray 2 Ampere FUSE Mini Gray 2 Ampere |
AR | |
| 11 | 832969T05 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – коричневый – 5 A FUSE Mini - Tan - 5 Ampere |
AR | |
| 11 | 83296910 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – красный – 10 A FUSE Mini - Red - 10 Ampere |
AR | |
| 11 | 832969T15 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – синий – 15 A FUSE Mini - Blue - 15 Ampere |
AR | |
| 11 | 832969T20 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – желтый – 20 A FUSE Mini - Yellow - 20 Ampere |
AR | |
| 12 | 8M0047886 |
HOLDER Spare Fuse HOLDER Spare Fuse |
3 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Mount-Fuse Block NOT SOLD SEPARATE Mount-Fuse Block |
1 | |
| 14 | 8M0147903 |
УПЛОТНЕНИЕ Блок предохранителей SEAL Fuse Box |
1 | |
| 15 | 8M0199922 |
COVER Fuse Block COVER Fuse Block |
1 | |
| 16 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
6 | |
| 17 | 8M0199923 |
BRACKET Ten Pin BRACKET Ten Pin |
1 | |
| 18 | 8M0199924 |
SCREW M8 x 25 TRUSS HEAD SCREW M8 x 25 TRUSS HEAD |
2 | |
| 19 | 822003 |
ВТУЛКА BUSHING |
4 | |
| 2 | 8M0219598 |
SCREW M8 x 25 HEX FLG SCREW M8 x 25 HEX FLG |
4 | |
| 20 | 8349851 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 21 | 8M0179913 |
NUT (M8) NUT (M8) |
11 | |
| 22 | 8M0218464 |
PLATE Rigging PLATE Rigging |
1 | |
| 23 | 8M0129535 |
FUSE BLOCK 80 Amp - Lime FUSE BLOCK 80 Amp - Lime |
2 | |
| 24 | 8M0207455 |
FUSE BLOCK 40 AMP FUSE BLOCK 40 AMP |
2 | |
| 25 | 8M0174088 |
FUSE BLOCK 175 AMP FUSE BLOCK 175 AMP |
2 | |
| 26 | 8M0096302 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | |
| 27 | 8M0219829 |
CUBE RELAY CUBE RELAY |
5 | |
| 28 | 8M0142686 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
4 | |
| 29 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
4 | |
| 3 | 4002318 |
ШАЙБА WASHER 8.90 x 24.0x 2.4 PL SS |
6 | |
| 30 | 8M0179328 |
BAR Buss BAR Buss |
1 | |
| 31 | 8M0179329 |
LINK FUSE LINK FUSE |
1 | |
| 32 | 8M0199927 |
COVER Rigging Plate COVER Rigging Plate |
1 | |
| 33 | 8M0179338 |
BOOT Alternator BOOT Alternator |
1 | |
| 34 | 8M0199930 |
HARNESS Hot Stud to Alternator HARNESS Hot Stud to Alternator |
1 | |
| 35 | 8M0199929 |
HARNESS Ground HARNESS Ground |
1 | |
| 36 | 8M0149414 |
CABLE KIT Battery CABLE KIT Battery |
1 | |
| 37 | 8M0149415 |
CABLE Engine to Hot Stud (12ft) Negative CABLE Engine to Hot Stud (12ft) Negative |
1 | |
| 38 | 8M0149416 |
CABLE Engine to Hot Stud (12ft) Positive CABLE Engine to Hot Stud (12ft) Positive |
1 | |
| 39 | 8M0199931 |
HARNESS Hot Stud to Starter HARNESS Hot Stud to Starter |
1 | |
| 4 | 833155 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
6 | |
| 40 | 8M0214963 |
WASHER Located between plate and terminal WASHER Located between plate and terminal |
2 | |
| 5 | 8M0199920 |
BUSHING BUSHING |
6 | |
| 6 | 878609 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
2 | |
| 7 | 42118 |
ШАЙБА WASHER |
2 | |
| 8 | 8M0190980 |
GROMMET GROMMET |
2 | |
| 9 | 8M0199921 |
BRACKET Fuse Block BRACKET Fuse Block |
1 |
