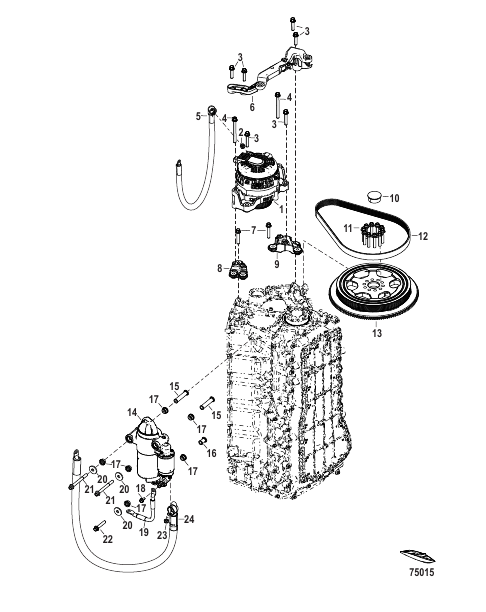

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0149414 |
CABLE KIT Battery
|
1 |
|
| - |
8M0149415 |
CABLE Engine to Hot Stud (12ft) Negative
|
1 |
|
| - |
8M0149416 |
CABLE Engine to Hot Stud (12ft) Positive
|
1 |
|
| - |
8M0203874 |
LONG BLOCK
|
1 |
|
| 1 |
8M0199636 |
ALTERNATOR 150 Amp (12 Volt)
|
1 |
|
| 1 |
8M0237502 |
ALTERNATOR 100 Amp (48 Volt)
|
1 |
|
| 10 |
8M0207687 |
PLUG Flywheel
|
1 |
|
| 11 |
8M0142384 |
SCREW (M8 x 42) Hx Flg Head
|
10 |
|
| 12 |
8M0178243 |
BELT ACCESSORY 6 Rib (12 Volt)
|
1 |
|
| 12 |
8M0207416 |
BELT ACCESSORY 6 Rib (48 Volt)
|
1 |
|
| 13 |
8M0237467 |
FLYWHEEL
|
1 |
|
| 14 |
8M0199948 |
STARTER ASSEMBLY
|
1 |
|
| 15 |
8M0070369 |
SPACER (8.3 I.D. X 11.8 O.D.)
|
2 |
|
| 16 |
8M0070368 |
SPACER (8.3 I.D. X 11.8 O.D.)
|
1 |
|
| 17 |
8M0154659 |
MOUNT TUBULAR 8 MM
|
6 |
|
| 18 |
40011126 |
SCREW (M6 x 13) Stainless Steel
|
1 |
|
| 19 |
8M0199949 |
HARNESS Starter Ground
|
1 |
|
| 2 |
401388 |
NUT (M8) Stainless Steel
|
1 |
|
| 20 |
43430 |
WASHER
|
3 |
|
| 21 |
8M0188530 |
SCREW M8 X 80 HEX FLG HD
|
2 |
|
| 22 |
88552645 |
SCREW (M8X45)
|
1 |
|
| 23 |
401388 |
NUT (M8) Stainless Steel
|
1 |
|
| 24 |
8M0199931 |
HARNESS Hot Stud to Starter
|
1 |
|
| 3 |
8M0142460 |
SCREW (M8 x 45) Hex Flg
|
6 |
|
| 4 |
8M0142677 |
SCREW (M8 x 85)
|
2 |
|
| 5 |
8M0199930 |
HARNESS Hot Stud to Alternator
|
1 |
|
| 6 |
8M0199951 |
BRACKET Oil Dipstick
|
1 |
|
| 7 |
8M0145100 |
SCREW M8 Hex Flange
|
2 |
|
| 8 |
8M0237475 |
BRACKET Alternator (12 Volt) Starboard
|
1 |
|
| 8 |
8M0207414 |
BRACKET Alternator (48 Volt) Starboard
|
1 |
|
| 9 |
8M0237474 |
BRACKET Alternator (12 Volt) Port
|
1 |
|
| 9 |
8M0207415 |
BRACKET Alternator (48 Volt) Port
|
1 |
|
