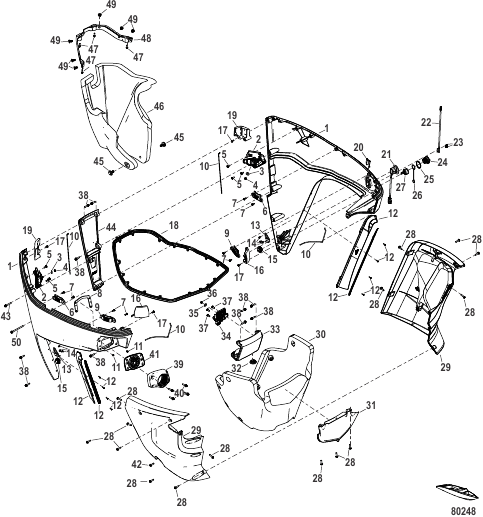

Lower Cowl — Parts Catalog

Parts (69)

#	Part Number	Description	Qty
1	8M0199880	LOWER COWLS Black (Pair) LOWER COWLS Black (Pair)	1
1	8M0199882	LOWER COWLS Cold Fusion (Pair) LOWER COWLS Cold Fusion (Pair)	1
1	8M0199881	LOWER COWLS Warm Fusion (Pair) LOWER COWLS Warm Fusion (Pair)	1
1	8M0199883	LOWER COWLS Pearl Fusion (Pair) LOWER COWLS Pearl Fusion (Pair)	1
10	8M0199887	SEAL Lower Cowl SEAL Lower Cowl	4
11	8M0047718	ВИНТ (M5 x 8MM) SCREW (M5 X 8MM)	2
12	8M0159585	SEAL KIT Lower Front SEAL KIT Lower Front	1
13	8M0199888	BRACKET Bumper Starboard BRACKET Bumper Starboard	1
13	8M0199892	BRACKET Bumper Port BRACKET Bumper Port	1
14	8M0230982	SCREW M6 x 12 SCREW M6 x 12	6
15	8M0199893	BUMPER Lower Cowl BUMPER Lower Cowl	2
16	8M0199908	GUIDE Top Cowl Starboard, Front GUIDE Top Cowl Starboard, Front	1
16	8M0199894	GUIDE Top Cowl Port, Front GUIDE Top Cowl Port, Front	1
17	8M0142918	ВИНТ (M5 x 12) SCREW (M5 x 12)	4
18	8M0199895	SEAL Adapter Plate SEAL Adapter Plate	1
19	8M0199909	GUIDE Top Cowl Starboard, Rear GUIDE Top Cowl Starboard, Rear	1
19	8M0199896	GUIDE Top Cowl Port, Rear GUIDE Top Cowl Port, Rear	1
2	8M0142925	УДАРНИК В СБОРЕ Правый борт STRIKER ASSEMBLY Starboard	1
2	8M0142919	УДАРНИК В СБОРЕ Левый борт STRIKER ASSEMBLY Port	1
20	8M0032848	ФИКСАТОР RETAINER Switch	1
21	8M0235190	TRIM SWITCH Round Bezel TRIM SWITCH Round Bezel	1
22	8M0207419	HARNESS Reed Switch HARNESS Reed Switch	1
23	8M0218347	SCREW M3 x 1.34 x 10 SCREW M3 x 1.34 x 10	2
24	8M0215105	PLUG Flush PLUG Flush	1
25	8M0219168	TETHER Flush Plug TETHER Flush Plug	1
26	8M0224266	SEAL Flush Plug Pocket SEAL Flush Plug Pocket	1
27	8M0205207	FITTING Flush FITTING Flush	1
28	8M0224250	SCREW M6 x 1, T30 Button Head SCREW M6 x 1, T30 Button Head	15
29	8M0199897	CRADLE COVERS Black (Pair) CRADLE COVERS Black (Pair)	1
29	8M0199899	CRADLE COVERS Cold Fusion (Pair) CRADLE COVERS Cold Fusion (Pair)	1
29	8M0199898	CRADLE COVERS Warm Fusion (Pair) CRADLE COVERS Warm Fusion (Pair)	1
29	8M0199900	CRADLE COVERS Pearl Fusion (Pair) CRADLE COVERS Pearl Fusion (Pair)	1
3	8M0214930	WASHER 6.60 x 17.0 x 1.5 WASHER 6.60 x 17.0 x 1.5	1
30	8M0234933	SOUND BLANKET Cradle SOUND BLANKET Cradle	1
31	8M0199902	CRADLE COVER Front CRADLE COVER Front	1
32	8M0142941	РЕЗИНОВАЯ ВТУЛКА GROMMET	1
33	8M0199903	LOWER COWL ASSEMBLY Front Black LOWER COWL ASSEMBLY Front Black	1
33	8M0199905	LOWER COWL ASSEMBLY Front Cold Fusion LOWER COWL ASSEMBLY Front Cold Fusion	1
33	8M0199904	LOWER COWL ASSEMBLY Front Warm Fusion LOWER COWL ASSEMBLY Front Warm Fusion	1
33	8M0199906	LOWER COWL ASSEMBLY Front Pearl Fusion LOWER COWL ASSEMBLY Front Pearl Fusion	1
34	8M0142932	УДАРНИК В СБОРЕ Передний STRIKER ASSEMBLY Front	1
35	8M0214930	WASHER 6.60 x 17.0 x 1.5 WASHER 6.60 x 17.0 x 1.5	1
36	401386	ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel	1
37	8M0142921	ВИНТ (M6 x 16) SCREW (M6 X 16)	3
38	8M0103807	ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel	10
39	8M0199260	INGRESS ADAPTER 2 Inch INGRESS ADAPTER 2 Inch	AR
39	8M0199907	INGRESS ADAPTER 2.5 Inch INGRESS ADAPTER 2.5 Inch	1
4	401386	ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel	1
40	8M0075735	ВИНТ (M6 X 30) шестигр. фланец SCREW (M6 X 30) Hex Flg	4
41	8M0185656	GROMMET Rigging GROMMET Rigging	1
42	8M0200191	SCREW (M6 x 30) SCREW (M6 x 30)	1
43	8M0103809	ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel	1
44	8M0199910	LOWER COWL ASSEMBLY Rear Black LOWER COWL ASSEMBLY Rear Black	1
44	8M0199912	LOWER COWL ASSEMBLY Rear Cold Fusion LOWER COWL ASSEMBLY Rear Cold Fusion	1
44	8M0199911	LOWER COWL ASSEMBLY Rear Warm Fusion LOWER COWL ASSEMBLY Rear Warm Fusion	1
44	8M0199913	LOWER COWL ASSEMBLY Rear Pearl Fusion LOWER COWL ASSEMBLY Rear Pearl Fusion	1
45	8M0199914	PUSH-IN RIVET PUSH-IN RIVET	2
46	8M0199915	SOUND BLANKET Rear SOUND BLANKET Rear	1
47	8M0161407	SCREW (M5 X 18) SCREW (M5 X 18)	4
48	8M0199916	BRACKET Sound Blanket BRACKET Sound Blanket	1
49	8M0199917	PUSH-IN RIVET PUSH-IN RIVET	6
5	8M0142921	ВИНТ (M6 x 16) SCREW (M6 X 16)	6
50	88552585	ВИНТ (M6 x 85 MM), нержавеющая сталь SCREW (M6 x 85 MM) Stainless Steel	1
6	8M0199884	RECEIVER Stabilizer Starboard, Rear RECEIVER Stabilizer Starboard, Rear	1
6	8M0199890	RECEIVER Stabilizer Port, Rear RECEIVER Stabilizer Port, Rear	1
7	8M0142918	ВИНТ (M5 x 12) SCREW (M5 x 12)	8
8	8M0199885	PLATE Mounting PLATE Mounting	1
9	8M0199886	RECEIVER Stabilizer Starboard, Front RECEIVER Stabilizer Starboard, Front	1
9	8M0199891	RECEIVER Stabilizer Port, Front RECEIVER Stabilizer Port, Front	1
