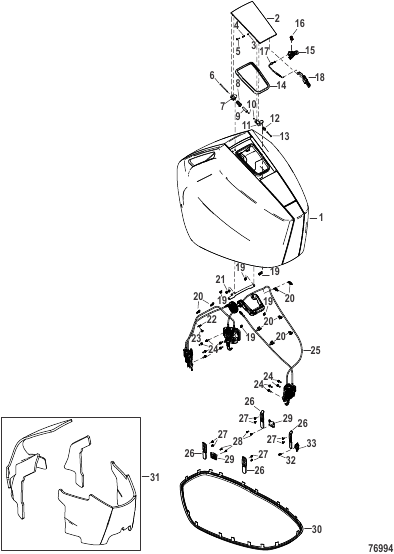

Top Cowl
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0200182 |
TOP COWL ASSEMBLY Black Decaled without horsepower TOP COWL ASSEMBLY Black Decaled without horsepower |
1 | |
| 1 | 8M0200183 |
TOP COWL ASSEMBLY Cold Fusion Decaled without horsepower TOP COWL ASSEMBLY Cold Fusion Decaled without horsepower |
1 | |
| 1 | 8M0200184 |
TOP COWL ASSEMBLY Warm Fusion Decaled without horsepower TOP COWL ASSEMBLY Warm Fusion Decaled without horsepower |
1 | |
| 1 | 8M0200185 |
TOP COWL ASSEMBLY Pearl Fusion Decaled without horsepower TOP COWL ASSEMBLY Pearl Fusion Decaled without horsepower |
1 | |
| 10 | 8M0200197 |
E-CLIP E-CLIP |
2 | |
| 11 | 8M0200198 |
HINGE Damper HINGE Damper |
1 | |
| 12 | 8M0200199 |
DAMPER DAMPER |
1 | |
| 13 | 8M0200200 |
AXEL Damper AXEL Damper |
1 | |
| 14 | 8M0200203 |
SEAL Door SEAL Door |
1 | |
| 15 | 8M0205394 |
BUTTON Actuator BUTTON Actuator |
1 | discontinued |
| 15 | 8M0227736 |
BUTTON Actuator Assembly BUTTON Actuator Assembly |
1 | |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Latch Acutator NOT SOLD SEPARATE Latch Acutator |
1 | |
| 16 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Clip NOT SOLD SEPARATE Clip |
1 | |
| 17 | 8M0227937 |
CABLE CABLE |
1 | |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Latch NOT SOLD SEPARATE Latch |
1 | |
| 19 | 88552514 |
ВИНТ (M6 x 14 мм), нержавеющая сталь SCREW (M6 x 14 MM) Stainless Steel |
6 | |
| 2 | 8M0200187 |
DOOR ASSEMBLY Black DOOR ASSEMBLY Black |
1 | |
| 2 | 8M0200188 |
DOOR ASSEMBLY Cold Fusion DOOR ASSEMBLY Cold Fusion |
1 | |
| 2 | 8M0200189 |
DOOR ASSEMBLY Warm Fusion DOOR ASSEMBLY Warm Fusion |
1 | |
| 2 | 8M0200190 |
DOOR ASSEMBLY Pearl Fusion DOOR ASSEMBLY Pearl Fusion |
1 | |
| 20 | 8M0142903 |
ЗАЖИМ CLIP |
8 | |
| 21 | 892233 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 22 | 8M0142954 |
ЗАЖИМ CLIP |
1 | |
| 23 | 8M0142955 |
ВИНТ (M5 x 0,8) SCREW (M5 x 0.8) |
1 | |
| 24 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
10 | |
| 25 | 8M0232581 |
LATCH ASSEMBLY LATCH ASSEMBLY |
1 | |
| 26 | 8M0200205 |
ALIGNMENT LEG ALIGNMENT LEG |
4 | |
| 27 | 8M0178589 |
SCREW M6 x 12 SCREW M6 x 12 |
8 | |
| 28 | 8M0142918 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
4 | |
| 29 | 8M0200206 |
BUMPER ASSEMBLY BUMPER ASSEMBLY |
2 | |
| 3 | 8M0205392 |
SCREW M3 x 6 SCREW M3 x 6 |
1 | |
| 30 | 8M0200207 |
SEAL Top Cowl SEAL Top Cowl |
1 | |
| 31 | 8M0200208 |
SOUND BLANKET KIT SOUND BLANKET KIT |
1 | |
| 32 | 8M0218346 |
SCREW 48 Volt Models Only SCREW 48 Volt Models Only |
1 | |
| 33 | 8M0207420 |
BRACKET Magnet Assembly 48 Volt Models Only BRACKET Magnet Assembly 48 Volt Models Only |
1 | |
| 4 | 8M0205393 |
BUSHING BUSHING |
1 | |
| 5 | 8M0204935 |
PIN PIN |
1 | |
| 6 | 8M0200192 |
AXEL Spring AXEL Spring |
1 | |
| 7 | 8M0200193 |
HINGE Spring HINGE Spring |
1 | |
| 8 | 8M0200194 |
SPRING SPRING |
1 | |
| 9 | 8M0200195 |
SHAPER Spring SHAPER Spring |
1 |
