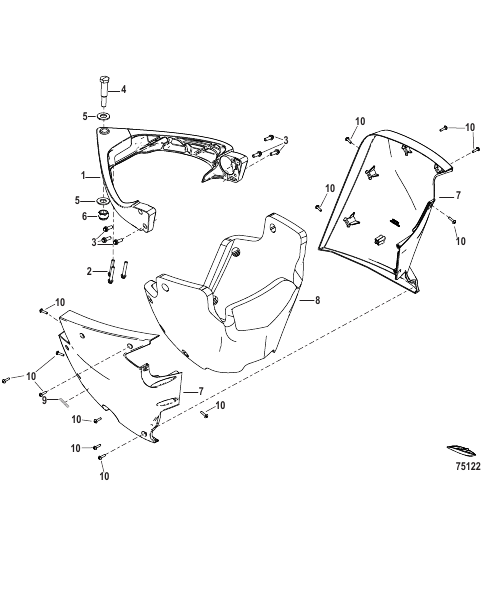

Rear Tie Bar Kit
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0205182 |
TIEBAR ASSEMBLY Black TIEBAR ASSEMBLY Black |
1 | |
| 1 | 8M0205183 |
TIEBAR ASSEMBLY Cold Fusion TIEBAR ASSEMBLY Cold Fusion |
1 | |
| 10 | 8M0142822 |
ВИНТ (M6 x T30) SCREW (M6 x T30) |
14 | |
| 2 | 8M0161438 |
SCREW (M10x1.5x60) SCREW (M10x1.5x60) |
3 | |
| 3 | 8M0161437 |
SCREW (M10x1.5x30) SCREW (M10x1.5x30) |
6 | |
| 4 | 8M0161439 |
BOLT BOLT |
1 | superseded |
| 5 | 844850 |
ШАЙБА (0.660 x 1.310 x 0.09), нержавеющая сталь WASHER (.660 x 1.310 x .09) Stainless Steel |
2 | |
| 6 | 47379 |
ГАЙКА (0.625-18), нержавеющая сталь NUT (.625-18) Stainless Steel |
1 | |
| 7 | 8M0205184 |
CRADLE COVER ASSEMBLY Black CRADLE COVER ASSEMBLY Black |
1 | |
| 7 | 8M0205185 |
CRADLE COVER ASSEMBLY Cold Fusion CRADLE COVER ASSEMBLY Cold Fusion |
1 | |
| 8 | 8M0199901 |
SOUND BLANKET Cradle SOUND BLANKET Cradle |
1 | superseded |
| 9 | 8M0146963 |
НАКЛЕЙКА AMS DECAL AMS |
2 |
