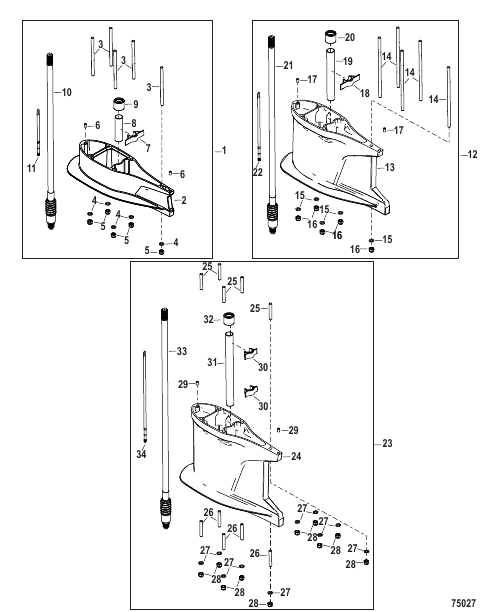

Driveshaft Extension Kits
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0199873 |
SPACER KIT 5 Inch (X-Long) SPACER KIT 5 Inch (X-Long) |
1 | |
| 10 | 8M0199852 |
DRIVESHAFT- DOUBLE BEARING XLong DRIVESHAFT- DOUBLE BEARING XLong |
1 | |
| 11 | 8M0164969 |
SHIFT SHAFT XLong SHIFT SHAFT XLong |
1 | |
| 12 | 8M0199874 |
SPACER KIT 10 Inch (XX-Long) SPACER KIT 10 Inch (XX-Long) |
1 | superseded |
| 13 | 8M0220532 |
SPACER 10 Inch SPACER 10 Inch |
1 | superseded |
| 14 | 8M0142788 |
ШПИЛЬКА (M12 x 306) STUD (M12 x 306) |
5 | |
| 15 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
5 | |
| 16 | 897926 |
ГАЙКА (M12), нейлоновая вставка NUT (M12), Nylon Insert |
5 | |
| 17 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 18 | 8M0200169 |
GUIDE Water Tube GUIDE Water Tube |
1 | |
| 19 | 8M0200173 |
EXTENSION Water Tube EXTENSION Water Tube |
1 | |
| 2 | 8M0220531 |
SPACER 5 Inch SPACER 5 Inch |
1 | superseded |
| 20 | 8M0200171 |
COUPLING COUPLING |
1 | |
| 21 | 8M0199853 |
DRIVESHAFT- DOUBLE BEARING XX-Long DRIVESHAFT- DOUBLE BEARING XX-Long |
1 | |
| 22 | 8M0164970 |
SHIFT SHAFT XX-Long SHIFT SHAFT XX-Long |
1 | |
| 23 | 8M0199875 |
SPACER KIT 15 Inch (XXX-Long) SPACER KIT 15 Inch (XXX-Long) |
1 | |
| 24 | 8M0199926 |
SPACER 15 Inch SPACER 15 Inch |
1 | superseded |
| 25 | 8M0008031 |
ШПИЛЬКА (M12 x 1.75 x 52) STUD (M12 x 1.75 x 52) |
5 | |
| 26 | 8M0200080 |
STUD (M12 x 1.75 x 82) STUD (M12 x 1.75 x 82) |
5 | |
| 27 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
10 | |
| 28 | 897926 |
ГАЙКА (M12), нейлоновая вставка NUT (M12), Nylon Insert |
10 | |
| 29 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 3 | 8M0008047 |
ШПИЛЬКА (M12 x 179) STUD (M12 x 179) |
5 | |
| 30 | 8M0200176 |
GUIDE Water Tube GUIDE Water Tube |
2 | |
| 31 | 8M0200177 |
EXTENSION Water Tube EXTENSION Water Tube |
1 | |
| 32 | 8M0200171 |
COUPLING COUPLING |
1 | |
| 33 | 8M0199854 |
DRIVESHAFT- DOUBLE BEARING XXX-Long DRIVESHAFT- DOUBLE BEARING XXX-Long |
1 | |
| 34 | 8M0199855 |
SHIFT SHAFT XXX-Long SHIFT SHAFT XXX-Long |
1 | |
| 4 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
5 | |
| 5 | 897926 |
ГАЙКА (M12), нейлоновая вставка NUT (M12), Nylon Insert |
5 | |
| 6 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 7 | 8M0200169 |
GUIDE Water Tube GUIDE Water Tube |
1 | |
| 8 | 8M0200170 |
EXTENSION Water Tube EXTENSION Water Tube |
1 | |
| 9 | 8M0200171 |
COUPLING COUPLING |
1 |
