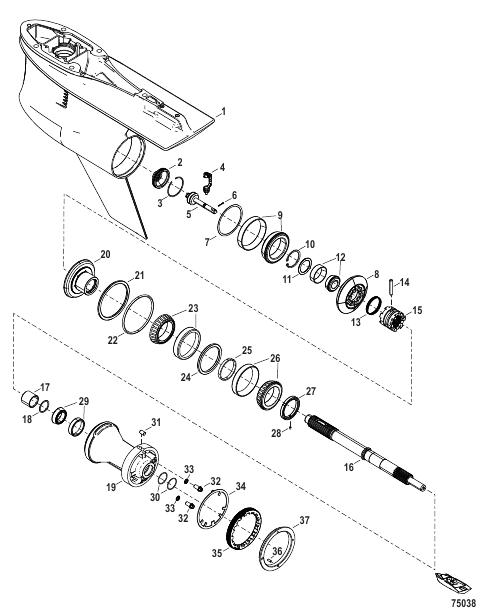

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0199841 |
GEAR HOUSING ASSEMBLY (Counter Rotation Long) 5.44
|
1 |
superseded
|
| - |
8M0199842 |
GEAR HOUSING ASSEMBLY (Counter Rotation X-Long) 5.44
|
1 |
superseded
|
| - |
8M0199843 |
GEAR HOUSING ASSEMBLY (Counter Rotation XX-Long) 5.44
|
1 |
superseded
|
| - |
8M0199844 |
GEAR HOUSING ASSEMBLY (Counter Rotation XXX-Long) 5.44
|
1 |
|
| - |
8M0199857 |
SEAL KIT
|
1 |
|
| 1 |
8M0199871 |
GEAR HOUSING ASSEMBLY Basic Left Camber
|
1 |
|
| 10 |
8M0051043 |
RING Retaining
|
1 |
|
| 11 |
8M0053823 |
WASHER Thrust, (1.50 ID x 2.046 OD)
|
1 |
|
| 12 |
8M0142835 |
BEARING Roller Taper (Cup/Cone)
|
1 |
|
| 13 |
8M0050575 |
SPRING Cross
|
1 |
|
| 14 |
8M0045493 |
PIN Cross
|
1 |
|
| 15 |
8M0142871 |
CLUTCH Sliding 6 Jaw
|
1 |
|
| 16 |
8M0142877 |
SHAFT Propeller
|
1 |
|
| 17 |
8M0064306 |
SPACER Thrust
|
1 |
|
| 18 |
8M0076745 |
SHIM SET
|
1 |
|
| 19 |
8M0191582 |
BEARING CARRIER ASSEMBLY 1.60 Gear Ratio
|
1 |
|
| 2 |
8M0157111 |
PLUG Torpedo
|
1 |
|
| 20 |
8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion
|
1 |
|
| 21 |
8M0161546 |
THRUST RING
|
1 |
|
| 22 |
8M0000190 |
O-RING (4.475 x .210)
|
1 |
|
| 23 |
8M0199861 |
BEARING Roller Taper (Cup/Cone)
|
1 |
|
| 24 |
8M0199862 |
SPACER Bearing Cup
|
1 |
|
| 25 |
8M0199863 |
SPACER
|
1 |
|
| 26 |
8M0199864 |
BEARING Roller Taper (Cup/Cone)
|
1 |
|
| 27 |
8M0064178 |
LOCK NUT
|
1 |
|
| 28 |
8M0066130 |
SCREW- HALF DOG POINT SET
|
1 |
|
| 29 |
8M0148319 |
BEARING Roller Taper Cup/Cone
|
1 |
|
| 3 |
880719 |
RING Retaining
|
1 |
|
| 30 |
888483 |
SEAL Oil
|
1 |
superseded
|
| 31 |
8M0109164 |
PIN 3/8 Dia x .625 LG
|
1 |
|
| 32 |
8M0071653 |
SCREW Special, .375-16 UNC
|
2 |
|
| 33 |
830749 |
SEAL
|
2 |
superseded
|
| 34 |
8M0108527 |
WASHER Tab
|
2 |
|
| 35 |
8M0162798 |
RETAINER Bearing Carrier
|
1 |
|
| 36 |
8M0109164 |
PIN 3/8 Dia x .625 LG
|
1 |
|
| 37 |
8M0180306 |
COVER Torpedo
|
1 |
|
| 4 |
8M0046215 |
CRANK, Shifter 1/4 Pivot Pin
|
1 |
superseded
|
| 5 |
8M0163111 |
SPOOL ASSEMBLY
|
1 |
superseded
|
| 6 |
469501 |
COTTER PIN
|
1 |
|
| 7 |
8M0063270 |
SHIM SET
|
1 |
|
| 8 |
8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion
|
1 |
|
| 9 |
8M0142836 |
BEARING Roller Taper (Cup/Cone)
|
1 |
|
