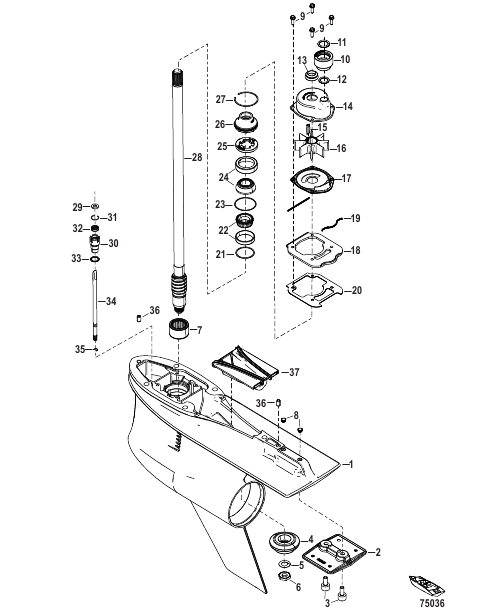

Gear Housing Driveshaft, 5.44 Torpedo (1.60 Gear Ratio)
Parts (55)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0199837 |
GEAR HOUSING ASSEMBLY (Standard Long) 5.44 GEAR HOUSING ASSEMBLY (Standard Long) 5.44 |
1 | superseded |
| - | 8M0199838 |
GEAR HOUSING ASSEMBLY (Standard X-Long) 5.44 GEAR HOUSING ASSEMBLY (Standard X-Long) 5.44 |
1 | superseded |
| - | 8M0199839 |
GEAR HOUSING ASSEMBLY (Standard XX-Long) 5.44 GEAR HOUSING ASSEMBLY (Standard XX-Long) 5.44 |
1 | superseded |
| - | 8M0199840 |
GEAR HOUSING ASSEMBLY (Standard XXX-Long) 5.44 GEAR HOUSING ASSEMBLY (Standard XXX-Long) 5.44 |
1 | superseded |
| - | 8M0199841 |
GEAR HOUSING ASSEMBLY (Counter Rotation Long) 5.44 GEAR HOUSING ASSEMBLY (Counter Rotation Long) 5.44 |
1 | superseded |
| - | 8M0199842 |
GEAR HOUSING ASSEMBLY (Counter Rotation X-Long) 5.44 GEAR HOUSING ASSEMBLY (Counter Rotation X-Long) 5.44 |
1 | superseded |
| - | 8M0199843 |
GEAR HOUSING ASSEMBLY (Counter Rotation XX-Long) 5.44 GEAR HOUSING ASSEMBLY (Counter Rotation XX-Long) 5.44 |
1 | superseded |
| - | 8M0199844 |
GEAR HOUSING ASSEMBLY (Counter Rotation XXX-Long) 5.44 GEAR HOUSING ASSEMBLY (Counter Rotation XXX-Long) 5.44 |
1 | |
| - | 8M0199856 |
IMPELLER REPAIR KIT IMPELLER REPAIR KIT |
1 | |
| - | 8M0199857 |
SEAL KIT SEAL KIT |
1 | |
| 1 | 8M0199845 |
GEAR HOUSING ASSEMBLY Basic Standard Rotation, Right Camber GEAR HOUSING ASSEMBLY Basic Standard Rotation, Right Camber |
1 | |
| 1 | 8M0199871 |
GEAR HOUSING ASSEMBLY Basic Counter Rotation, Left Camber GEAR HOUSING ASSEMBLY Basic Counter Rotation, Left Camber |
1 | |
| 10 | 8M0200112 |
COUPLING Water Pump COUPLING Water Pump |
1 | |
| 11 | 8M0200181 |
O-RING 1.296 x .139 O-RING 1.296 x .139 |
1 | |
| 12 | 21836 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.796 x 0.139) O-RING (.796 x .139) |
1 | superseded |
| 13 | 8M0200113 |
FACE SEAL FACE SEAL |
1 | |
| 14 | 8M0199847 |
HOUSING Water Pump HOUSING Water Pump |
1 | |
| 15 | 8M0032833 |
КЛЮЧ KEY |
1 | superseded |
| 16 | 8M0199848 |
IMPELLER Water Pump IMPELLER Water Pump |
1 | |
| 17 | 8M0199849 |
FACEPLATE FACEPLATE |
1 | superseded |
| 18 | 8M0142659 |
УПЛОТНЕНИЕ SEAL Formed, Actuator |
2 | |
| 19 | 8M0174560 |
COVER Gearcase Housing COVER Gearcase Housing |
1 | |
| 2 | 8M0137814 |
АНОД ПРОТИВОВЕНТИЛЯЦИОННАЯ ПЛАСТИНА ANODE Antivent Plate (Aluminum) |
1 | |
| 20 | 8M0146938 |
ПРОКЛАДКА Основание водяного насоса GASKET Water Pump Base |
1 | |
| 21 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 22 | 8M0146553 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 23 | 8M0063267 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 24 | 8M0146566 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 25 | 8245191 |
ФИКСАТОР RETAINER |
1 | |
| 26 | 8M0199850 |
OIL SEAL CARRIER ASSEMBLY OIL SEAL CARRIER ASSEMBLY |
1 | |
| 27 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 28 | 8M0199851 |
DRIVESHAFT- DOUBLE BEARING Long DRIVESHAFT- DOUBLE BEARING Long |
1 | |
| 28 | 8M0199852 |
DRIVESHAFT- DOUBLE BEARING XLong DRIVESHAFT- DOUBLE BEARING XLong |
1 | |
| 28 | 8M0199853 |
DRIVESHAFT- DOUBLE BEARING XX-Long DRIVESHAFT- DOUBLE BEARING XX-Long |
1 | |
| 28 | 8M0199854 |
DRIVESHAFT- DOUBLE BEARING XXX-Long DRIVESHAFT- DOUBLE BEARING XXX-Long |
1 | |
| 29 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 3 | 8M0142850 |
ВИНТ (M10 X 25) SCREW (M10 X 25) |
2 | |
| 30 | 8M0142859 |
ВТУЛКА Вал переключения передач BUSHING Shift Shaft |
1 | |
| 31 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 32 | 8164641 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 33 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 34 | 8M0164968 |
SHIFT SHAFT Long SHIFT SHAFT Long |
1 | |
| 34 | 8M0164969 |
SHIFT SHAFT XLong SHIFT SHAFT XLong |
1 | |
| 34 | 8M0164970 |
SHIFT SHAFT XX-Long SHIFT SHAFT XX-Long |
1 | |
| 34 | 8M0199855 |
SHIFT SHAFT XXX-Long SHIFT SHAFT XXX-Long |
1 | |
| 35 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 36 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 37 | 8M0188206 |
MUFFLER Lower Exhaust MUFFLER Lower Exhaust |
1 | |
| 4 | 8M0158926 |
GEAR SET 1.60 Rev/Fwd/Pinion Standard GEAR SET 1.60 Rev/Fwd/Pinion Standard |
1 | |
| 4 | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion Counter GEAR SET 1.60 Rev/Fwd/Pinion Counter |
1 | |
| 5 | 8M0062703 |
ШАЙБА WASHER |
1 | |
| 6 | 8M0046636 |
ГАЙКА NUT |
1 | |
| 7 | 8M0045676 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 8 | 8M0142878 |
ПРОБКА Винт PLUG Screw |
2 | |
| 9 | 1993720 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | superseded |
