| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0200077 |

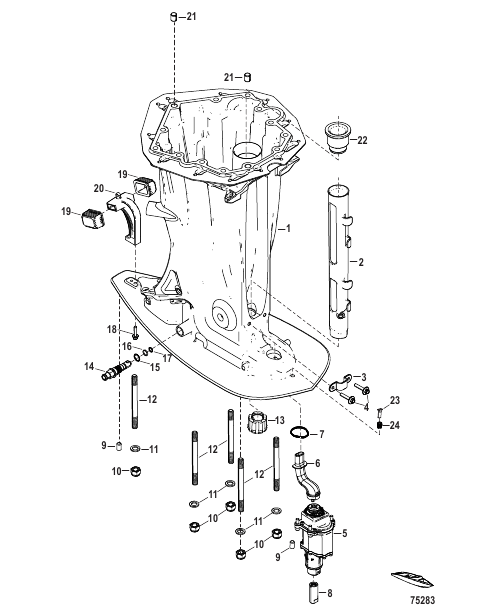

DRIVESHAFT HOUSING
|
1 |
superseded
|
| 10 |
897926 |
NUT (M12), Nylon Insert
|
5 |
|
| 11 |
856982 |
WASHER (.500 x .810 x .090) Stainless Steel
|
5 |
|
| 12 |
8M0008031 |
STUD (M12 x 1.75 x 52) Long
|
5 |
|
| 12 |
8M0008047 |
STUD (M12 x 179) X-Long
|
5 |
|
| 12 |
8M0142788 |
STUD (M12 x 306) XX-Long
|
5 |
|
| 12 |
8M0008031 |
STUD (M12 x 1.75 x 52) XXX-Long
|
5 |
|
| 12 |
8M0199876 |
STUD XXX-Long
|
5 |
|
| 13 |
8M0205684 |
BEARING (XXX-Long ONLY)
|
1 |
|
| 14 |
8M0112869 |
OIL PLUG ASSEMBLY
|
1 |
|
| 15 |
85045 |
O-RING (.551 x .070)
|
1 |
|
| 16 |
863006 |
O-RING (10.82 x 1.78)
|
1 |
|
| 17 |
8M0036228 |
O-RING (8.1 X 1.6)
|
1 |
|
| 18 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
1 |
|
| 19 |
8M0199893 |
BUMPER Lower Cowl
|
2 |
|
| 2 |
8M0200078 |
BRACKET Shift Harness
|
1 |
|
| 20 |
8M0200083 |
BRACKET
|
1 |
|
| 21 |
821327 |
PIN Dowel
|
2 |
|
| 22 |
8M0142785 |
BRACKET Shift Harness
|
1 |
|
| 23 |
859732 |
PLUG
|
1 |
|
| 24 |
8M0142714 |
FITTING
|
1 |
|
| 3 |
8M0200079 |
CLAMP Design I
|
1 |
|
| 3 |
8M0222234 |
CLAMP Design II
|
1 |
|
| 4 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel Design I
|
2 |
|
| 4 |
8M0144417 |
SCREW (M6 x 16) Design II
|
2 |
|
| 5 |
8M0204944 |
SHIFT ACTUATOR
|
1 |
|
| 6 |
8M0147674 |
BOOT Shift Actuator Wires
|
1 |
|
| 7 |
8M0142978 |
SEAL ACTUATOR
|
1 |
|
| 8 |
8M0147857 |
SHAFT Coupling
|
1 |
|
| 9 |
8M0084244 |
PIN Dowel, .375 x .620
|
2 |
|
